Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Des... Type Basic val... Toleranc... Toleranc...

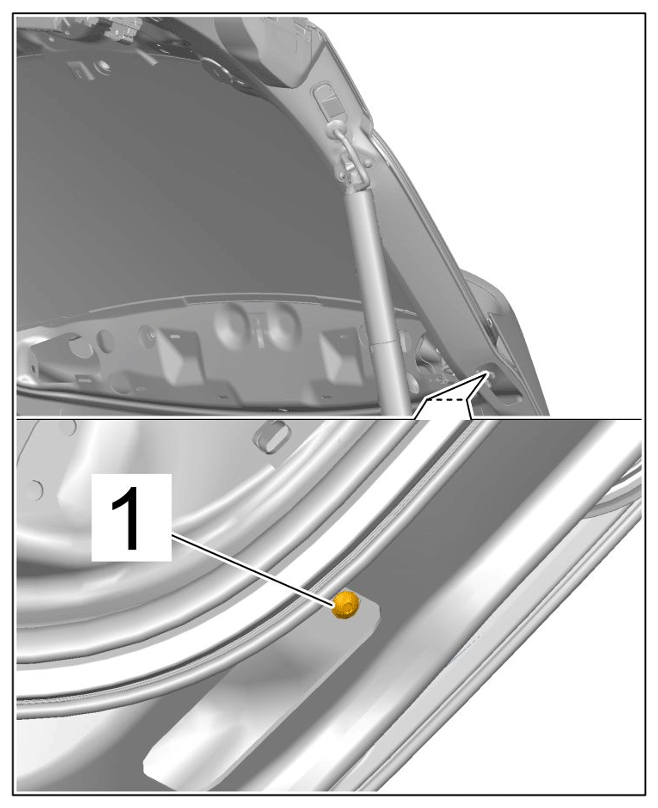

Screws securing rear spoiler to rear lid, side Item 1 Tightening torque 8 Nm (5.9 ftlb.)
G15866285Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

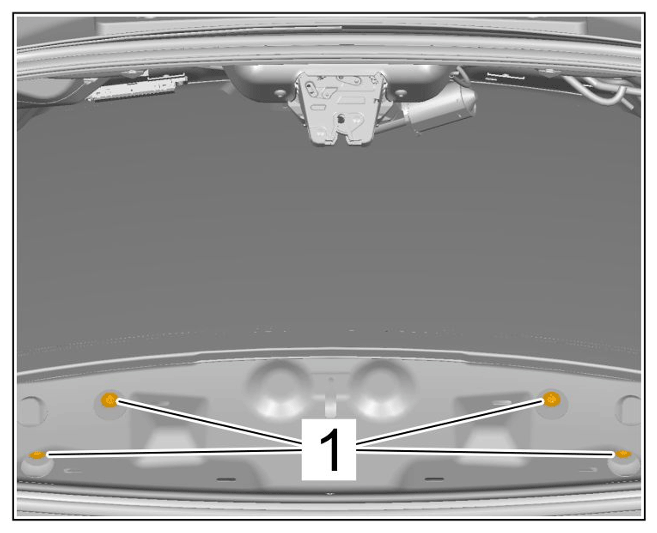

Screws securing rear spoiler to rear lid Item 1 Tightening torque 8 Nm (5.9 ftlb.)
G15866286Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
