Removing Rear Spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

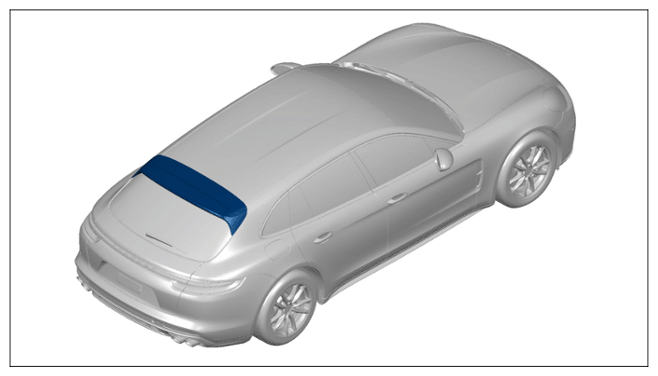

Installation position of rear spoiler

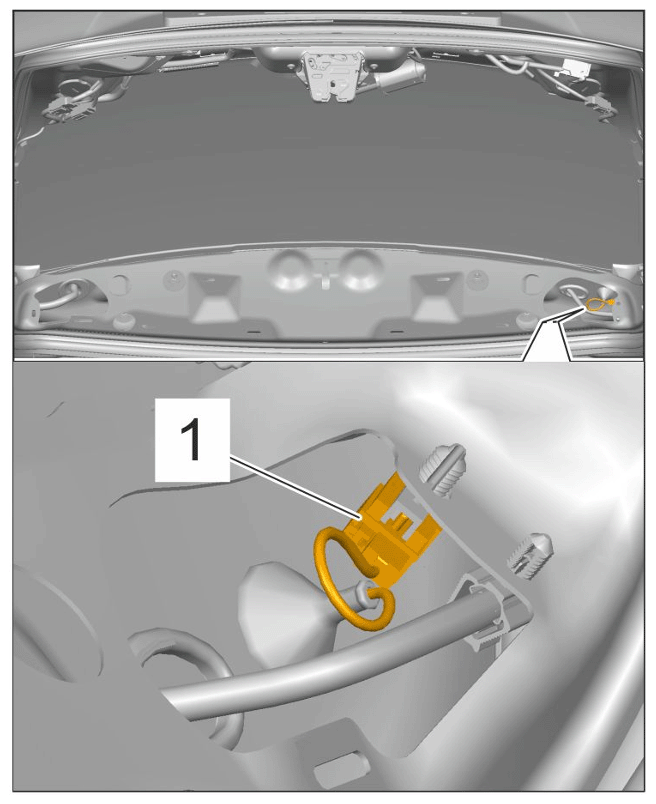

1. Release and disconnect plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plug connection

2. Loosen spray water hose.

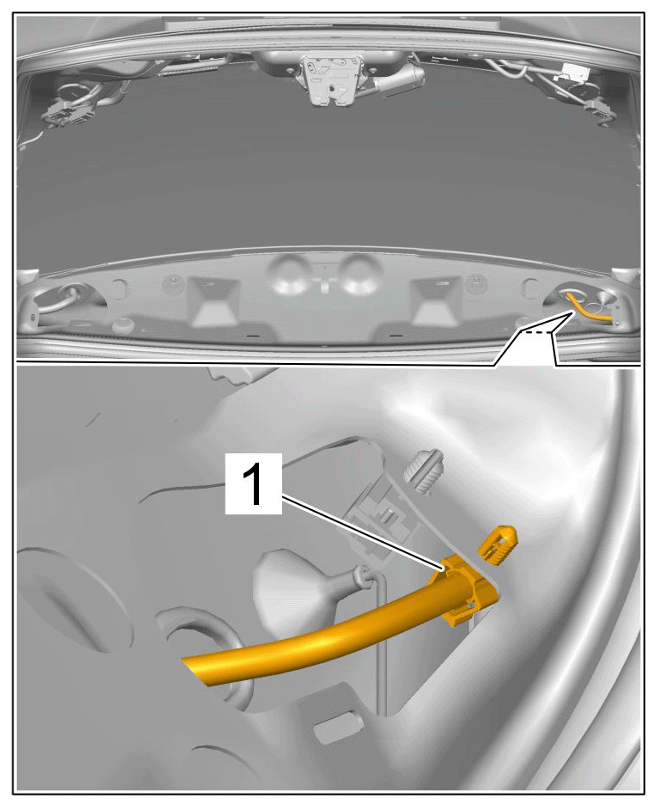

   1. 2.1 Unclip spray water hose -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Spray water hose

   2. 2.2 Release and pull off spray water hose.

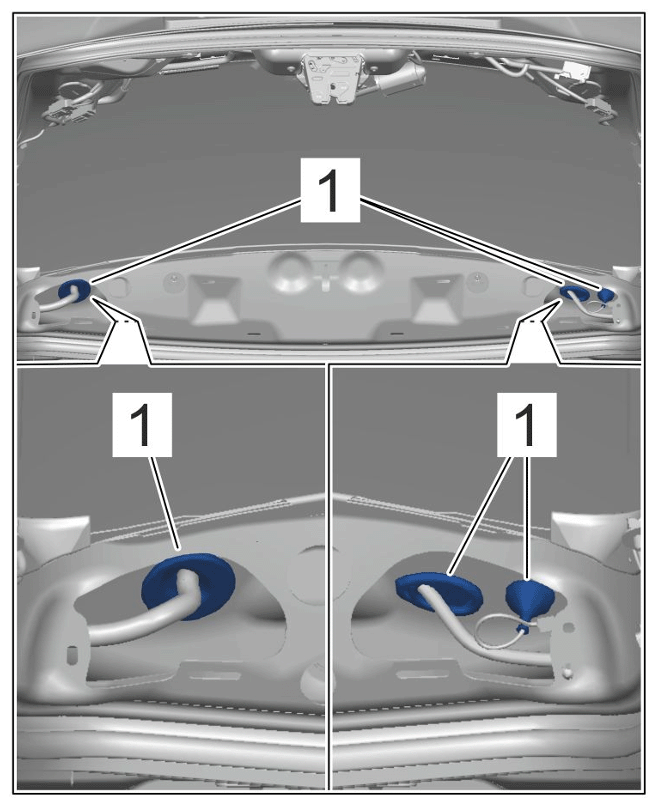

3. Loosen rubber sleeves -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rubber sleeves

   Information

   Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

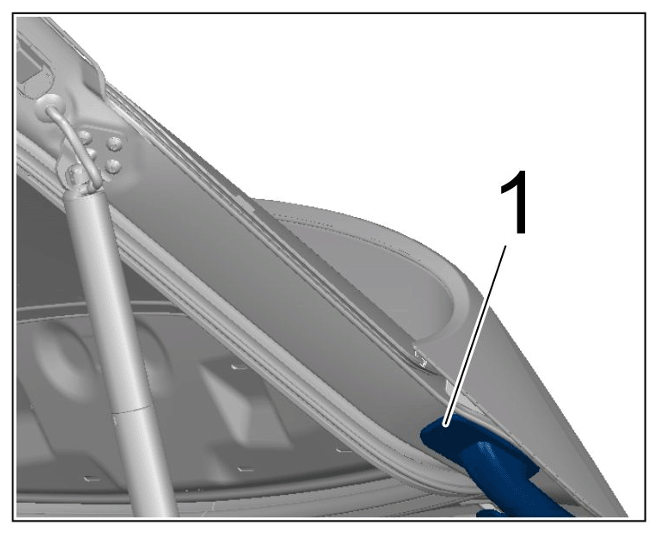

4. Loosen rubber sleeves -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rubber sleeve

5. Mark position of screws.

   Information

   Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

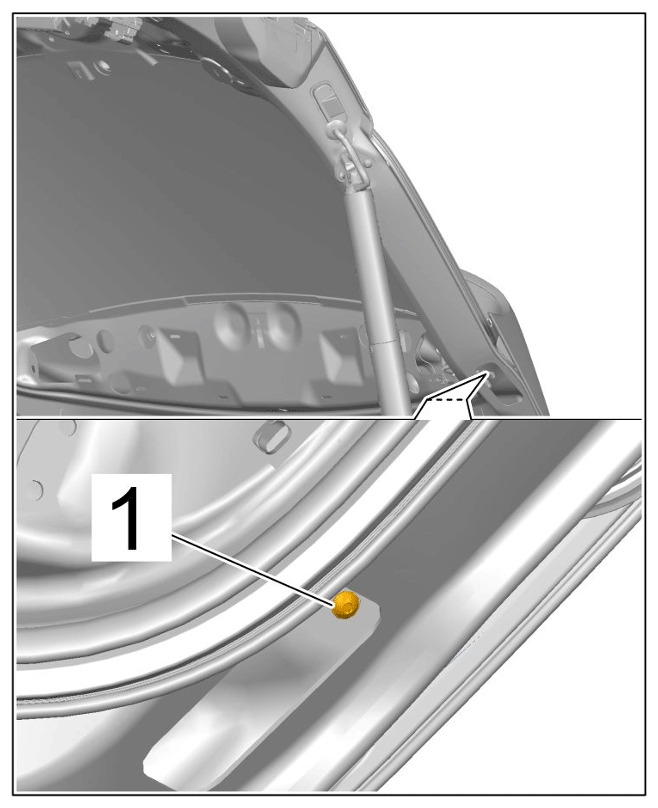

6. Unscrew screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws

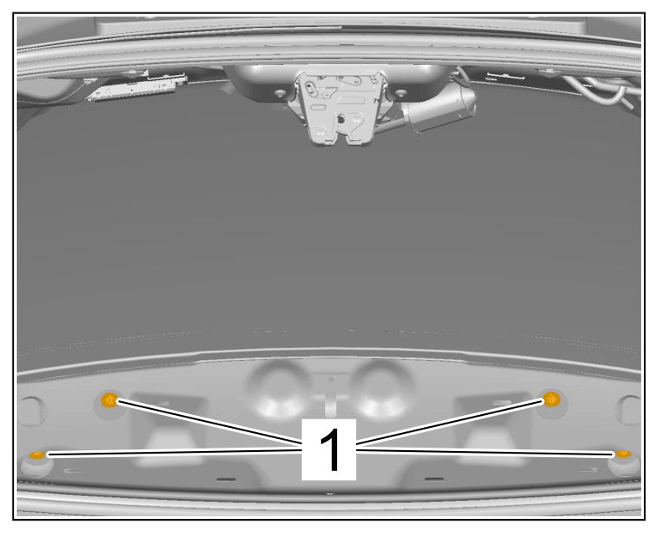

7. Unscrew and remove screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws

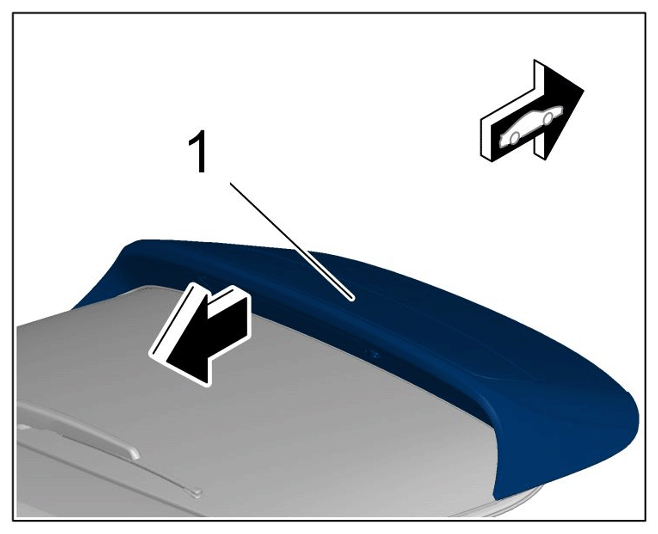

8. Remove rear spoiler -1-  . -arrow-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler
