Preparing Rear Lid

WARNING: This page is about a different variant/trim than selected.

Information

If the decoupling elements are not pre-treated accurately, they can become damaged during installation.

Coat decoupling elements with Kluberplus 000.043.205.93.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

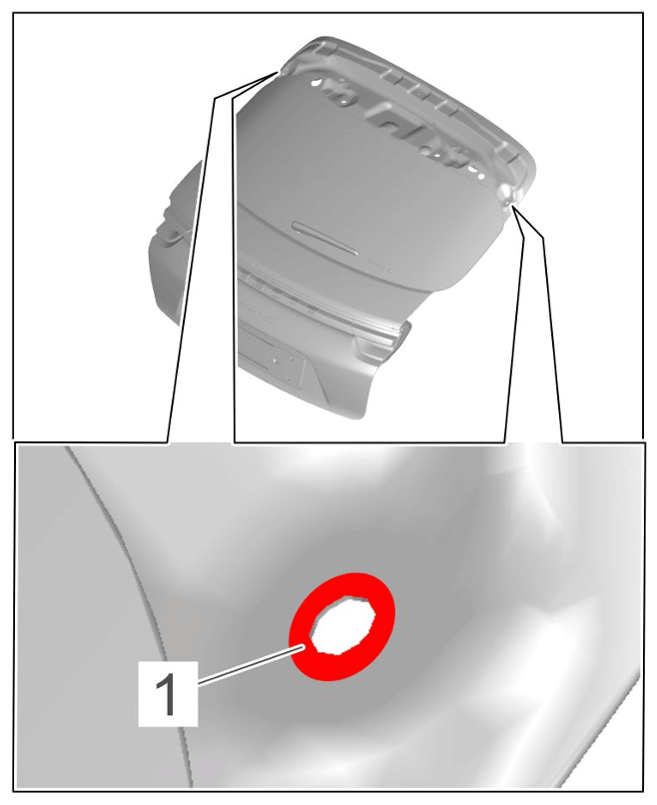

Decoupling element

Information

If the sealing surface on the Kerb Konus elements is not pre-treated accurately, water can leak in.
Treat the sealing surface of Kerb Konus elements with cavity preservation 000.043.204.85.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

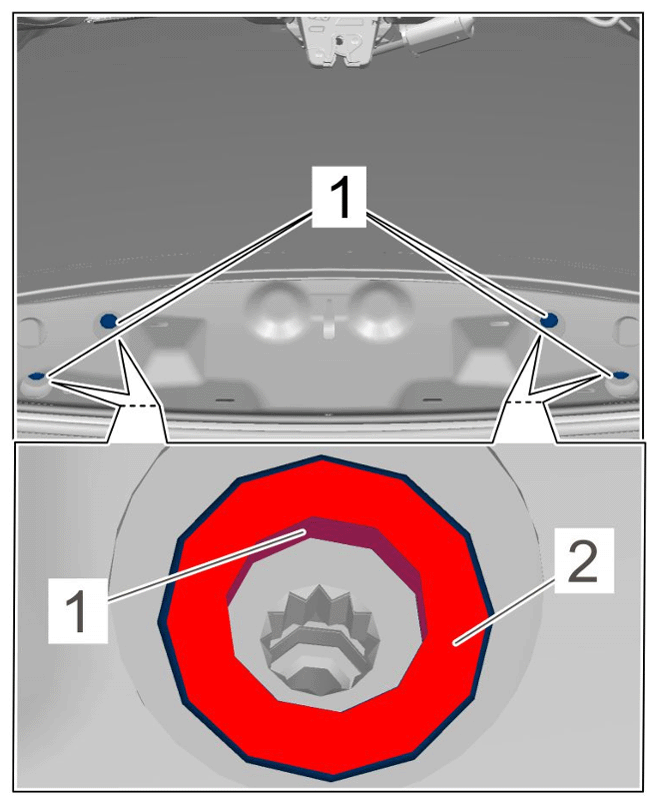

Sealing surface on Kerb Konus element
