Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Des...	Type	Basic val...	Toleranc...	Toleranc...

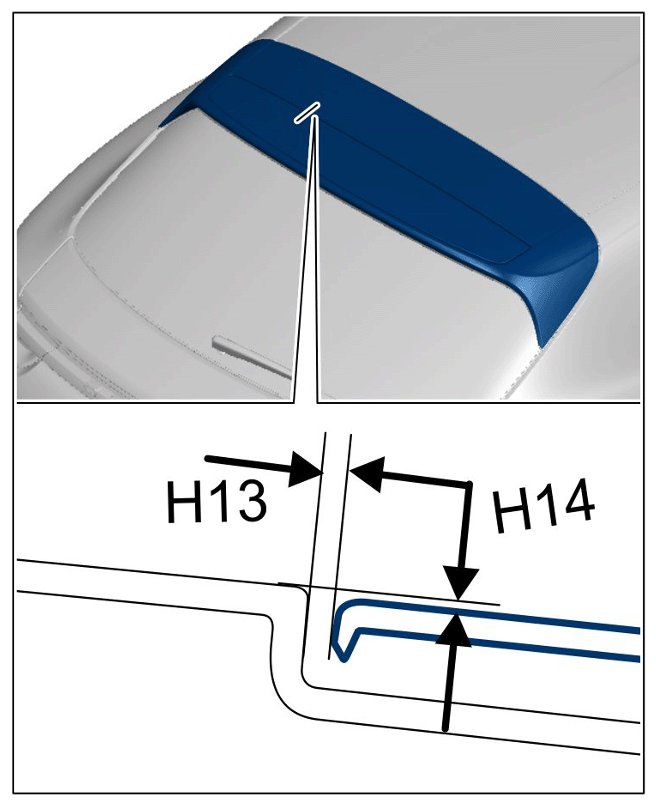

Rear spoiler (wing) to rear spoiler (H13)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear spoiler (wing) to rear spoiler (H14)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

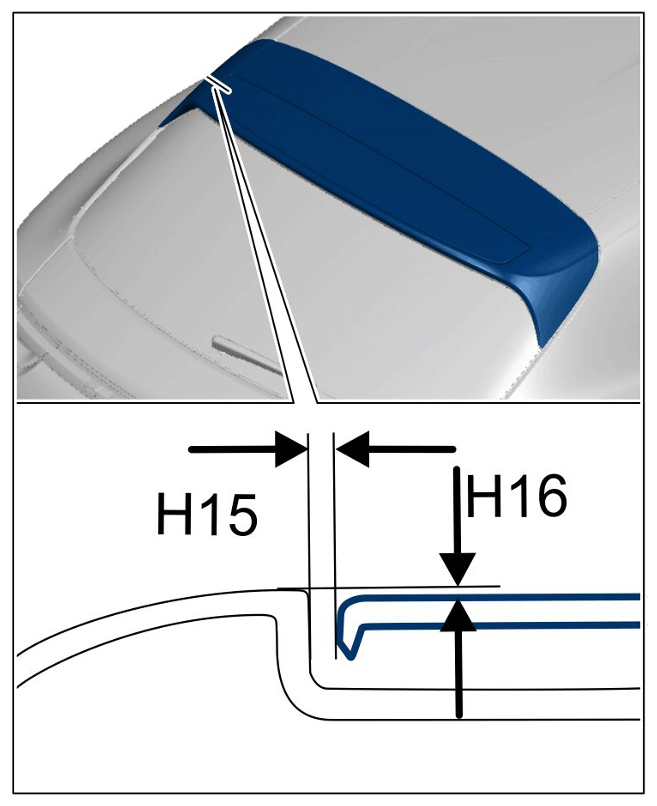

Rear spoiler (wing) to rear spoiler (H15)		Gap dimension	3.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear spoiler (wing) to rear spoiler (H16)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

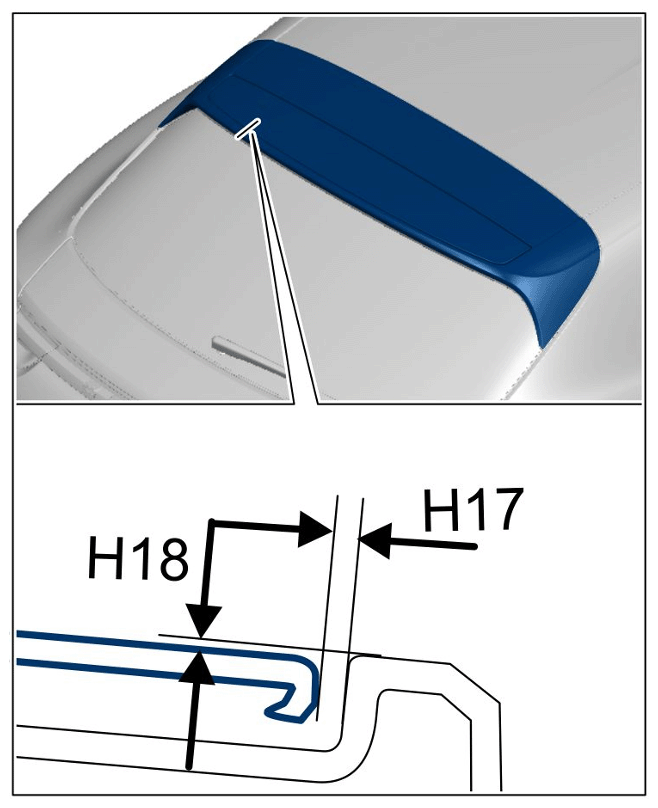

Rear spoiler (wing) to rear spoiler (H17)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear spoiler (wing) to rear spoiler (H18)	Running gap dimension	Gap dimension	0.5 mm - 0.3 mm	+/- 0.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

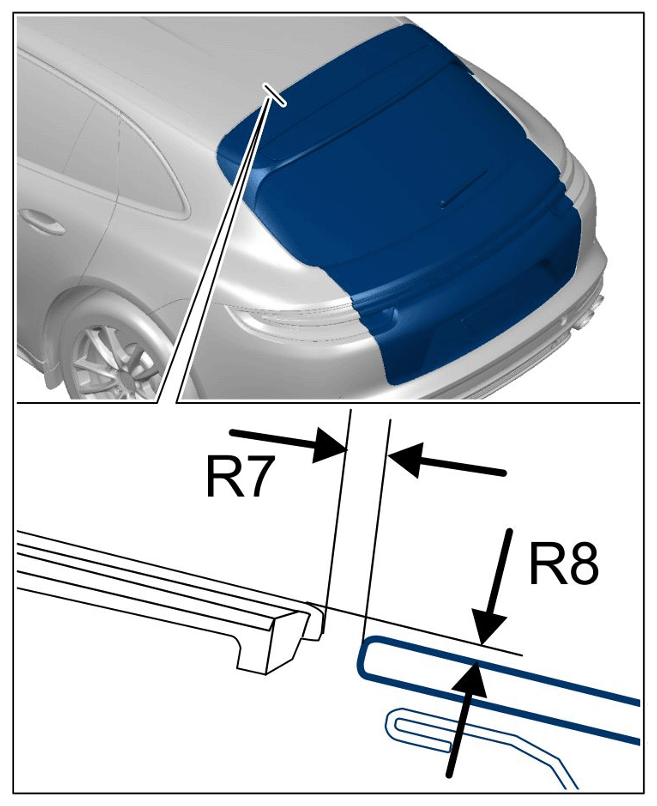

Rear lid to roof/P-roof (R7)		Gap dimension	4.8 mm	+ 1 mm	- 0.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to roof/P-roof (R8)		Gap dimension	- 2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

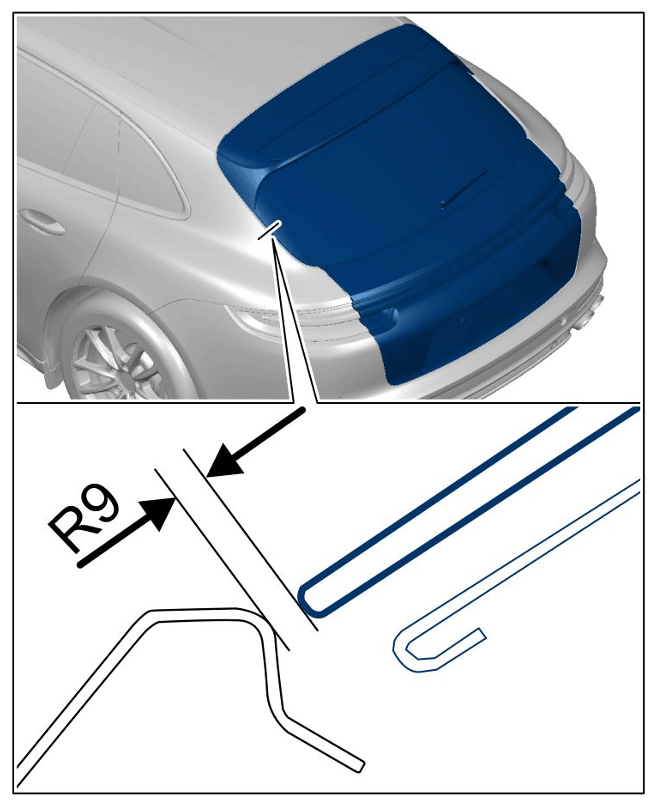

Rear lid to side panel (R9)		Gap dimension	4 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

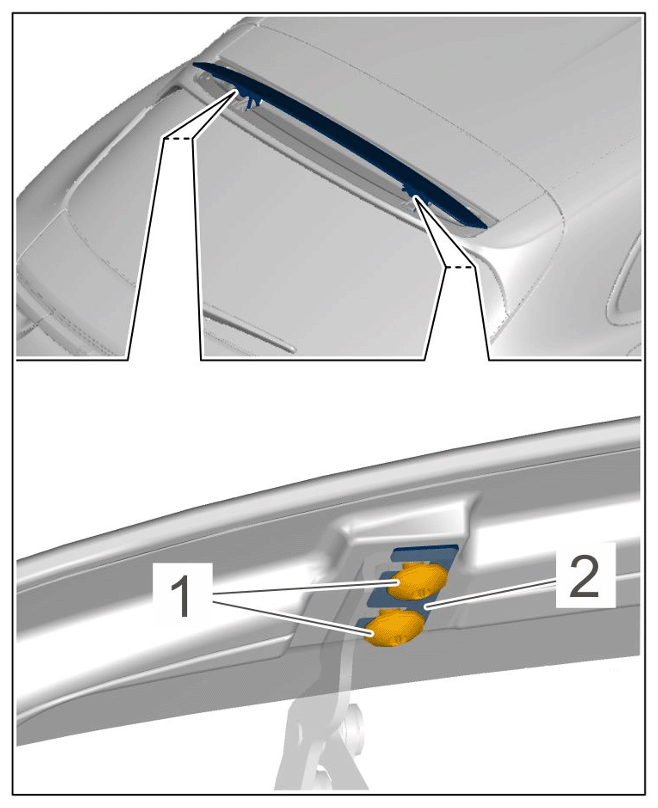

Rear spoiler (wing)	Item 1	Tightening torque	6 Nm (4.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler (wing)
