Adjusting Rear Spoiler (Wing)

> 5X00IN Gap dimensions

> Gap dimension 4 mm +/- 0.7 mm

> Gap dimension 3.5 mm +/- 0.5 mm

> Gap dimension 0.5 mm +/- 0.5 mm

> Gap dimension 3.5 mm +/- 0.8 mm

> Gap dimension 0.5 mm +/- 0.5 mm

> Gap dimension 3.5 mm +/- 0.5 mm

> Gap dimension 0.5 mm - 0.3 mm +/- 0.4 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (wing)

1. 2.1 Extend rear spoiler fully using PIWIS Tester III.
2. 2.2 Loosen screws -1-  until the rear spoiler (wing) can still be moved.
3. 2.3 Retract rear spoiler (wing) fully using PIWIS Tester III.
4. 2.4 Adjust rear spoiler (wing).
5. 2.5 Check gap dimensions.
6. 2.6 Extend rear spoiler (wing) fully using PIWIS Tester III.
7. 2.7 Tighten screws to > Tightening torque 6 Nm (4.4 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (wing)

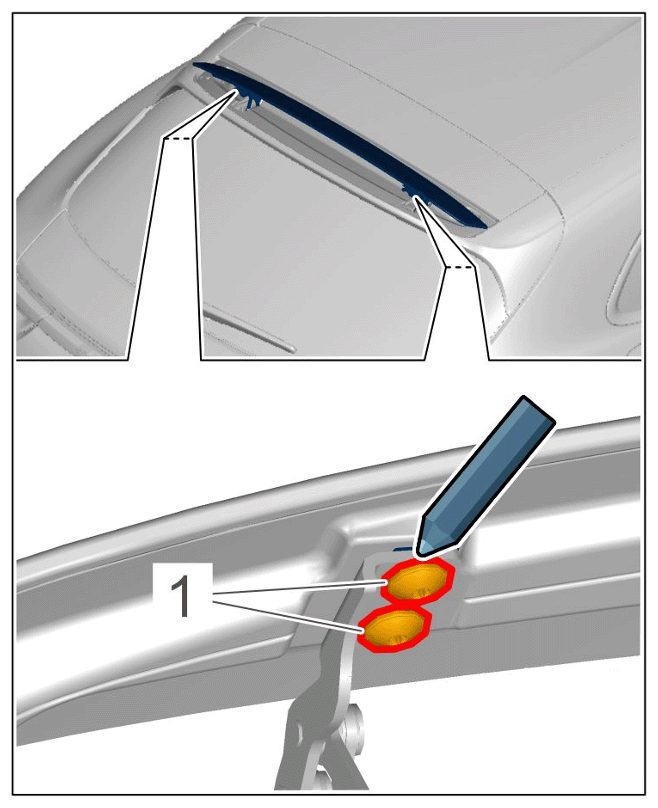

1. 3.1 Mark position of rear spoiler (wing) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear spoiler (wing) position

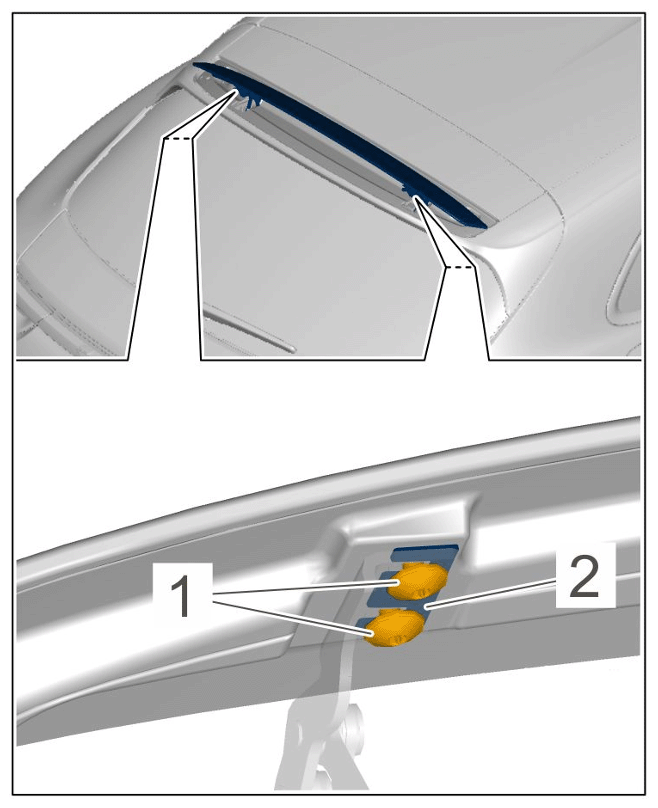

2. 3.2 Loosen screws -1-  until the shims -2-  can be removed.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear spoiler (wing)

3. 3.3 Replace shims -2-  with corresponding shims from repair kit 974.898.037.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear spoiler (wing)

   Information

   Always replace self-locking screws.

4. 3.4 Position rear spoiler (wing) -1-  and tighten screws until the rear spoiler (wing) can still be moved.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear spoiler (wing) position

5. 3.5 Retract rear spoiler (wing) fully using PIWIS Tester III.
6. 3.6 Check gap dimensions.
7. 3.7 Extend rear spoiler (wing) fully using PIWIS Tester III.
8. 3.8 Tighten screws to > Tightening torque 6 Nm (4.4 ftlb.)  .
