Removing Side Air Intake Grille
WARNING: This page is about a different variant/trim than selected.
- Open the front door.

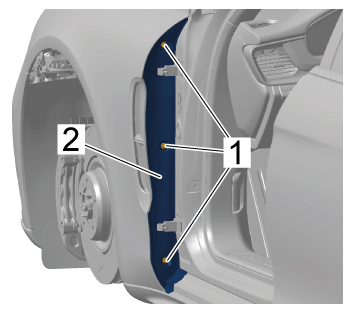

- Remove expanding clips -1-
and remove splash guard on front door -2-
.
Removing splash guard

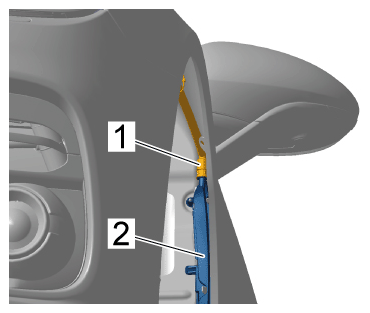

- Unclip hose for headlight ventilation -1-
from side air intake grille -2-
.
Unclipping headlight ventilation hose

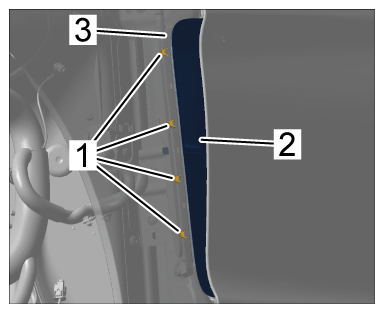

- Unclip locking lugs -1-
and remove trim -2-
on inner part of air intake grille -3-
.
Removing cover

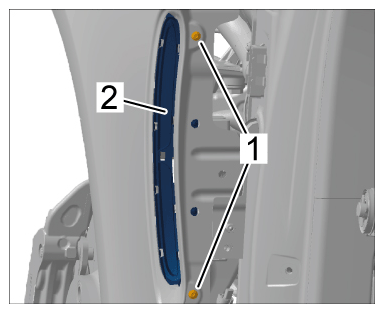

- Unscrew screws -1- and remove side air intake grille -2- from the wing.
Removing inner part
