Positioning Logo With Logo Template

WARNING: This page is about a different variant/trim than selected.
  1. Insert the relevant interchangeable insert -1-  into logo template -2-  .

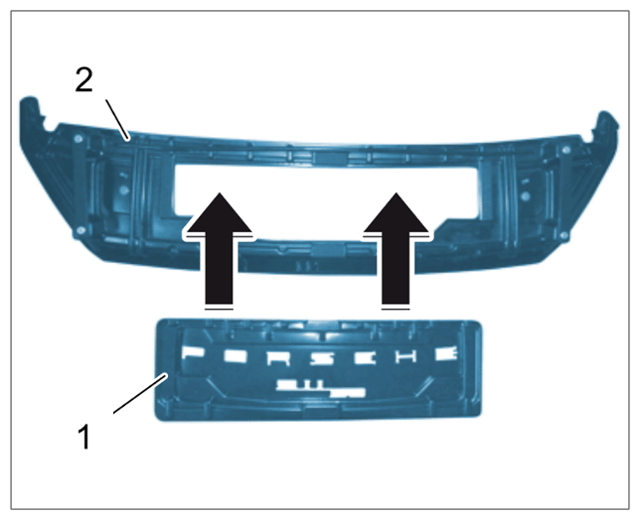

    G15866251Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Preparing logo template (shown on the 991)

  2. Position the logo template -1-  on the vehicle.

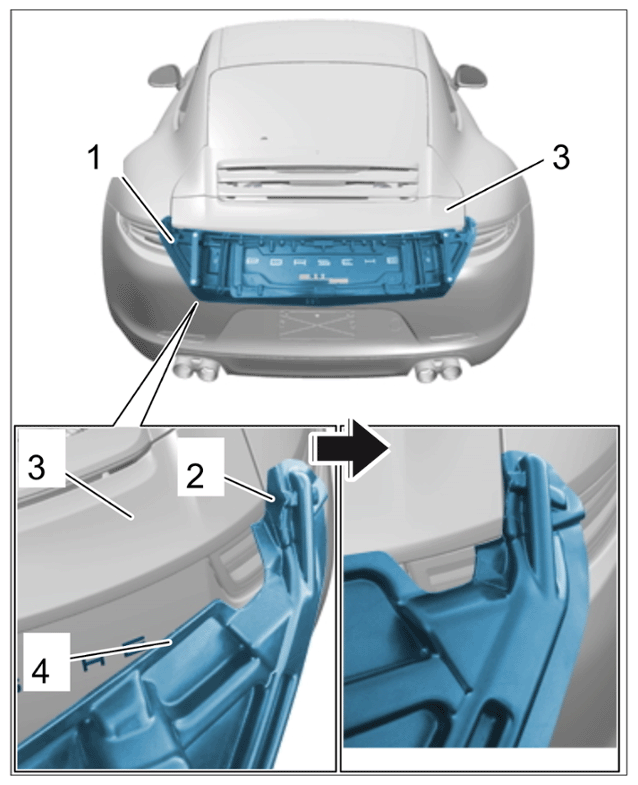

    G15866252Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Positioning logo template (shown on the 991)

  3. Remove protective paper from the logo -1-  .
  4. Align the logo -1-  using the logo template -2-  and press it on firmly.

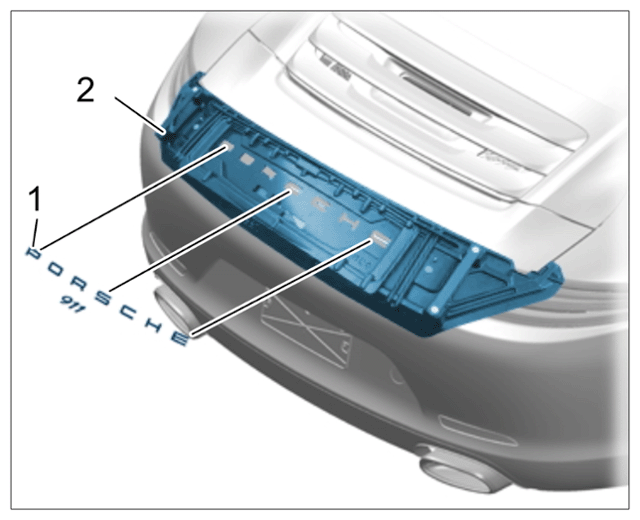

    G15866253Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Affixing logo (shown on the 991)

  5. Remove logo template from the vehicle.
