Sport TURISMO
WARNING: This page is about a different variant/trim than selected.
| Logo template Panamera 4 logo template | > 9927 - Logo template - "Panamera 4" |
| Logo template Panamera 4S logo template | > 9927/1 - Logo template - "Panamera 4S" |
| Logo template Panamera 4 (E-Hybrid) logo template | > 9927/2 - Logo template - "Panamera 4" (E-Hybrid) |
| Logo template Panamera turbo logo template | > 9927/3 - Logo template - "Panamera turbo" |
| Logo template Panamera turbo S logo template | > 9927/4 - Logo template - "Panamera turbo S" |
| Logo template Panamera GTS logo template | > 9927/5 - Logo template - "Panamera GTS" |
- Position logo template on the vehicle.
- 1.1 Insert logo template into the gap between the rear bumper and the spoiler output drive.

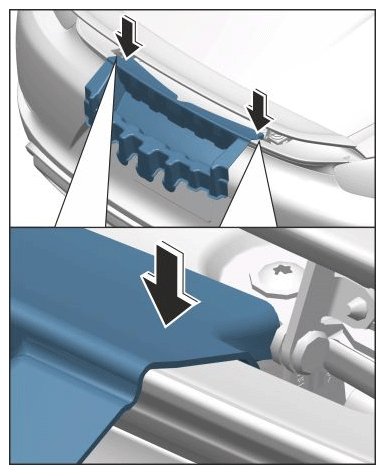

Positioning template (shown on the 982)
- Remove the protective paper from the logo.
- Align the logo -1-
using the logo template -2-
and press it on firmly.

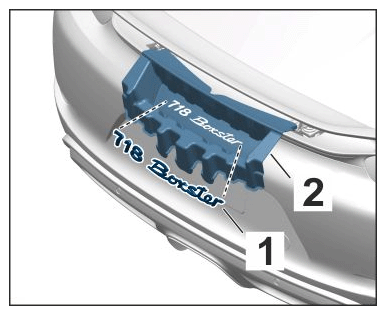

Affixing logo (shown on the 982)
- Remove logo template from the vehicle.
