Removing Rear Logo

WARNING: This page is about a different variant/trim than selected.

Information

Logos cannot be re-used.

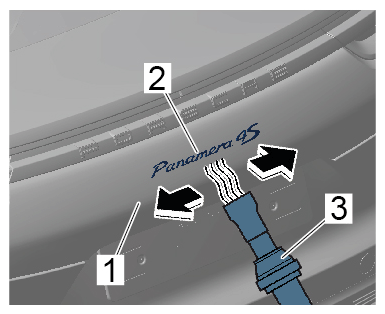

  1. Heat the area -1-  around the logo -2-  using > V.A.G 1416 - Hot-Air Blower -3-  .
    G15866246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Area around logo

    Information

    Rise off logos carefully so as not to damage the paintwork.

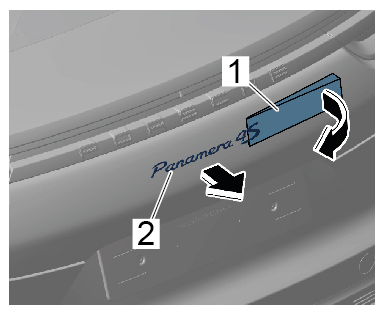

  2. Use a plastic spatula -1-  to prise off the logo -2-  .
    G15866247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Logo

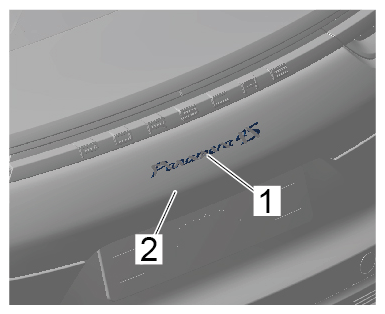

  3. Remove residual adhesive -1-  around the logo -2-  using silicone remover.
G15866248Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cleaning area around logo
