Removing Moulding For Rear Lid
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

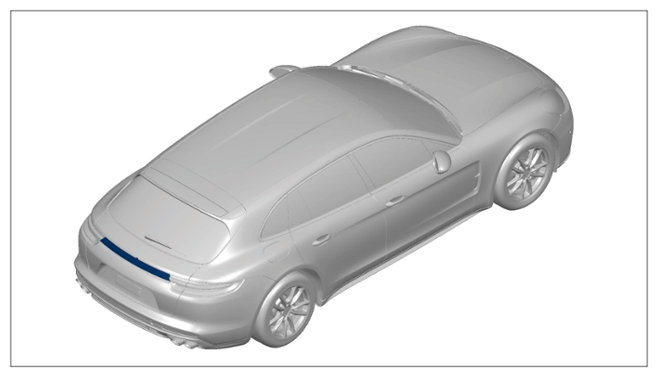

Installation position of moulding for rear lid

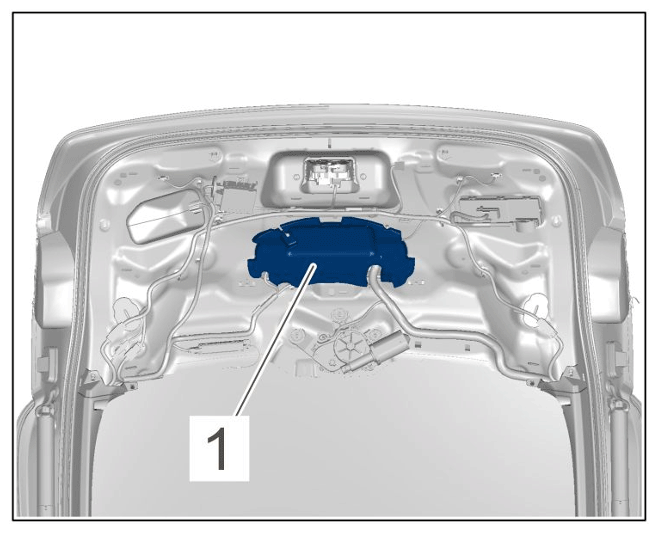

- Remove foam -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Foam

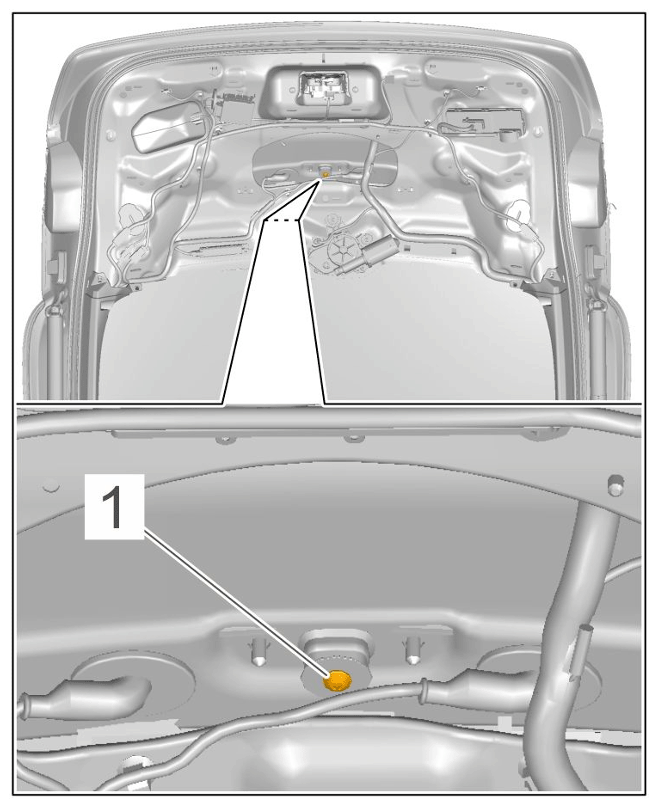

- Unscrew and remove screw -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screw

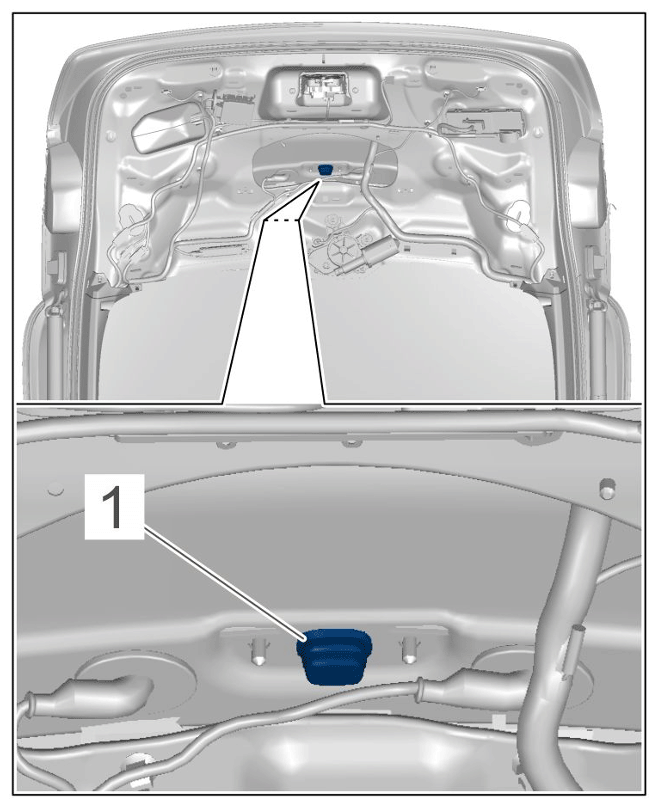

- Remove rubber sleeve -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rubber sleeve

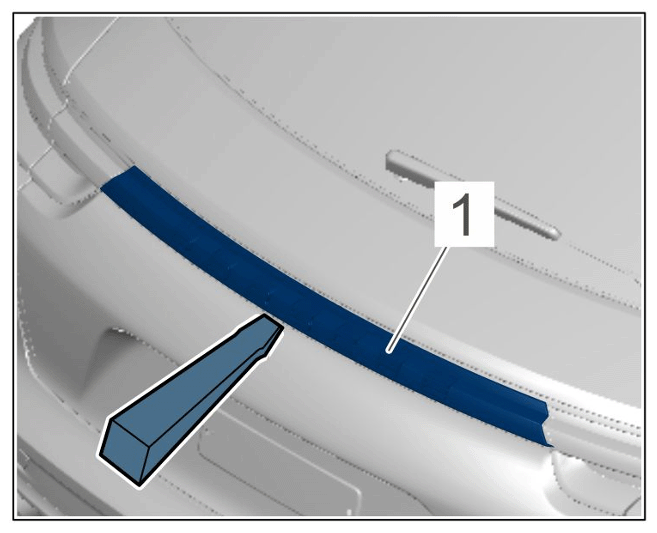

- Unclip and remove rear lid moulding -1-
using a plastic wedge.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear lid moulding
