Removing Moulding For Rear Lid

1. Remove covers -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

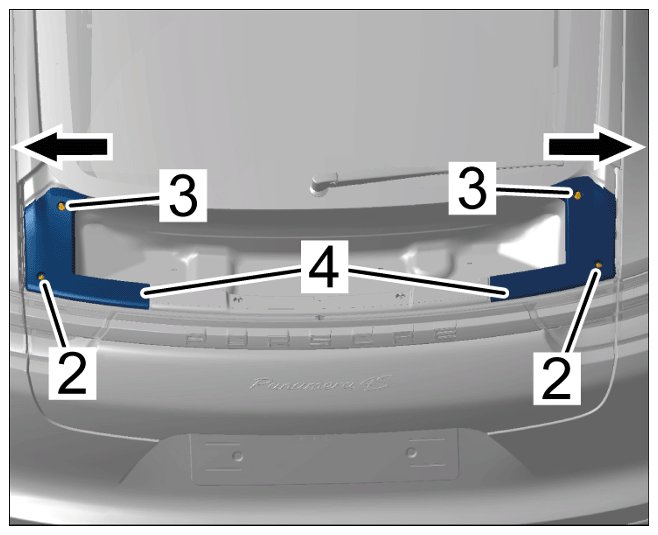

   Removing covers

   1. 1.1 Unscrew screws -2-  and remove expansion rivets -3-  .
   2. 1.2 Lift the rear lid up slightly and pull covers -4-  outwards and remove them. -arrow-
2. Remove middle cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

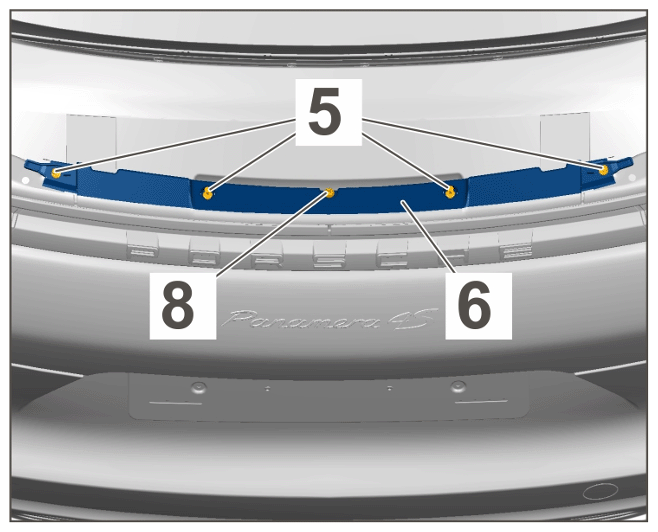

   Removing middle cover

   1. 2.1 Remove expansion rivets -5-  .
   2. 2.2 Unscrew and remove screw -8-  .
   3. 2.3 Take off the middle cover -6-  .
3. Pull clamp -7-  up and unclip moulding for rear lid -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

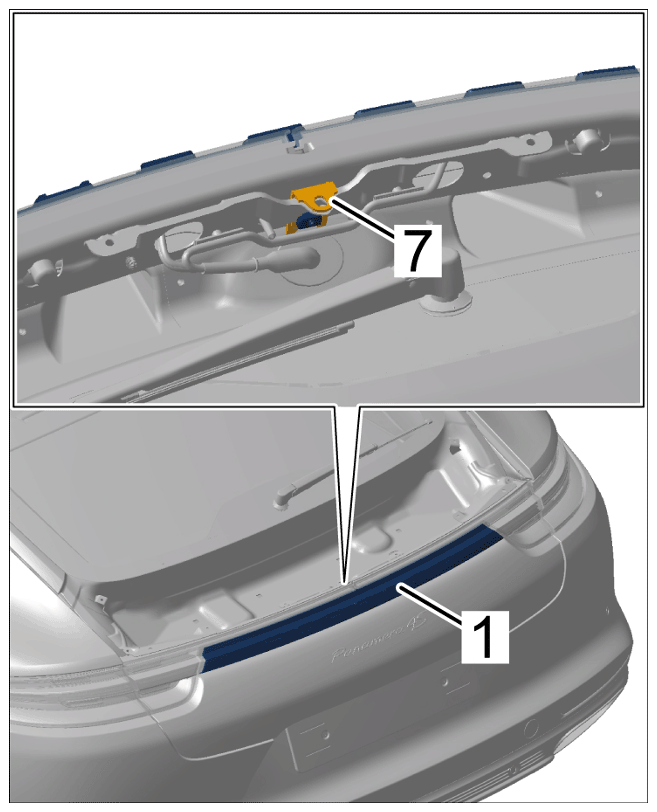

Removing moulding for rear lid
