Subsequent Work

WARNING: This page is about a different variant/trim than selected.

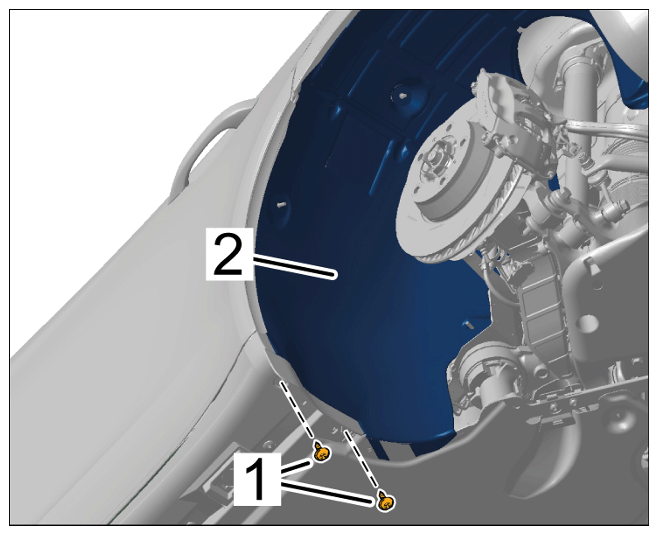

Install rear wheel housing liner -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing wheel housing liner
Screw in and tighten screws -1- > Tightening torque 2.5 Nm (1.8 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw in and tighten screw.

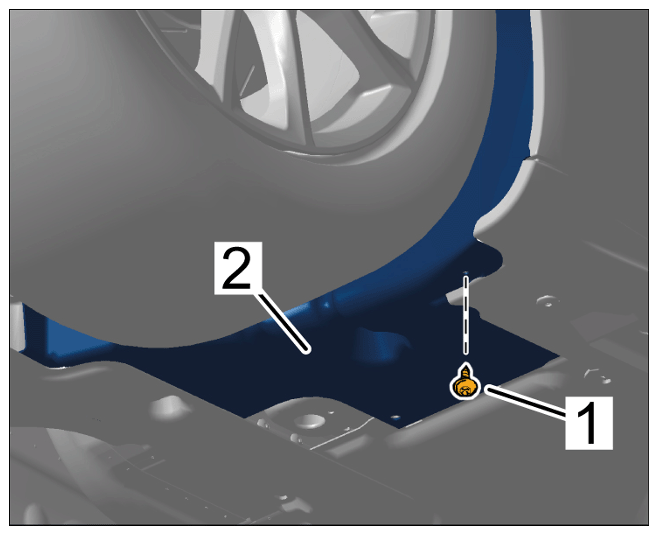

Install wheel housing liner -2- at the door entry guard.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing wheel housing liner
Screw in and tighten screw -1- > Tightening torque 2.5 Nm (1.8 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw in and tighten screw.
