Removing Sill Cover

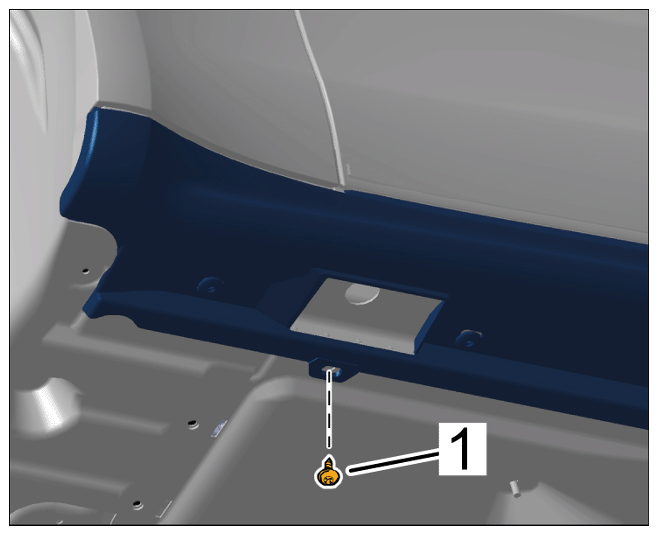

1. Unscrew and remove screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening door entry guard

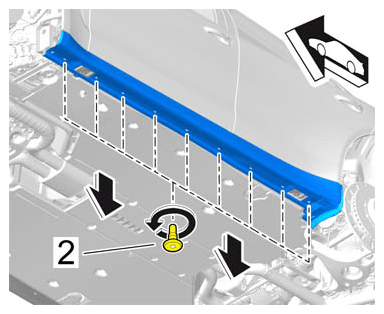

2. Unscrew and remove screws -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening door entry guard mounting

   Information

   • The sill cover (door entry guard) can only be removed and installed when the doors are open. The illustration shows the vehicle without doors for the sake of clarity.

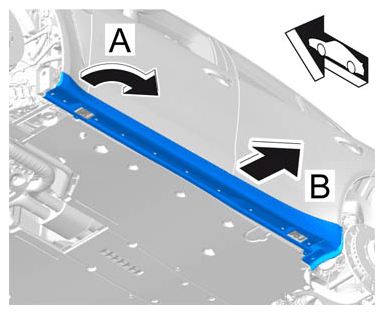

3. Starting at the front, unclip door entry guard completely in direction -A-  , then in direction -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping door entry guard

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping door entry guard

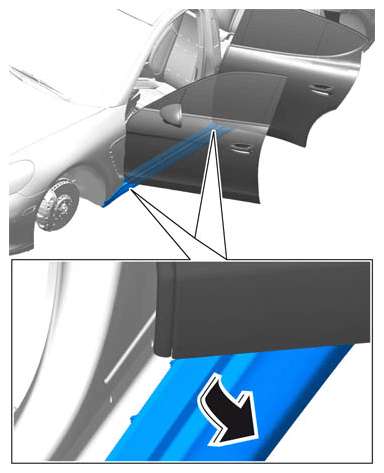

4. Guide door entry guard out of the door gap at the front and rear and remove door entry guard.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

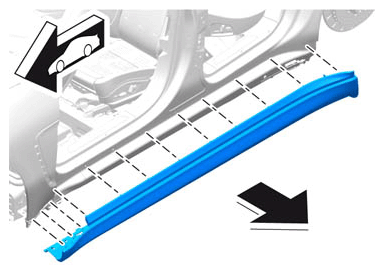

   Removing door entry guard

5. Check clips for damage. Replace damaged clips or sealing washers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

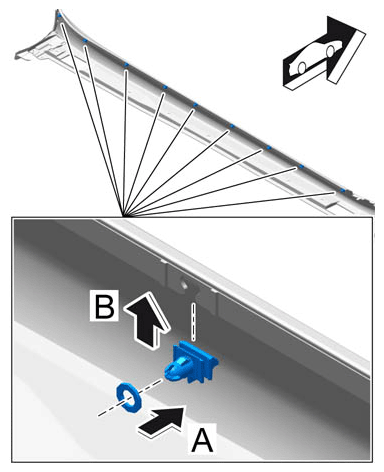

Removing clips

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

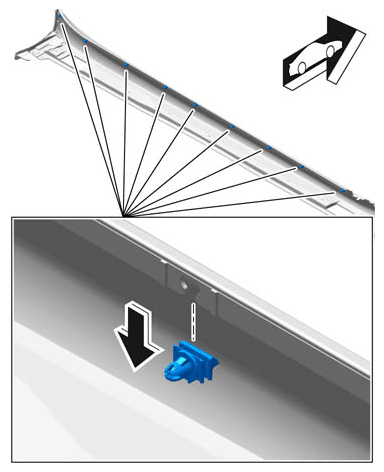

Installing clips
