Preliminary Work
WARNING: This page is about a different variant/trim than selected.

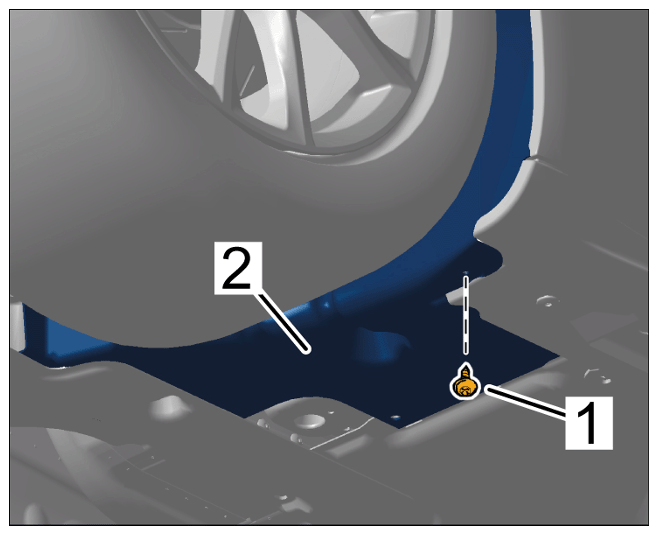

- Unscrew and remove screw -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrewing screw
- Loosen wheel housing liner -2-
at the door entry guard.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Releasing front wheel housing liner

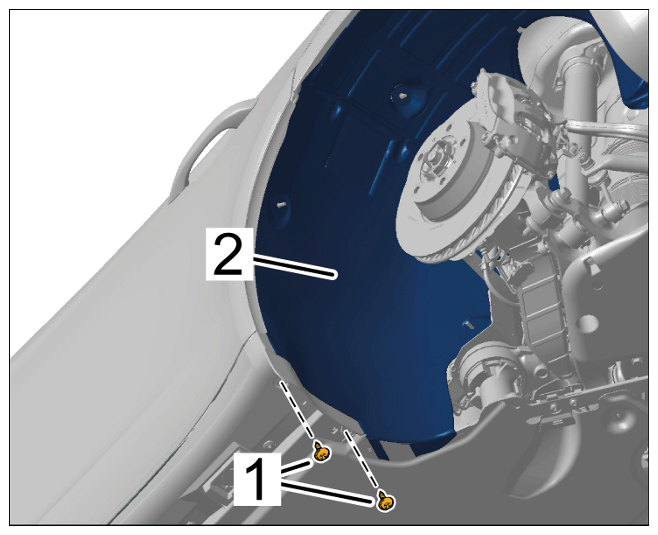

- Unscrew and remove screws -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrewing screws
- Loosen rear wheel housing liner -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Releasing rear wheel housing liner
