Installing Sill Cover

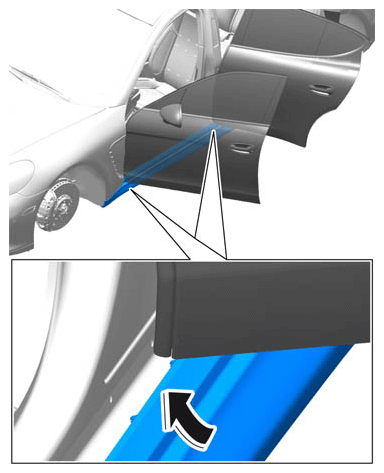

1. Fit door entry guard, guide it into the door gap and position it temporarily along the door sill.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting door entry guard

   Information

   • First position and engage the clips in the illustrated area of the B-pillar. Then engage all other clips.

   Information

   • The sill cover (door entry guard) can only be removed and installed when the doors are open. The illustration shows the vehicle without doors for the sake of clarity.

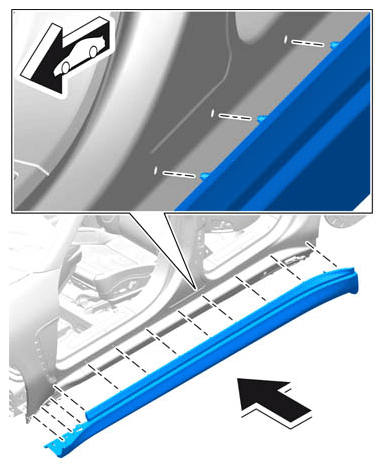

2. Clip door entry guard in fully.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clipping in door entry guard

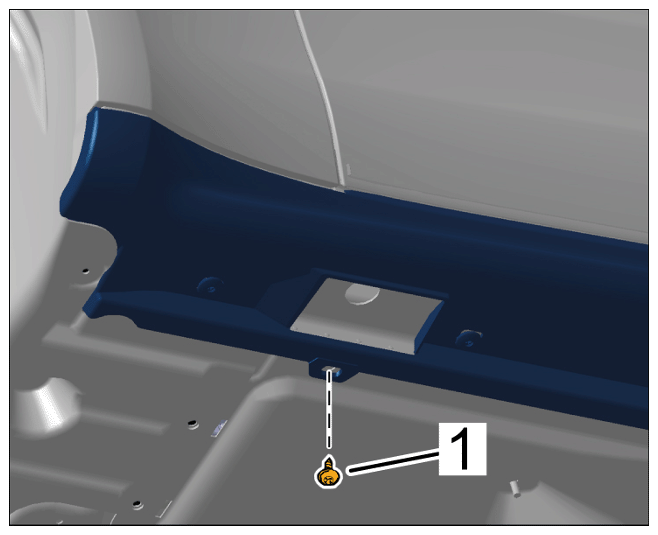

3. Screw in and tighten screw -1-  > Tightening torque 2.5 Nm (1.8 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screwing on door entry guard

   Information

   • The screw is the expansion rivet mandrel. No additional tightening is required.

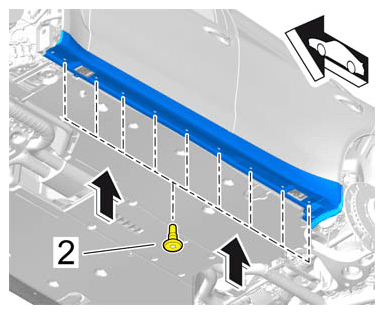

4. Press in screws -2-  as far as they will go.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting lower mounting
