Removing Radiator Grille

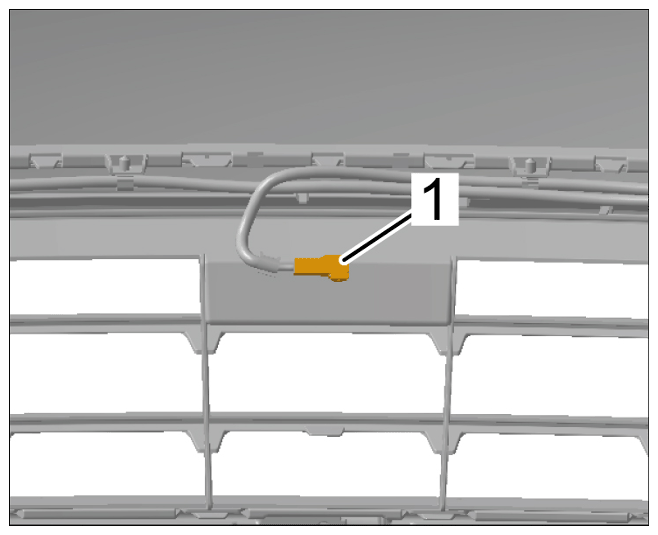

1. Release and disconnect electric plug connection -1-  on front camera.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and pulling off electric plug connection

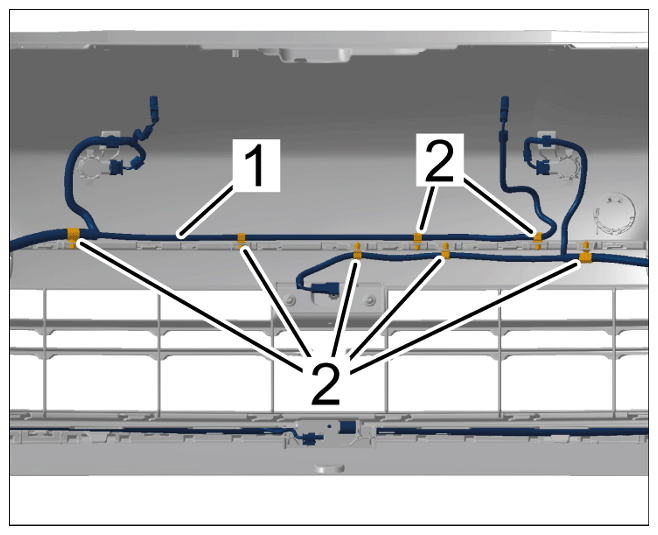

2. Unclip electric line -1-  using locking lugs -2-  on the radiator grille.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping electric line

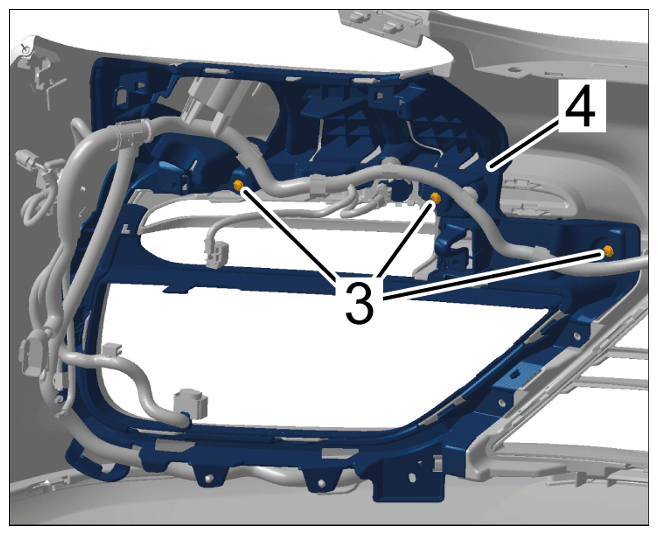

3. Unscrew screws -3-  on the frame -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screws

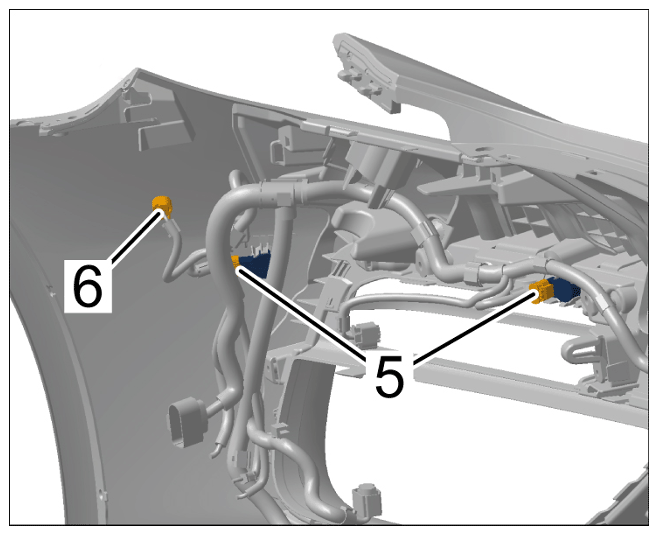

4. Release and disconnect electric plug connections -5-  on the outer Park Assist sensors.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and pulling off electric plug connections

5. Only for USA vehicles:

   Disconnect electric plug connection -6-  on position light.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and pulling off electric plug connection

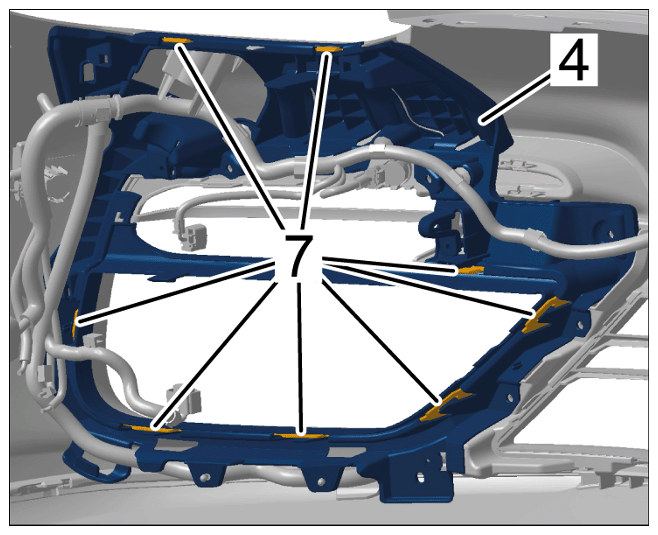

6. Unclip frame -4-  at the locking lugs -7-  and set it aside with lines connected.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping trim surround

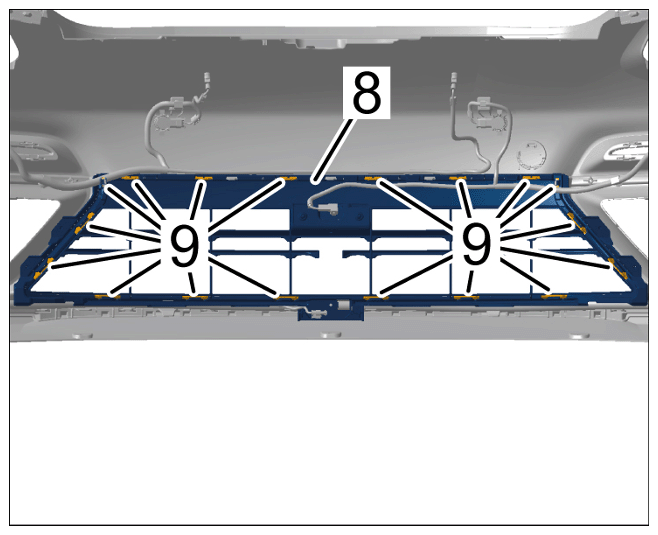

7. Unclip radiator grille -8-  at the locking lugs -9-  and remove radiator grille -8-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping radiator grille
