Removing Front Air Grille

Information

The number of electric plug connections can vary, depending on equipment.

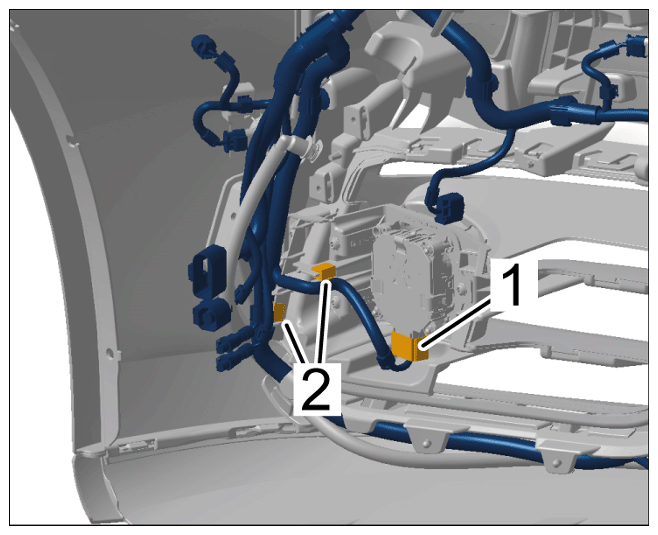

1. Unlock and disconnect electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and disconnecting electric plug connection

2. Unclip wire harness from catches -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping wire harness

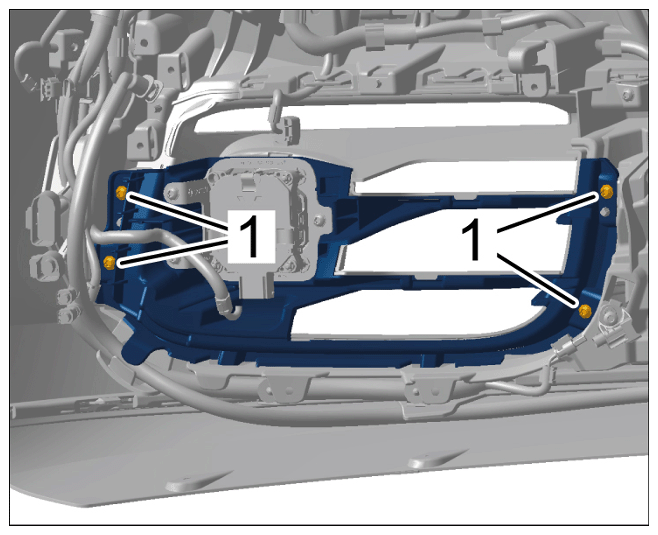

3. Press wire harness aside and unscrew screws -1-  on the air grille.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening air grille

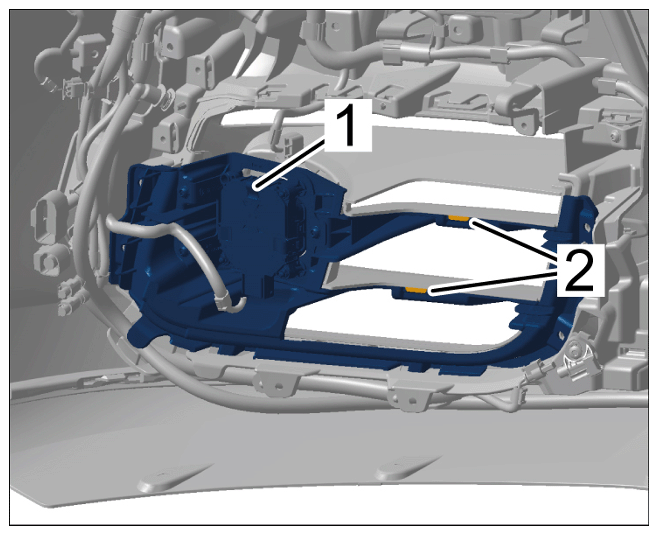

4. Unclip inner air grille -1-  using a suitable tool at the locking lugs -2-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping inner air grille

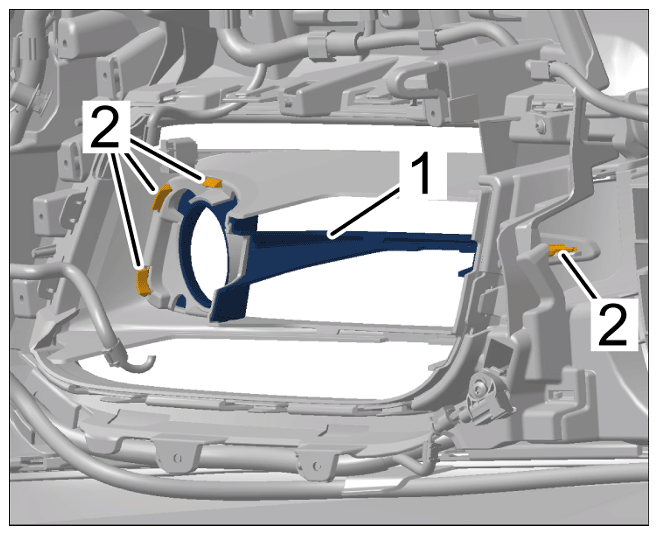

5. Unclip centre air grille -1-  using a suitable tool at the locking lugs -2-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping centre air grille

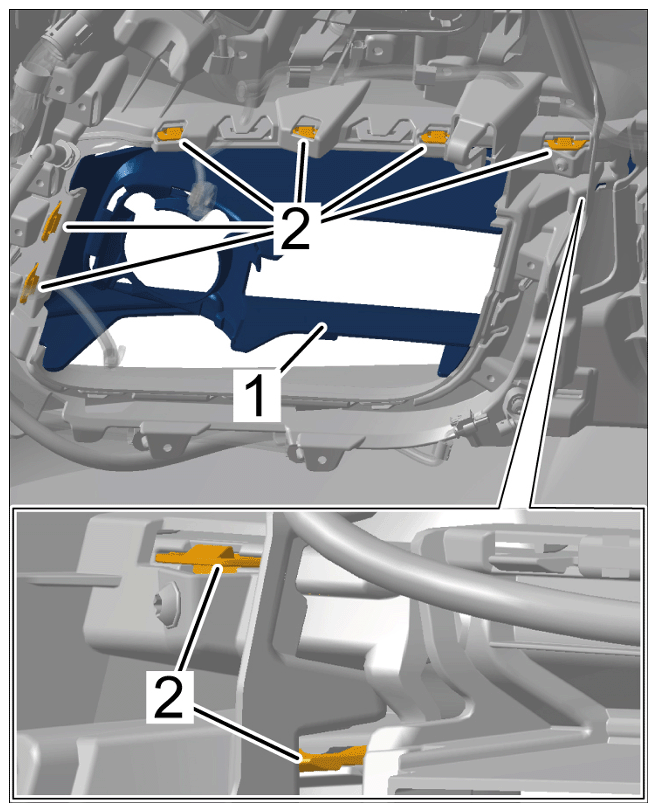

6. Unclip outer air grille -1-  using a suitable tool at the locking lugs -2-  and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping outer air grille
