Removing Brake Shoes

WARNING: This page is about a different variant/trim than selected.
WARNING: Preloaded or pressurized components
  • Risk of injury (e.g. crushing or bruising) when removing and installing springs.

    → Do not reach into the danger area.

    → Relieve the tension on components before starting work.

    → Secure components to prevent them from loosening suddenly.

    → Wear protective gloves and goggles.

    → Be very careful when working on the brake system.

  1. Loosen the adjustment device using a screwdriver.

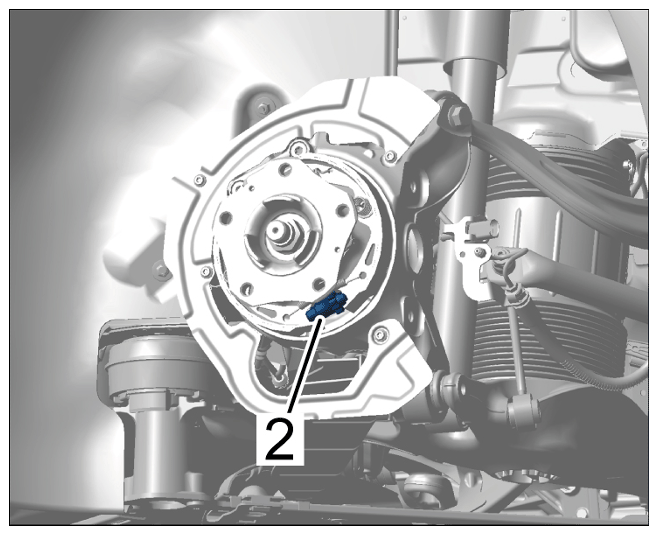

    G15862464Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening adjustment device

  2. Remove compression springs -3-  .

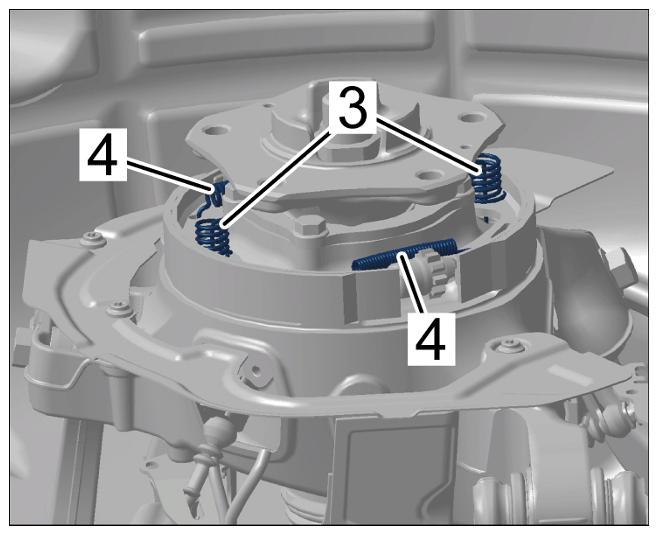

    G15862465Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Compression and tension springs

  3. Remove lower tension spring -4-  (at the adjustment device).
    G15862466Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Compression and tension springs

  4. Remove adjustment device -2-  .
    G15862467Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening adjustment device

  5. Remove upper tension spring -4-  .
    G15862468Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Compression and tension springs

  6. Remove brake shoes.
  7. Secure actuator for EPB using a tie-wrap -arrow-  .

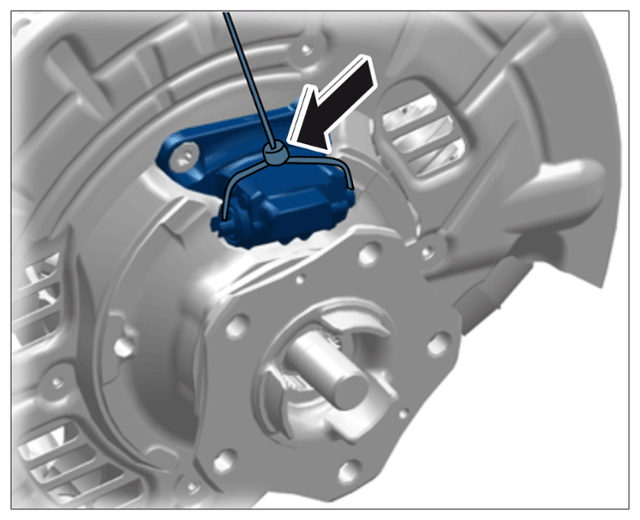

    G15862469Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Securing actuator for EPB
