Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Des...	Type	Basic val...
Brake calliper to wheel bearing housing	Item 2: Cheese head screw M14x 1.5/always replace screws after dismantling!	Initial tightening	30 Nm (22.1 ftlb.)

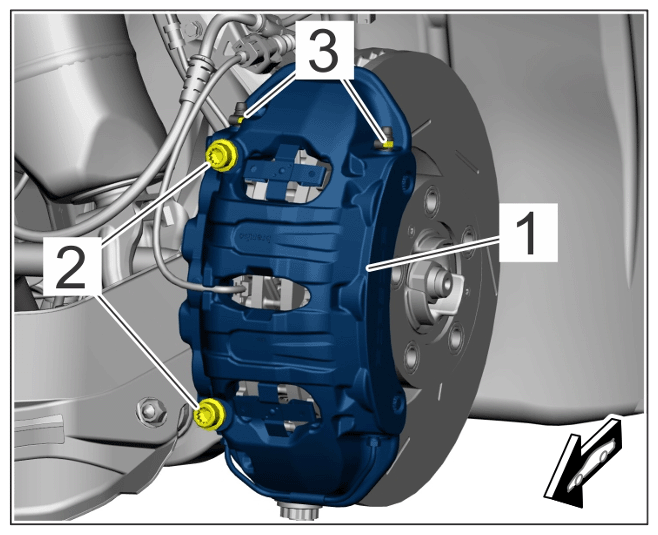

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper on front axle
Brake calliper to wheel bearing housing	Item 2: Cheese head screw, M14x 1.5/Always replace screws after dismantling!	Final tightening torque angle	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper on front axle
Brake line holder to wheel bearing housing	Item 4: Hexagon-head bolt, M6x 16	Tightening torque	8 Nm (6 ftlb.)

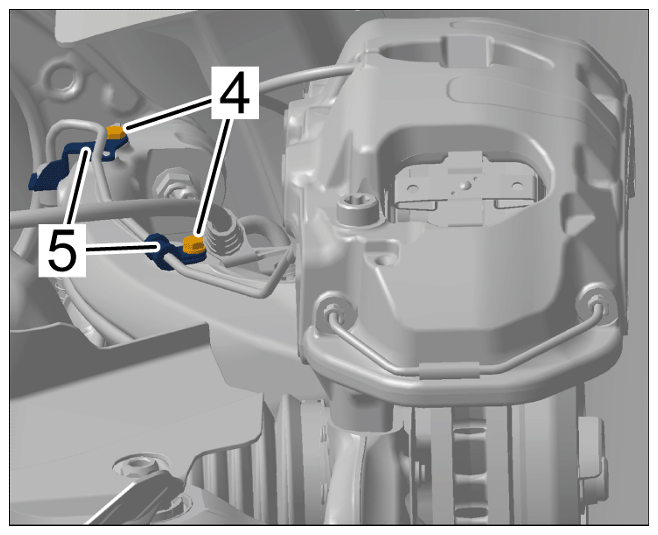

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake line holder
Brake disc to wheel hub	Arrows: Counters unk screw, M6 x 12 (micro-self-locking)/always replace screws following removal!	Tightening torque	5 Nm (3.5 ftlb.)

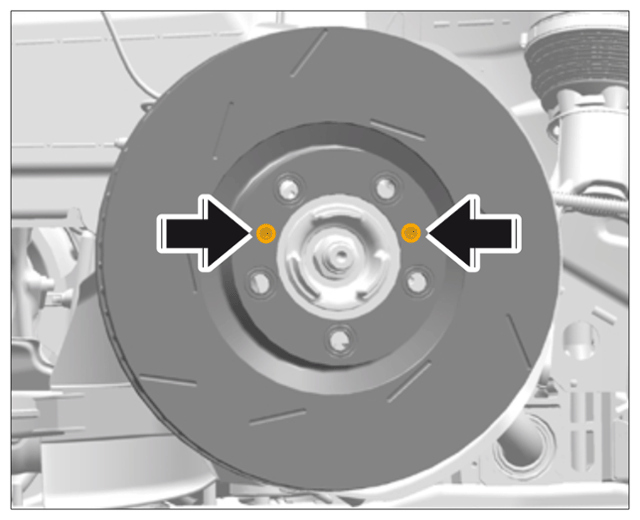

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake disc fastening screws
