Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Removing cover under dashboard.

    > WM, 702219 REMOVING AND INSTALLING COVER UNDER DASHBOARD (Coupe) , WM, 702219 REMOVING AND INSTALLING COVER UNDER DASHBOARD (Wagon)

    For vehicles with infrared camera (additional equipment):

  2. Loosen infrared camera control unit and set it aside with lines connected.

    > WM, 908119 REMOVING AND INSTALLING INFRARED CAMERA CONTROL UNIT

  3. Remove infrared camera control unit holder -3-  .
    1. 3.1 Loosen clip -1-  .
    2. 3.2 Unscrew screws -2-  .
    3. 3.3 Remove infrared camera control unit holder -3-  .

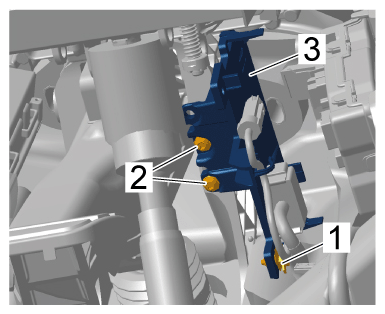

    G15859653Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Infrared camera control unit holder
