Component Overview
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

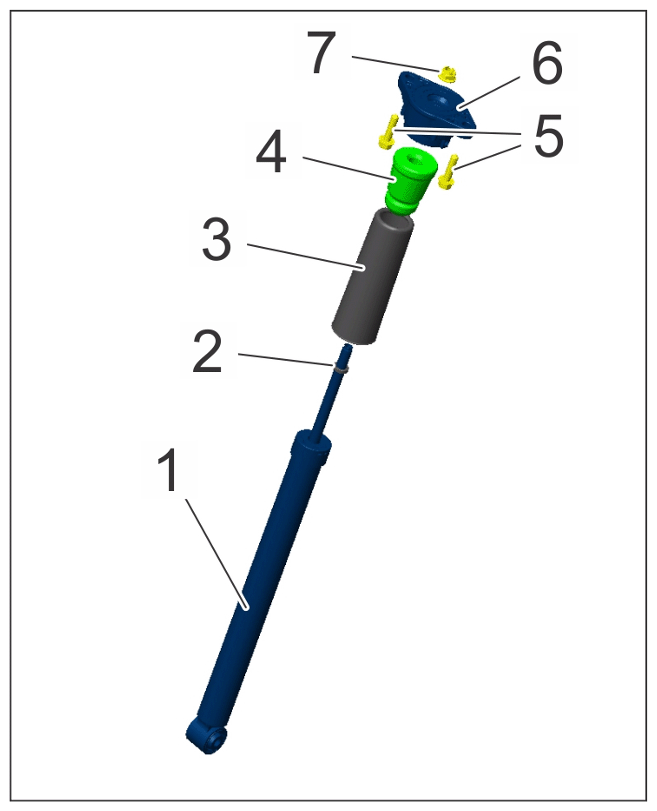

Individual parts of rear shock absorber
| 1 |
Spring damper/shock absorber |
| 2 |
Support washer |
| 3 |
Boot |
| 4 |
Rubber stop |
| 5 |
Screws, M10 x 42 |
| 6 |
Shock absorber mounting |
| 7 |
Nut, M14 |
