Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Anti-roll bar mount to rear axle housing	Item 2: Hexagon-head bolt, M8 x 35/always replace bolts following removal!	Initial tightening	20 Nm (15 ftlb.)

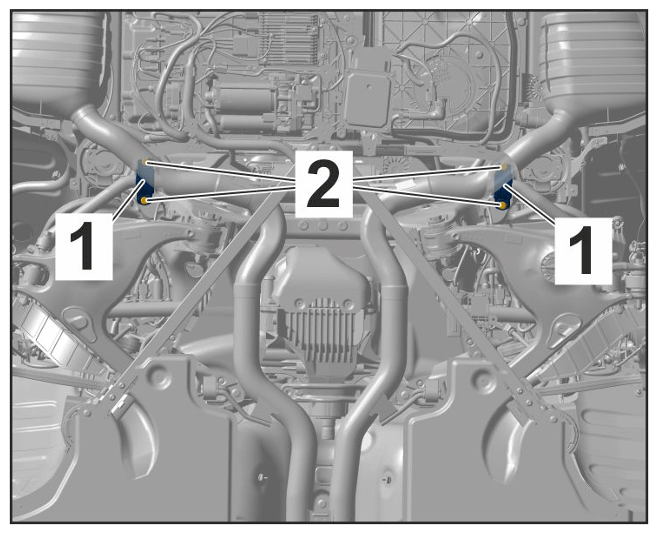

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for anti-roll bar mount
Anti-roll bar mount to rear axle housing	Item 2: Hexagon-head bolt, M8 x 35/always replace bolts following removal!	Final tightening torque angle	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for anti-roll bar mount
Bearing protective plate to rear axle housing	Item 2: Hexagon-head bolt M5	Tightening torque	7 Nm (5.2 ftlb.)

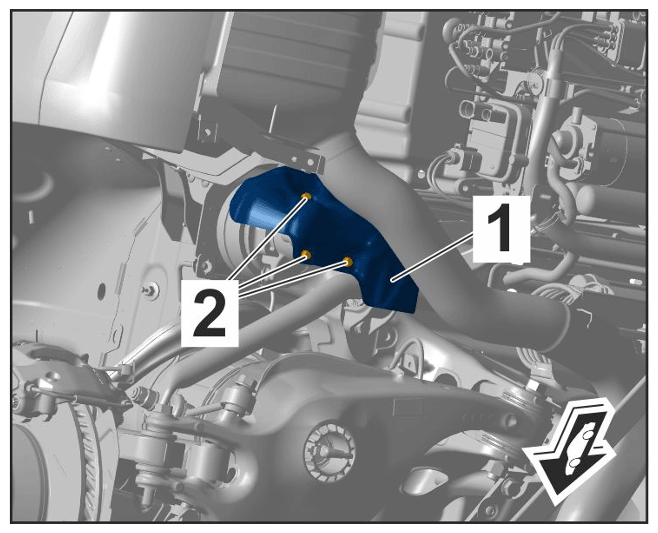

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Protective plate mount
