Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Speed sensor to wheel bearing housing	Item 2: Cheese head bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)

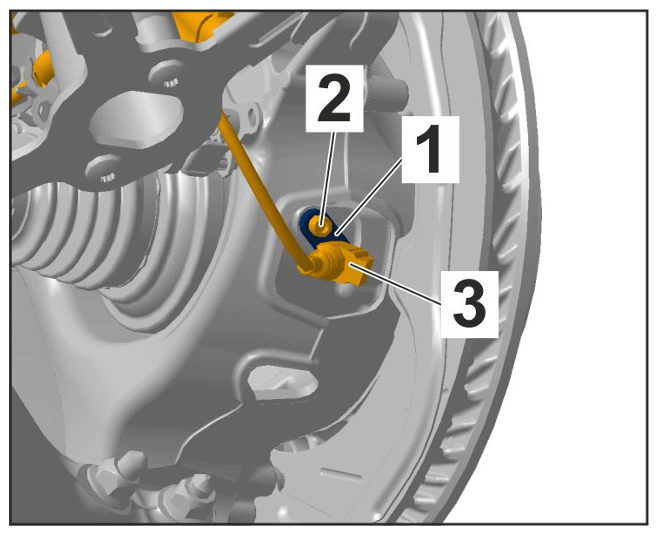

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Speed sensor mounting
Cable holder to wheel bearing housing	Item 2, top: Hexagon-head bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)

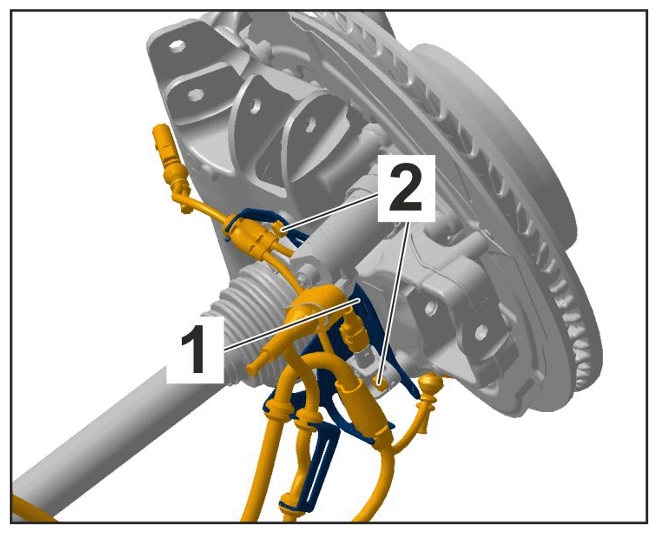

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cable holder mounting
Sensor for body with cable holder to wheel bearing housing	Item 2, bottom: Hexagon-head bolt, M6 x 25	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cable holder mounting
Trailing arm to wheel bearing housing	Hexagon-head bolt, x 1.5 x 105 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	70 Nm (52 ftlb.)
Trailing arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 105 and hexagon nut/always replace bolts and nuts following removal!	Final tightening torque angle	+ 180°
Control arm spoiler to trailing arm	Item 1: Hexagon-head bolt, M6 x 25	Tightening torque	8 Nm (6 ftlb.)

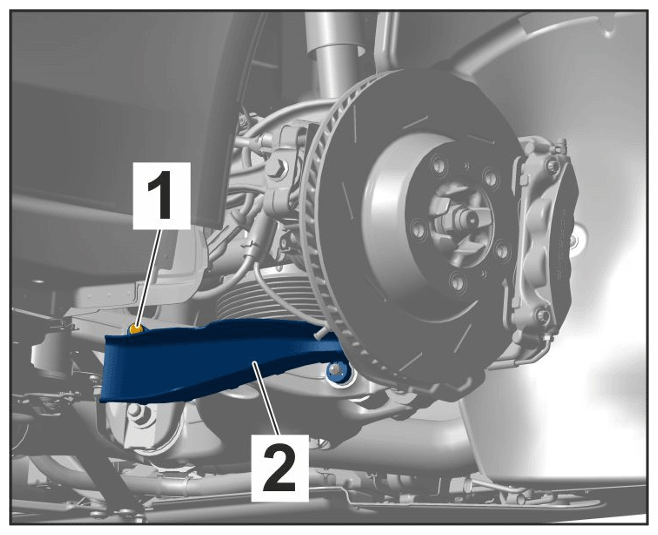

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control arm spoiler on trailing arm
Tie rod to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 85/always replace bolts following removal!	Initial tightening	70 Nm (52 ftlb.)
Tie rod to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 85/always replace bolts following removal!	Final tightening torque angle	+ 90°
Front upper control arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	70 Nm (52 ftlb.)
Front upper control arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal!	Final tightening torque angle	+ 90°
Rear upper control arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	70 Nm (52 ftlb.)
Rear upper control arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal!	Final tightening torque angle	+ 90°
Drive shaft to wheel hub	Item 1: Hexagon nut, M22 x 1.5/always replace nut following removal!	Tightening torque	460 Nm (340 ftlb.)

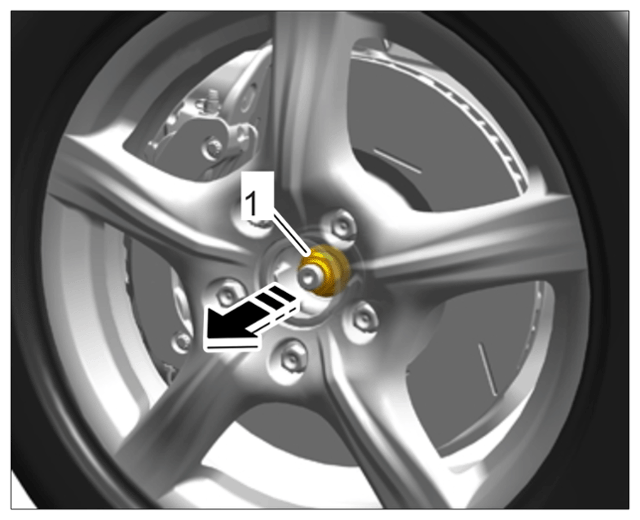

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Axle nut
Brake cover panel to wheel bearing housing	Item 2: Hexagon-head bolt, M6 x 16/always replace bolts following removal!	Tightening torque	8 Nm (6 ftlb.)

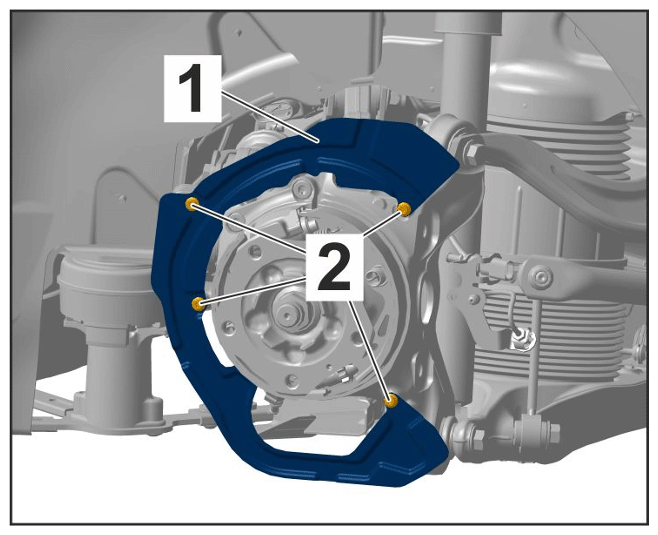

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for brake cover panel
Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm	Item 1/always replace screws following removal!	Initial tightening	3 Nm (2 ftlb.)
Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm	Item 1/always replace screws following removal!	Final tightening	+ 45°

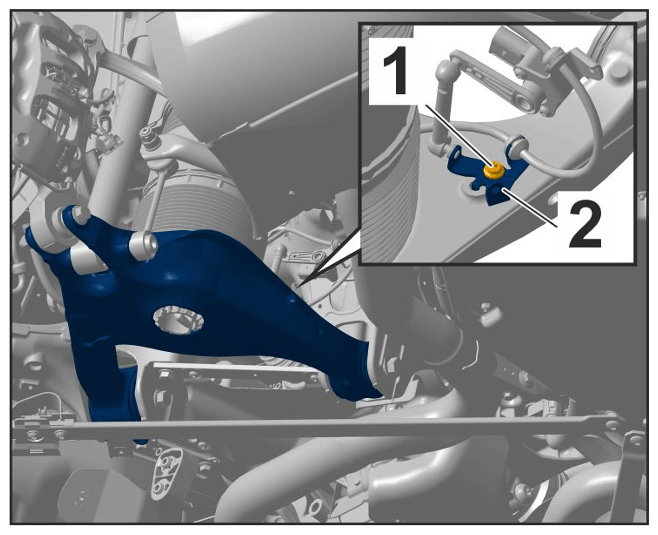

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm
Pressing in drive shaft	Press the drive shaft peg max. 10 mm into the wheel hub	Control value	+ 10 mm
