Installation Position

WARNING: This page is about a different variant/trim than selected.

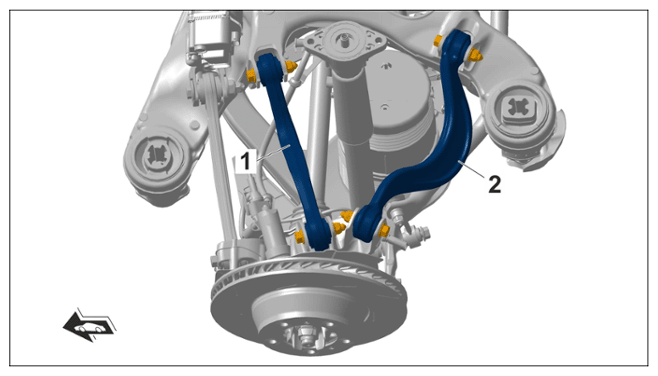

G15861939Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of upper control arm

1  Upper control arm, front
2  Upper control arm, rear
