Replacing Rear Axle Housing

Information

Threaded joints must only be tightened in zero position to prevent warping in the bearings.

1. Convert servo motor for rear axle steering.

   > 488319 REMOVING AND INSTALLING SERVO MOTOR FOR REAR AXLE STEERING

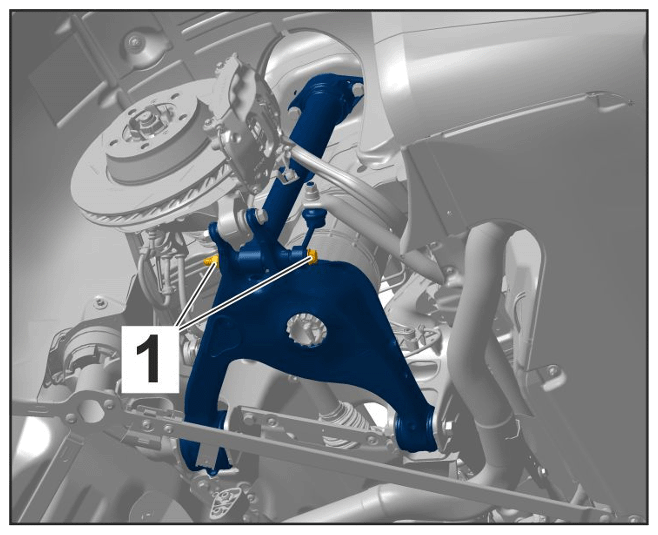

2. Remove threaded joint -1-  for trailing arm, shock absorber and connecting link on both sides of the vehicle and remove shock absorbers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for trailing arm with shock. absorber and connecting link

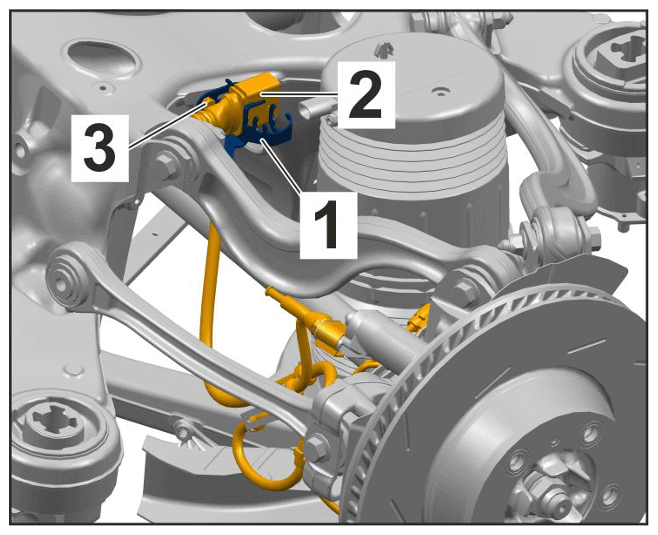

3. Remove cable holder -1-  on the rear axle housing on both sides of the vehicle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable holder mounting

   1. 3.1 Loosen electric connector -2-  from the holder and unscrew fastening screw -3-  .

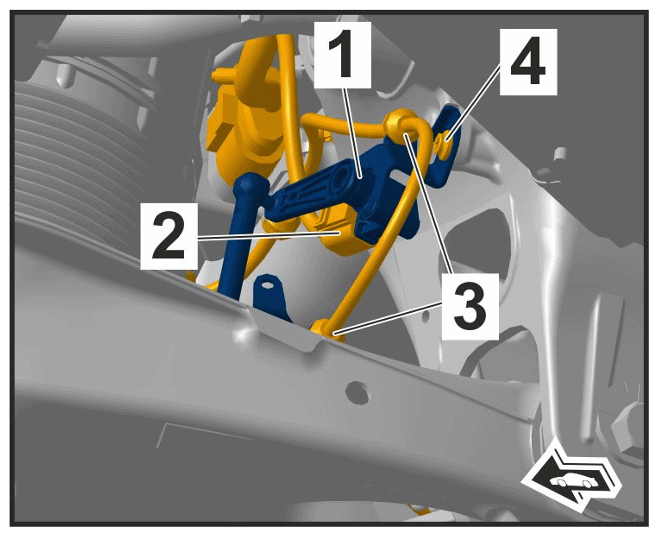

4. Loosen holder for rear angle sensor for headlight beam adjustment at the top -1-  on both sides of the vehicle from the rear axle housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for holder for ear angle sensor for headlight beam adjustment at the top

   1. 4.1 Unscrew fastening screw -4-  .

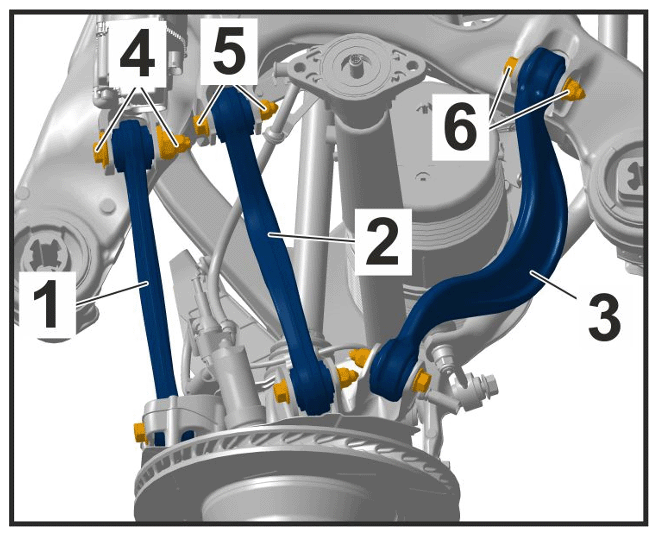

5. Remove tie rod -1-  and upper control arm -2 and 3-  on both sides of the vehicle from the rear axle housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Upper control arm mounting

   1. 5.1 Remove threaded joints -4, 5 and 6-  .

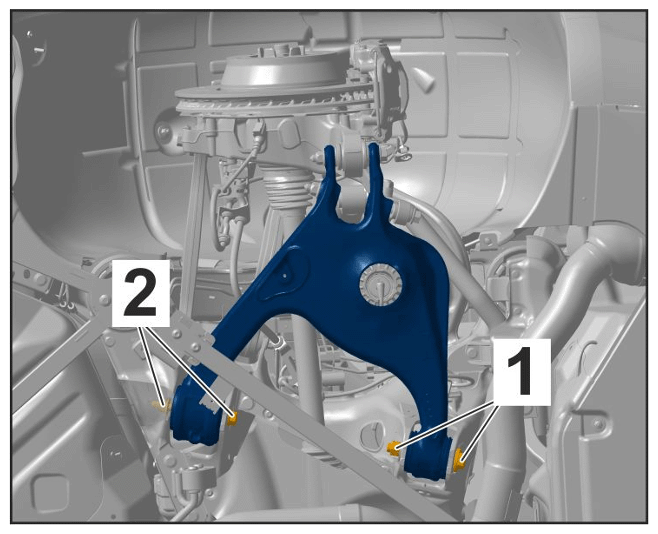

6. Remove threaded joints for trailing arm on rear axle housing on both sides of the vehicle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for trailing arm on rear axle housing

   1. 6.1 Remove eccentric threaded joint.
   2. 6.2 Remove threaded joint -2-

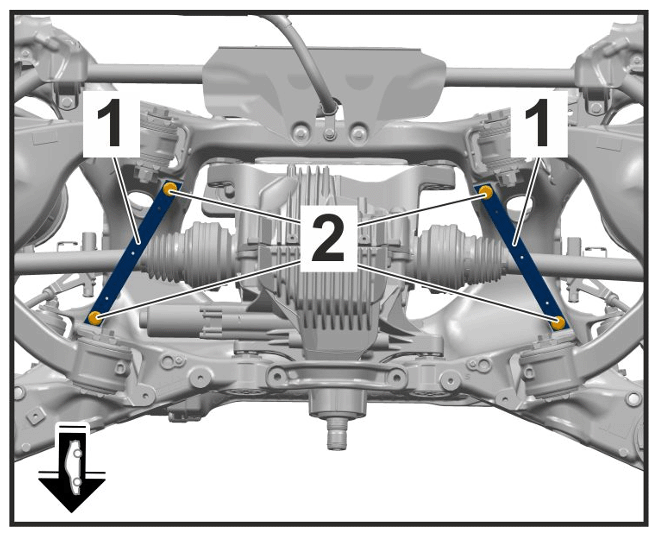

7. Convert struts -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for struts

   1. 7.1 Unscrew fastening screws -2-  and secure struts with new fastening screws > Initial tightening 50 Nm (36.9 ftlb.)  > Final tightening torque angle + 90°
8. Instill threaded joints for trailing arm on rear axle housing on both sides of the vehicle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for trailing arm on rear axle housing

   1. 8.1 Install eccentric threaded joint -1-  > Tightening torque 160 Nm (118 ftlb.)
   2. 8.2 Install new threaded joint -2-  > Initial tightening 70 Nm (52 ftlb.)  > Final tightening torque angle + 180)°
9. Fit tie rod -1-  and upper control arm -2 and 3-  on both sides of the vehicle on the rear axle housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Upper control arm mounting

   1. 9.1 Install threaded joint -4-  > Tightening torque 100 Nm (74 ftlb.)
   2. 9.2 Install new threaded joint -5-  > Initial tightening 70 Nm (52 ftlb.)  > Final tightening torque angle + 90°
   3. 9.3 Install new threaded joint -6-  > Initial tightening 70 Nm (52 ftlb.)  > Final tightening torque angle + 90°
10. Secure holder for rear angle sensor for headlight beam adjustment at the top -1-  on both sides of the vehicle on the rear axle housing.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for holder for rear angle sensor for headlight beam adjustment at the top

    1. 10.1 Tighten new fastening screw -4-  > Initial tightening 3 Nm (2 ftlb.)  > Final tightening + 45°
11. Fit cable holder -1-  on the rear axle housing on both sides of the vehicle.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable holder mounting

    1. 11.1 Tighten fastening screw -3-  and secure electric connector -2-  to the holder > Tightening torque 8 Nm (5.9 ftlb.)
12. Fit shock absorbers and install new threaded joint -1-  for trailing arm, shock absorber and connecting link on both sides of the vehicle > Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening torque angle + 180°

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for trailing arm with shock absorber and connecting link
