Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install rear cardan shaft.
> 393519 REMOVING AND INSTALLING REAR CARDAN SHAFT
Install exhaust system.
> 260119 Removing and installing exhaust system - information on "REMOVING "

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

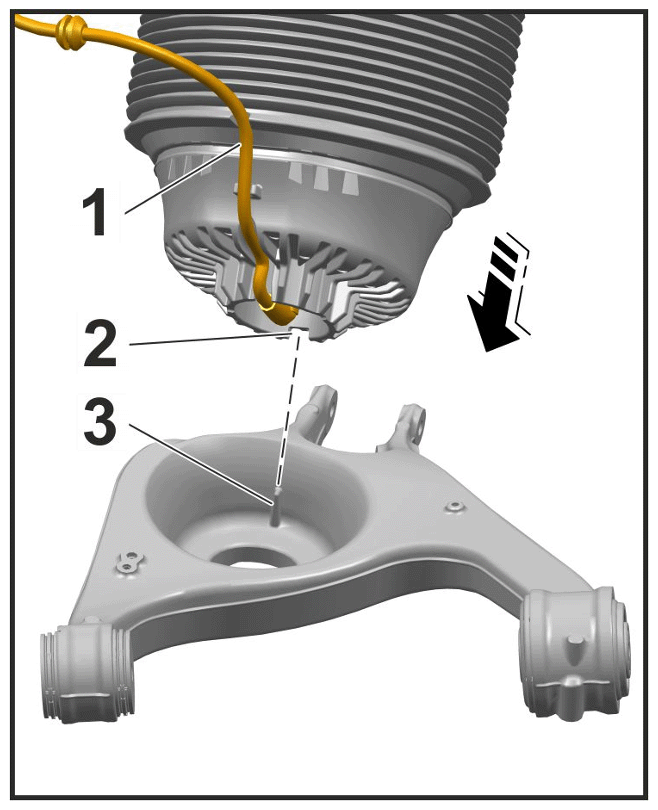

Positioning air spring bellows in trailing arm

Information
- The air spring bellows may only be filled if it was already positioned correctly in the trailing arm (to do this, lift lower trailing arm using lifting equipment) Positioning air spring bellows in trailing arm.
- Align air spring bellows with groove -2- at the lug -3- of the trailing arm.
Install coil spring or inflate air spring.
> Refer to the appropriate Service Information for Removing and installing coil spring

> 430117 BLEEDING AND FILLING THE LEVELLING SYSTEM
Install brake calliper on both sides of the vehicle.
> 474119 REMOVING AND INSTALLING REAR BRAKE CALLIPER
If the rear axle housing was replaced: Tighten axle nut -1- on both sides of the vehicle. Operate the brake while doing this (2nd mechanic required) > Tightening torque 460 Nm (340 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

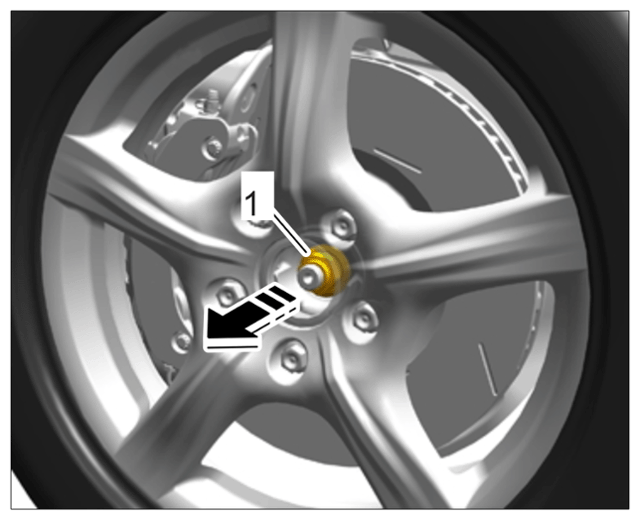

Axle nut (front axle shown)
Applies only to vehicles with PDCC: Start the 48 V vehicle electrical system.
> 270703 DISCONNECTING AND COMMISSIONING 48 V SYSTEM
Only for PHEV vehicles: Fill in coolant and bleed the cooling system.
> WM, 190107 BLEEDING THE COOLING SYSTEM
Perform suspension alignment.
> 449503 PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT
