Installing Rear Axle Housing

1. 1.1 Position elevating platform > VAS 6832 - Master Gear unit elevating platform  with > VAS 6832/7 - assembly fixture - Panamera G2  under the vehicle and raise it carefully.
2. 1.2 Before the rear axle housing is in installation position, connect and lock electric plug connection for PASM -1-  on the shock absorber -2-  at both sides of the vehicle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for PASM on shock absorber

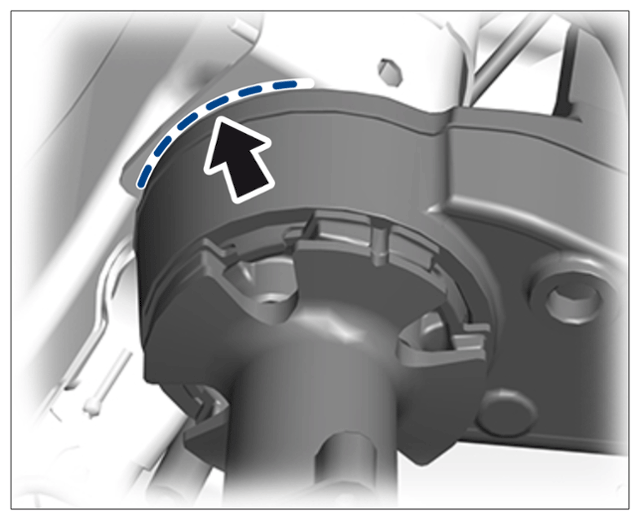

3. 1.3 Align rear axle housing according to the markings applied before removal. Marking (example)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking (example)

4. 1.4 Screw in and tighten fastening screws -1-  on the rear axle housing > Initial tightening 130 Nm (95.9 ftlb.)  > Final tightening torque angle + 180°

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

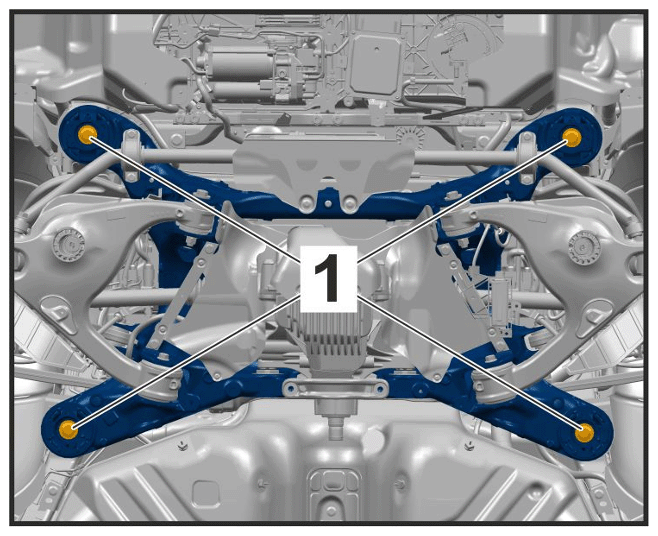

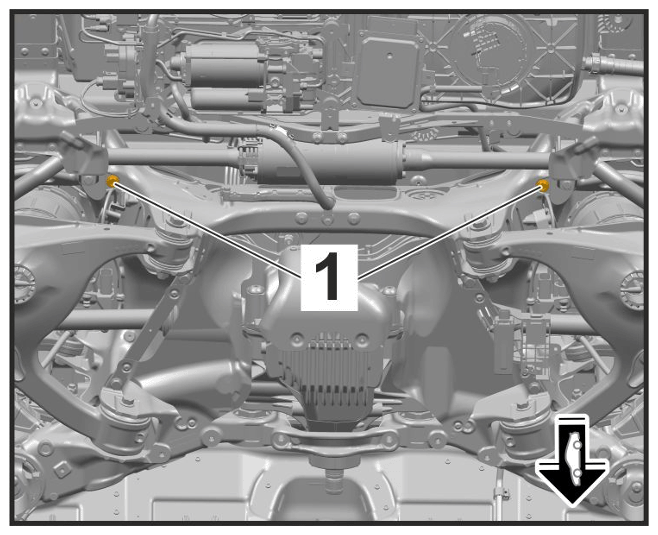

   Mounting for rear axle housing

5. 1.5 Lower > VAS 6832 - Master Gear unit elevating platform  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

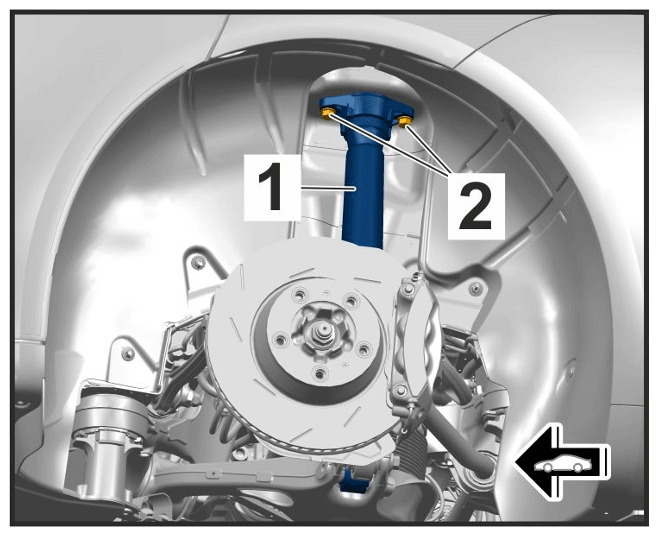

Mounting for shock absorber on body

1. 2.1 Tighten fastening screws -2-  > Tightening torque 50 Nm (36.9 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for damper

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

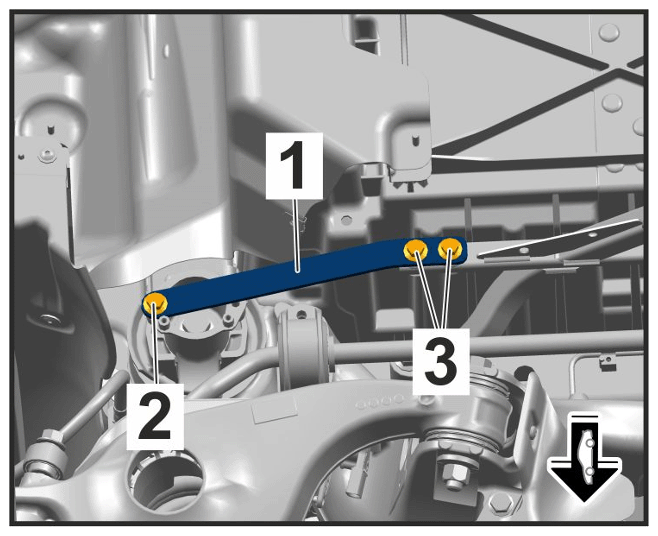

Mounting for rear-axle strut

1. 4.1 Tighten fastening screws -2-  > Tightening torque 20 Nm (14.8 ftlb.)
2. 4.2 Tighten fastening screws -3-  > Tightening torque 20 Nm (14.8 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for heat insulation in luggage compartment pan

1. 5.1 Tighten fastening screws -2-  > Tightening torque 2.5 Nm (1.8 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections on rear axle housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

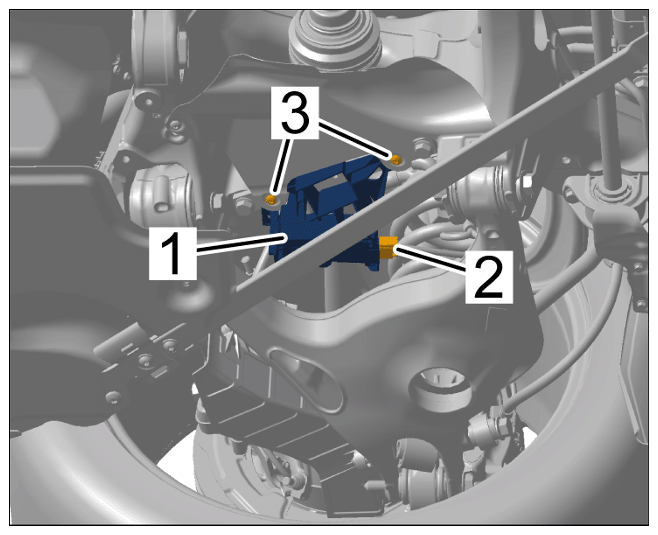

Electric plug connection for RDK control unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

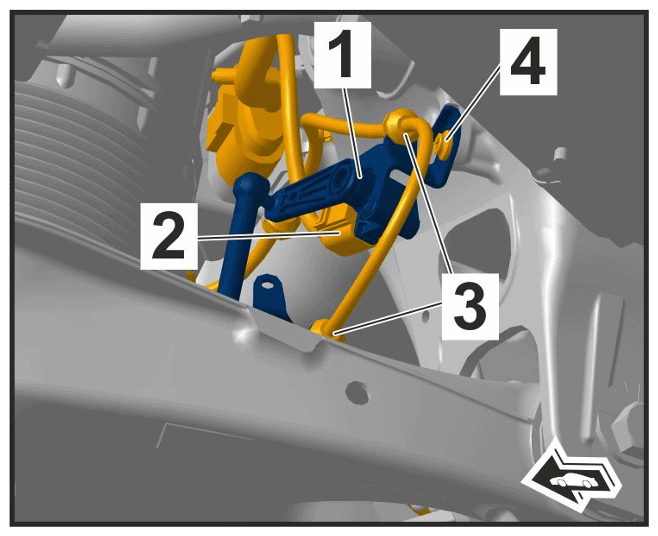

Mounting for holder for rear angle sensor for headlight beam adjustment at the top

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

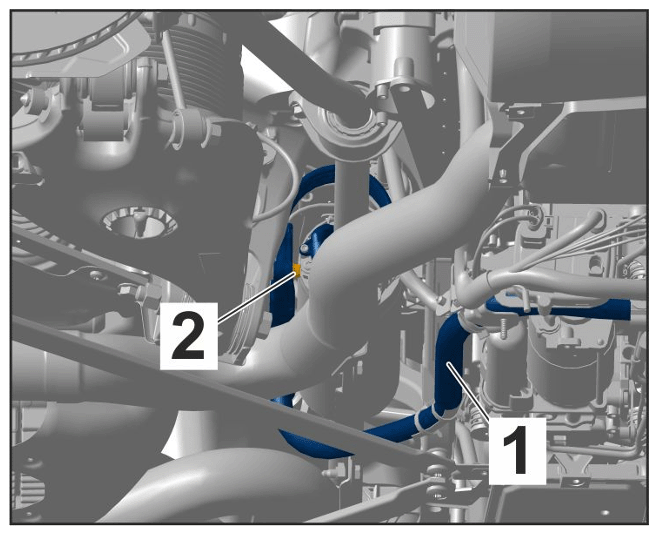

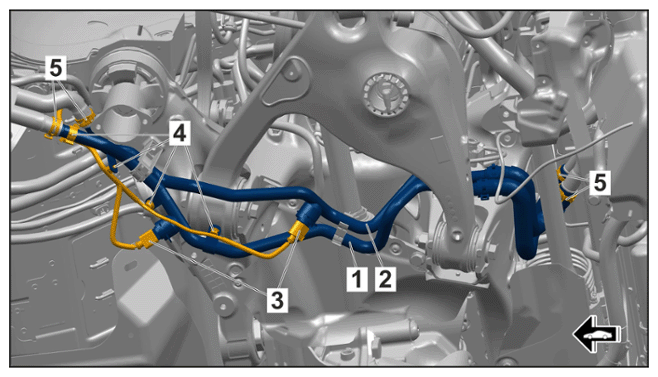

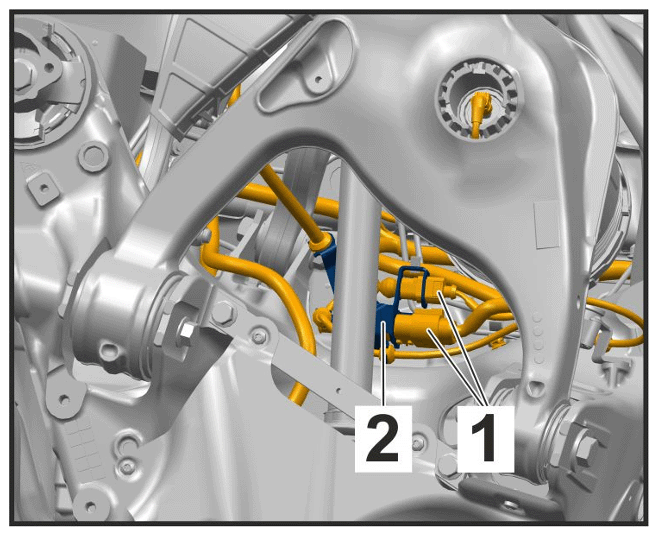

Mounting for coolant lines (PHEV only)

1. 9.1 Connect coolant hoses and close clamps using > VAS 6889 - spring band clamp pliers-5-  .
2. 9.2 Secure brackets -4-  .
3. 9.3 Connect and lock electric connectors -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

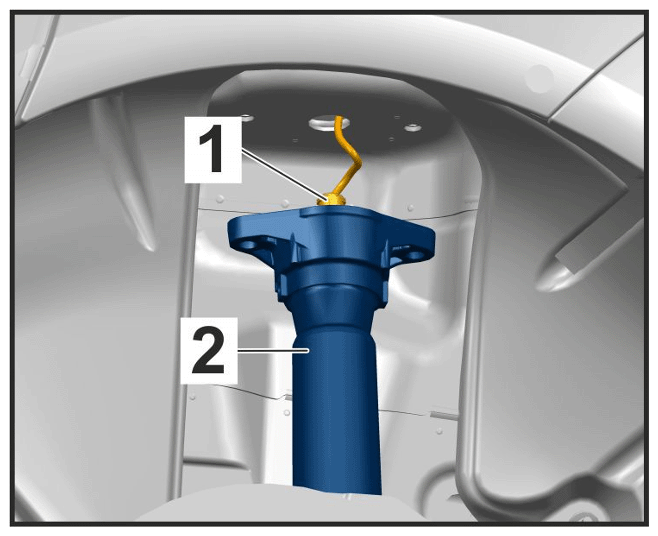

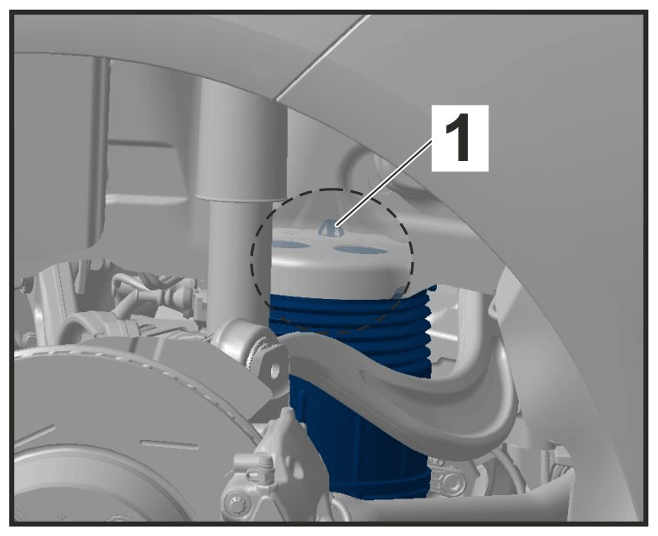

Upper clip on air spring bellows

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

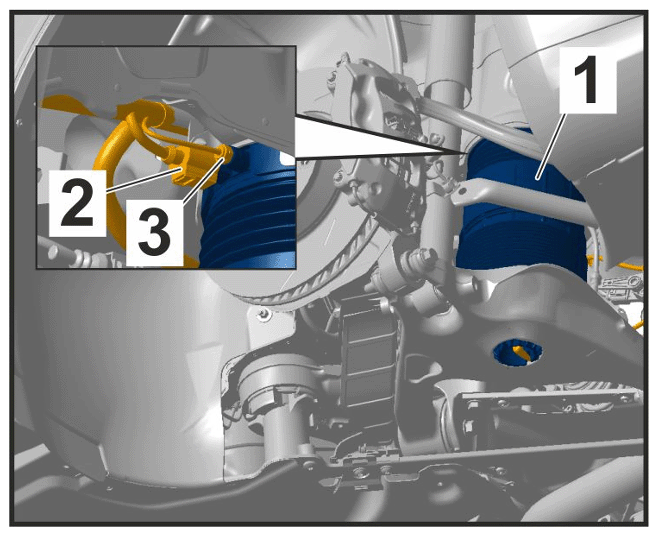

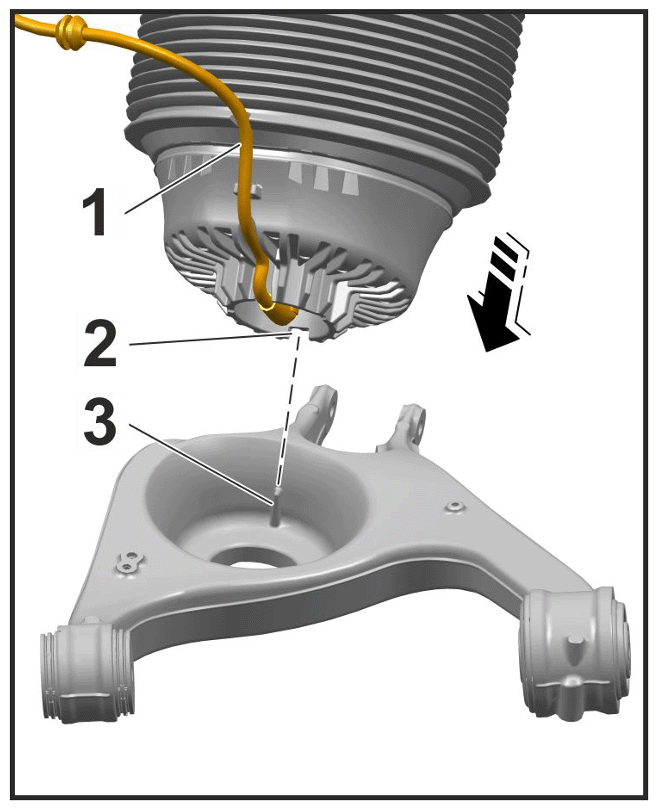

Positioning air spring bellows in trailing arm

1. 11.1 Route electric line -1-  in the guides on the air spring bellows.
2. 11.2 Align air spring bellows with groove -2-  at the lug -3-  of the trailing arm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connections on air spring bellows

1. 12.1 Connect and lock electric connector -2-  .
2. 12.2 Tighten Voss threaded joint for the air line -3-  > Tightening torque 2 Nm (1.5 ftlb.)

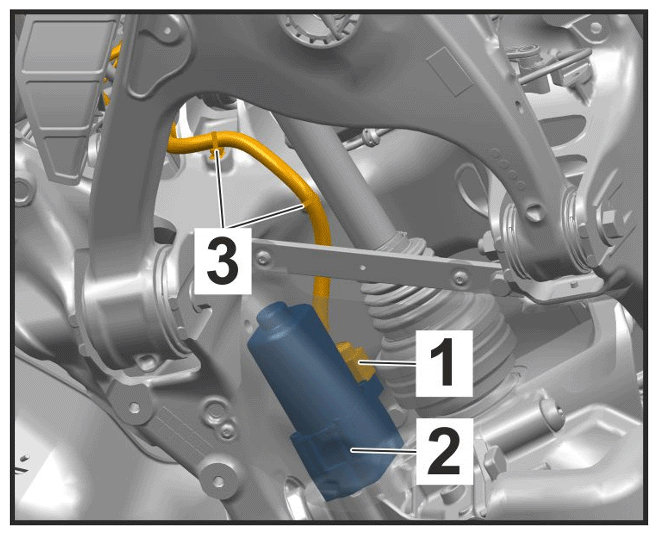

1. 13.1 Connect and lock electric plug connection -1-  on servo motor for rear-differential lock -2-  and secure line to the brackets -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for servo motor for rear-differential lock

2. 13.2 Install protective plate for drive shaft at the left -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for protective plate for drive shaft at the left

   1. 13.2.1 Tighten fastening screws -2-  > Tightening torque 8 Nm (5.9 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections for rear axle steering

1. 15.1 Secure PDCC wire harness -1-  to the rear axle housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for PDCC wire harness on rear axle housing

   1. 15.1.1 Tighten fastening screw -2-  .
2. 15.2 Screw in and tighten fastening screw on the rear axle housing -2-  .
3. 15.3 Screw in and tighten fastening screw for ground line -3-  .
4. 15.4 Secure PDCC wire harness to the brackets -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

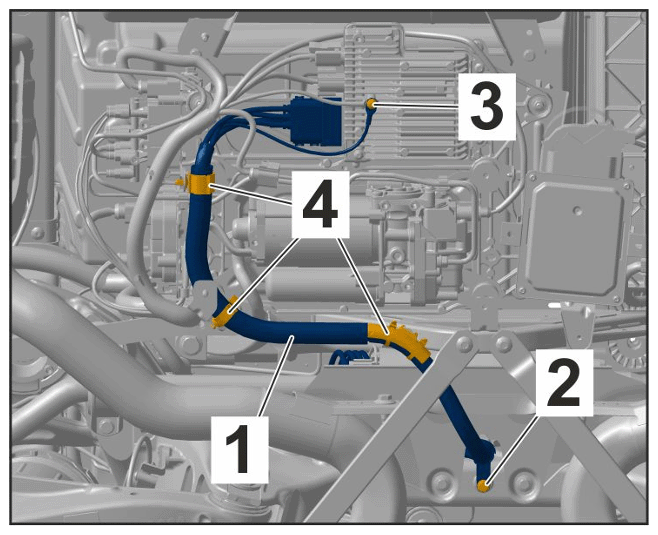

   Mounting for PDCC wire harness

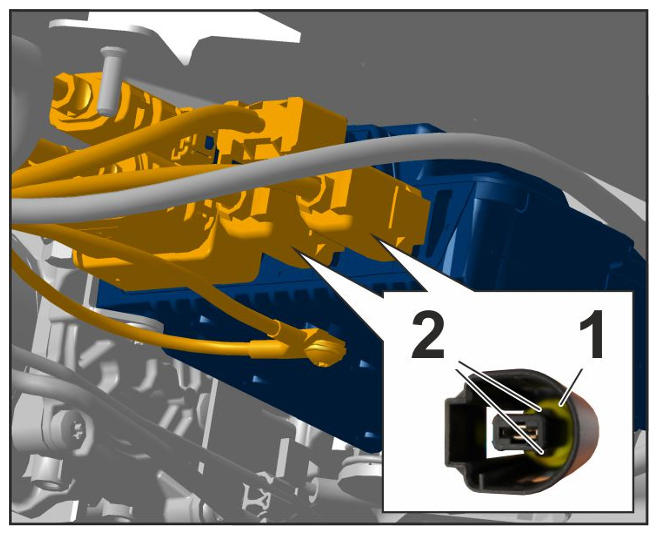

   Information

   Before connecting the 48 V connectors, check whether the sealing ring -1-  is positioned under the locking lugs -2-  in the connectors.

   Carefully press the sealing ring back over the locking lugs if necessary.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Correct position of sealing ring

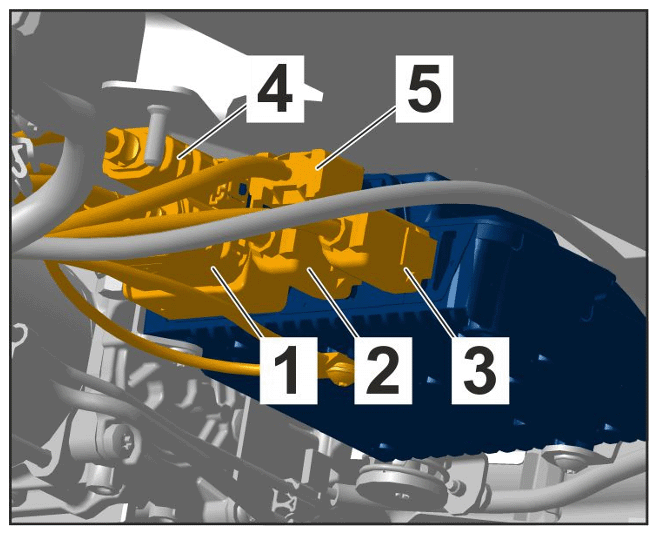

5. 15.5 Connect and lock electric plug connections on the PDCC control unit in the sequence -1 to 5-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sequence for connecting electric plug connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

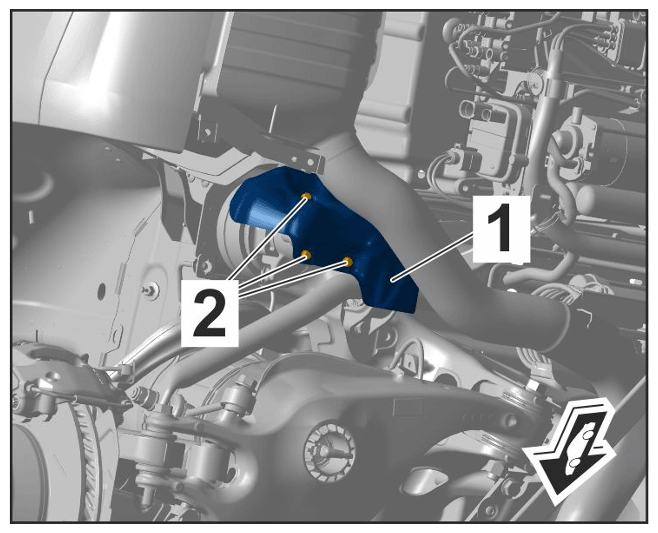

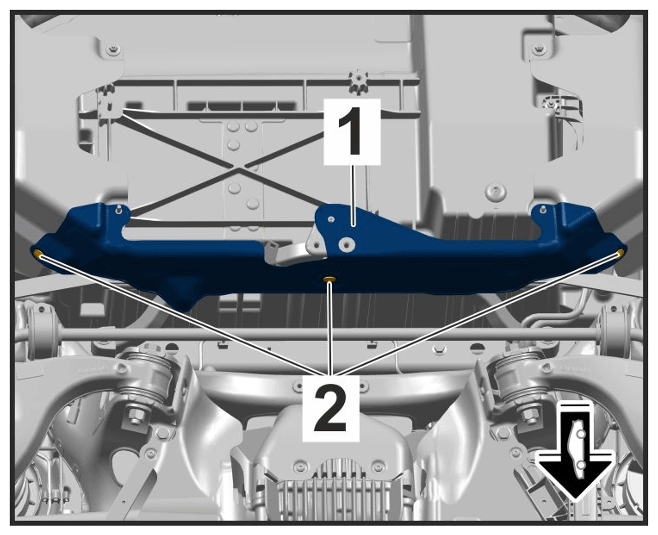

Mounting for protective plate

1. 16.1 Tighten fastening screws -2-  > Tightening torque 7 Nm (5.2 ftlb.)
