WM, 425855 Replacing Rear Wheel Bearing: Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image

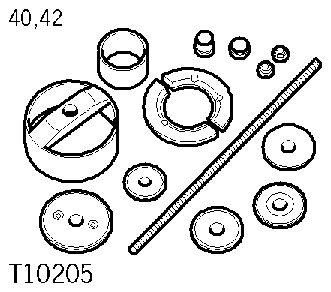

Attachments	VW tool	> T10205	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

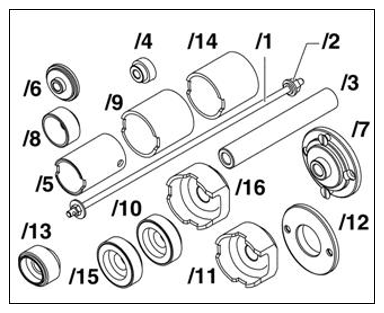

Assembly tool	VW tool	> T10230	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

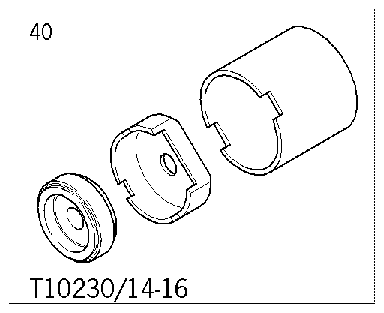

Supplementary set	VW tool	> T10230/14-16	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

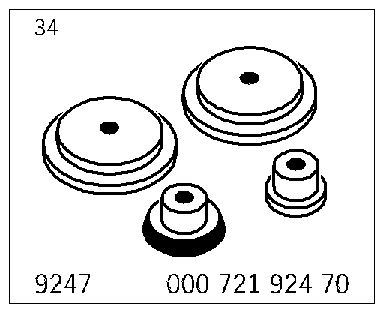

Pressure pieces (4)	Special tool	> 9247	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

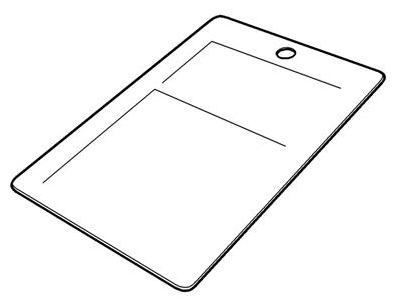

sensor gauge	VW tool	> T10473	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

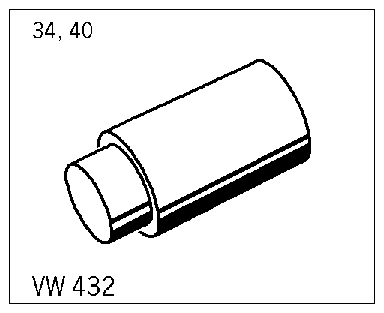

Pressure piece	VW tool	> VW432	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separating device	Vehicle-specific service equipment	> VAS 251 413	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

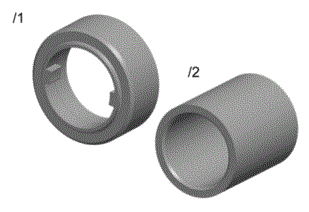

Pipe	VW tool	> VW459	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
