Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

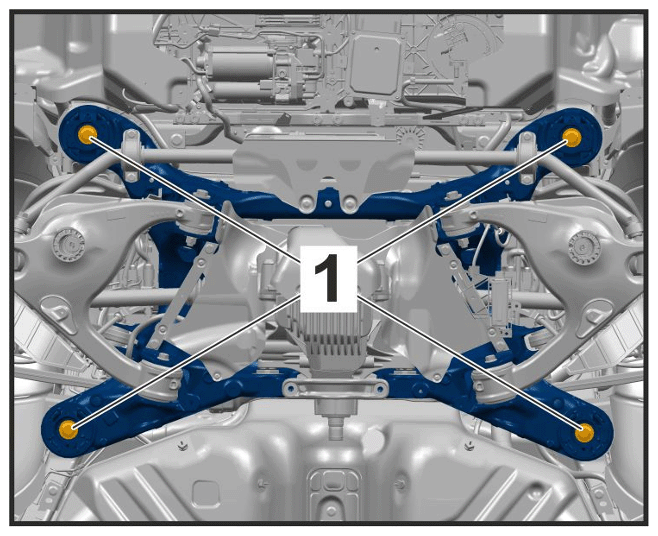

Rear axle housing to body	Item 1: Hexagon head bolt M14 x 1.5 x 145/Always replace bolts following removal!	Initial tightening	130 Nm (95.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear axle housing
Rear axle housing to body	Item 1: Hexagon-head bolt M14 x 1.5 x 145/Always replace bolts after removal!	Final tightening torque angle	+ 180°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear axle housing

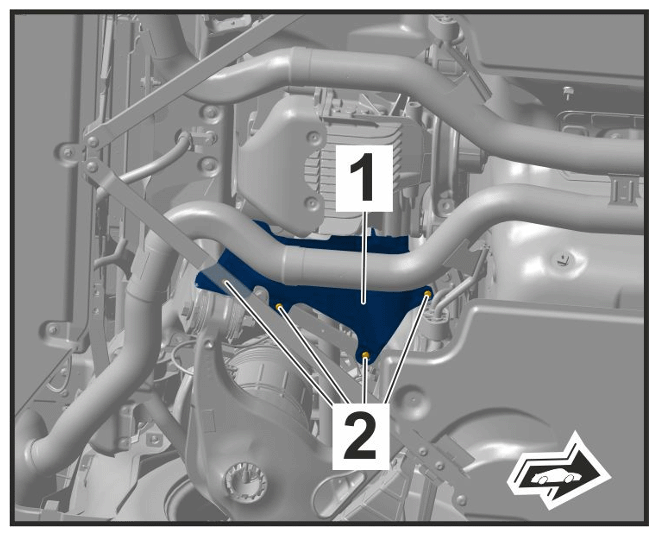

Drive shaft protective plate to rear axle housing (right with TPM control unit holder)	Item 2: Hexagon round-head bolt M6 x 12	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for protective plate for drive shaft

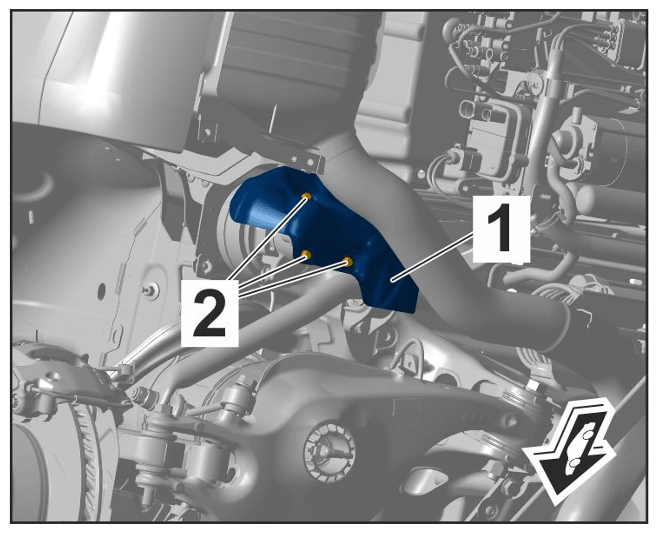

Bearing protective plate to rear axle housing	Item 2: Hexagon-head bolt M5	Tightening torque	7 Nm (5.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Protective plate mount
Balancer to rear axle housing	Hexagon-head bolt, M10 x 30	Tightening torque	55 Nm (40.6 ftlb.)

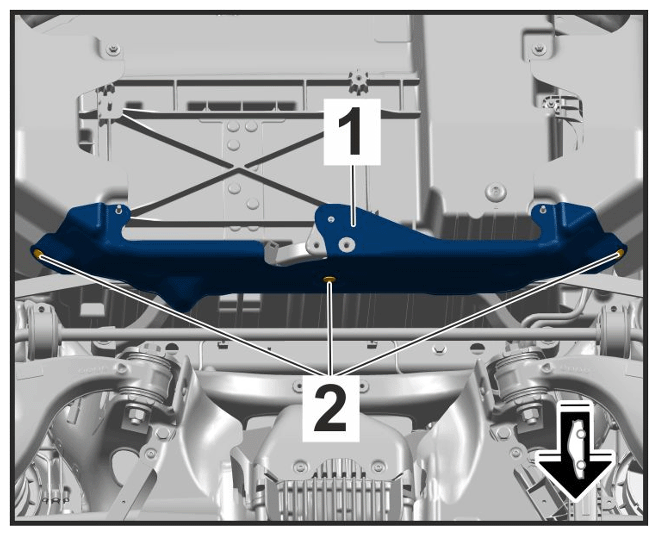

Rear axle strut to rear axle housing mount	Item 2: Hexagon-head bolt M8 x 25	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear-axle strut

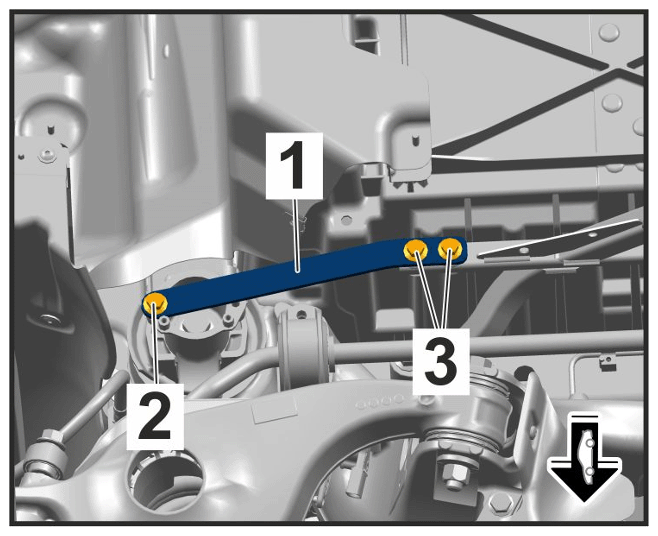

Rear axle strut to body strut	Hexagon-head bolt M8 x 25	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear-axle strut
Heat insulation in boot pan	Item 2: Internal hexagon roundhead bolt	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for heat insulation in luggage compartment pan

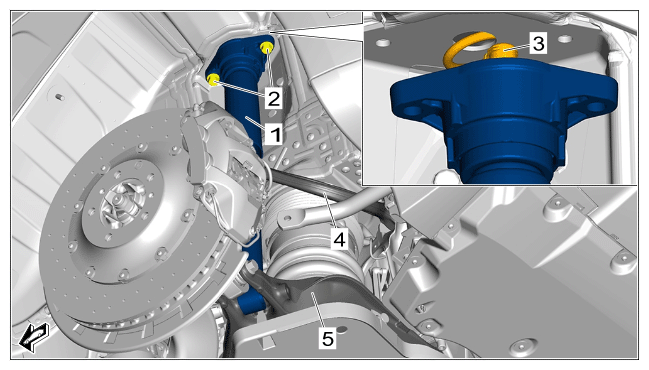

Shock absorber/spring damper to body	Item 2: Hexagon-head bolt M10 x 42	Tightening torque	50 Nm (36.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear shock absorber/spring damper

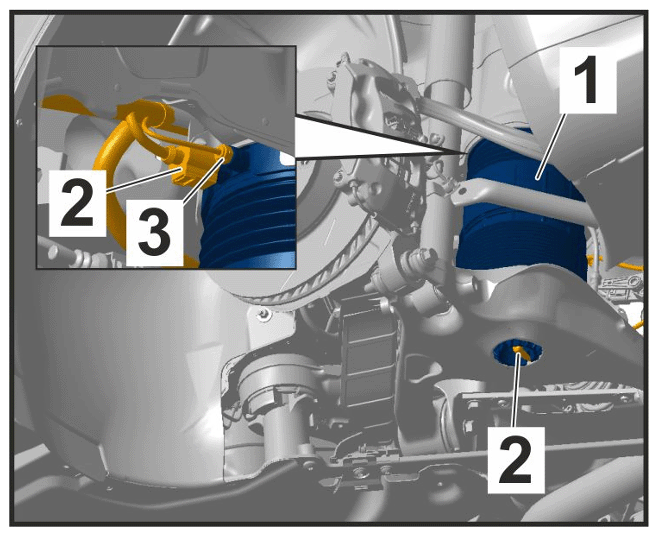

Air line to rear air spring	Item 3: Union nut	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Plug connections on air spring bellows

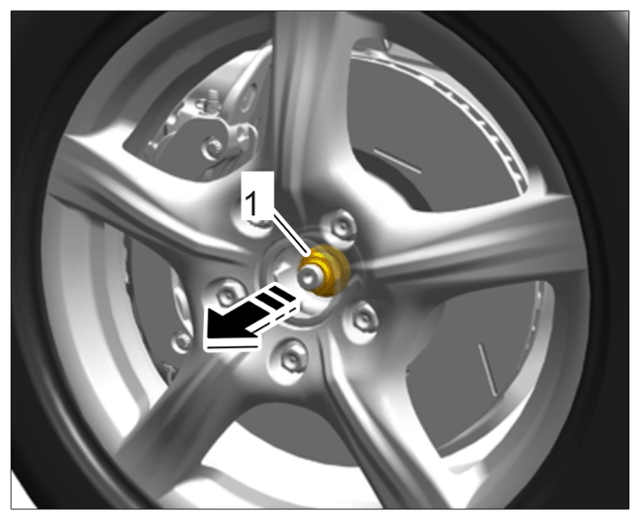

Drive shaft to wheel hub	Item 1: Hexagon nut, M22 x 1.5/alway s replace nut following removal!	Tightening torque	460 Nm (340 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Axle nut
