Heat Shield
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

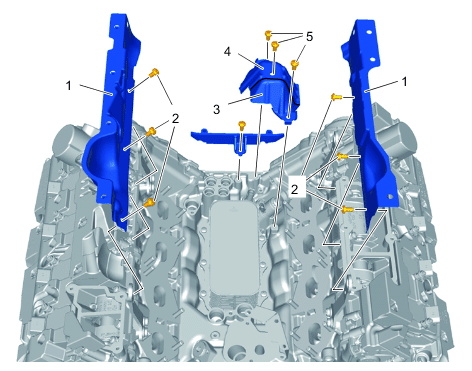

Heat shield
| 1 |
Heat shield on cylinder head cover, inner |
| 2 |
Screws > Tightening torque 9 Nm (6.5 ftlb.) |
| 3 |
Heat shield - front part |
| 4 |
Heat shield - rear part |
| 5 |
Screws, M6 x 12 > Tightening torque 9 Nm (6.5 ftlb.) |
