Exhaust System

WARNING: This page is about a different variant/trim than selected.

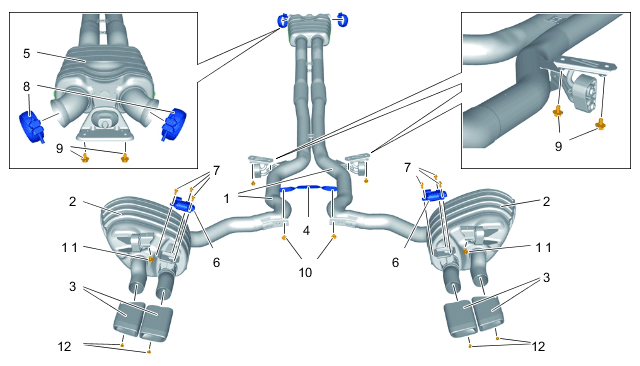

Fig 1: Exhaust System Components Location With Torque Specification (V8 Turbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust system (figure shows V8 Turbo)

1	Exhaust system
2	Rear silencer
3	Tailpipe
4	Strut
5	Front silencer
6	Actuator for exhaust flap on rear silencer
7	Screws, M5 > Tightening torque 5 Nm (3.5 ftlb.)
8	Ball clamp/replace > Tightening torque 35 Nm (26 ftlb.)
9	Screws, M8 > Tightening torque 23 Nm (17 ftlb.)
10	Screws, M8 x 25 > Tightening torque 23 Nm (17 ftlb.)
11	Screws, M8 x 22 > Tightening torque 23 Nm (17 ftlb.)
12	Screws, M6 x 12 > Tightening torque 8 Nm (6 ftlb.) +/- 1 Nm (0.5 ftlb.)
not pictured	Exhaust clamp > Tightening torque 33 Nm (24 ftlb.) Used when replacing rear silencer.
