Catalytic Converter Heat Shield (Bolted, "Thermamax")

WARNING: This page is about a different variant/trim than selected.

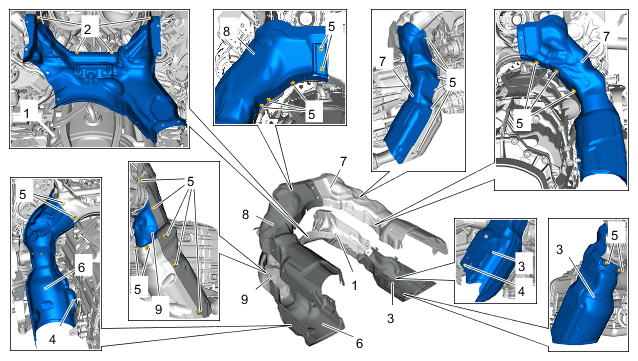

Fig 1: Catalytic Converter Heat Shield Components Location With Torque Specification (Bolted To Purge Air Duct), Thermomax

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Catalytic converter heat shield (bolted to purge air duct), Thermomax

1	Lower centre catalytic converter heat shield
2	Screws, M6 x 12 > Tightening torque 8 Nm (5.9 ftlb.)
3	Lower right catalytic converter heat shield
4	Screws M8 x 16 > Tightening torque 20 Nm (14.8 ftlb.)
5	Screws, M6 x 12 > Tightening torque 8 Nm (5.9 ftlb.)
6	Lower left catalytic converter heat shield
7	Upper right catalytic converter heat shield
8	Upper left catalytic converter heat shield
9	Front lower left catalytic converter heat shield

Heat shield on catalytic converter and turbocharger:

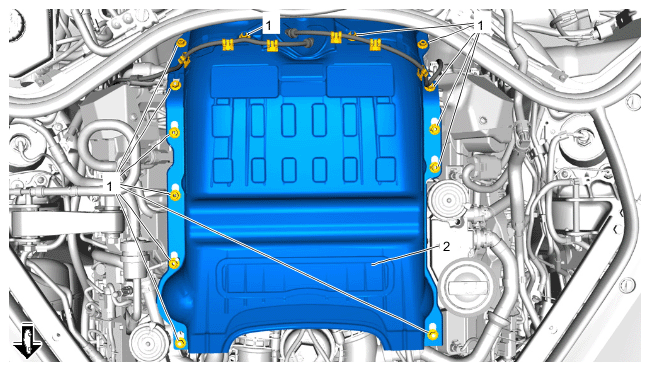

Fig 2: Turbocharger Heat Shield Components Location With Torque Specification - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger heat shield, V8 turbo (similar to illustration)

1	M6 nuts > Tightening torque 9 Nm (6.6 ftlb.)
2	Shield turbocharger
3	Nuts > Tightening torque 5 Nm (3.7 ftlb.)
