Charge-Air Cooling

WARNING: This page is about a different variant/trim than selected.

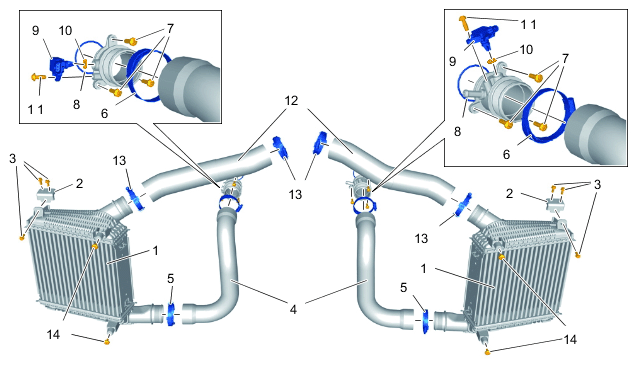

Fig 1: Charge-Air Cooler Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Charge-air cooler

1	Charge-air cooler
2	Holder
3	Screws, M6 x 20 > Tightening torque 9 Nm (6.5 ftlb.)
4	Pressure hose
5	Screw-type clamp > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
6	Screw-type clamp > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
7	Screws, M6 x 18 > Tightening torque 8 Nm (6 ftlb.)
8	O-ring/replace
9	Boost pressure sensor
10	O-ring/replace
11	Screw > Tightening torque 5 Nm (3.5 ftlb.)
12	Pressure hose
13	Screw-type clamp > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
14	Screw, M6 x 14 > Tightening torque 6.5 Nm (4.75 ftlb.)
