Removing Tank Vent

WARNING: This page is about a different variant/trim than selected.

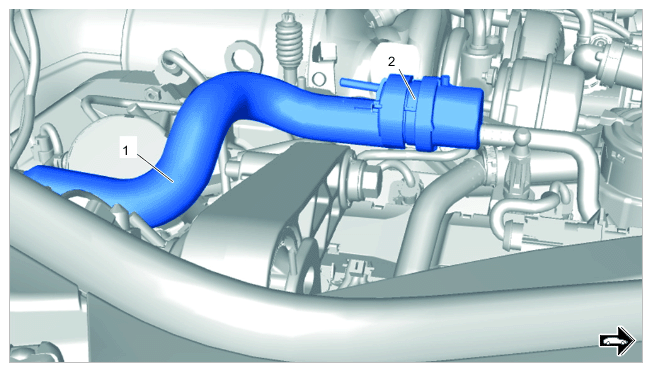

  1. Disconnect tank vent line -1-  from the tank vent valve -2-  .
    G15880707Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tank ventilation line

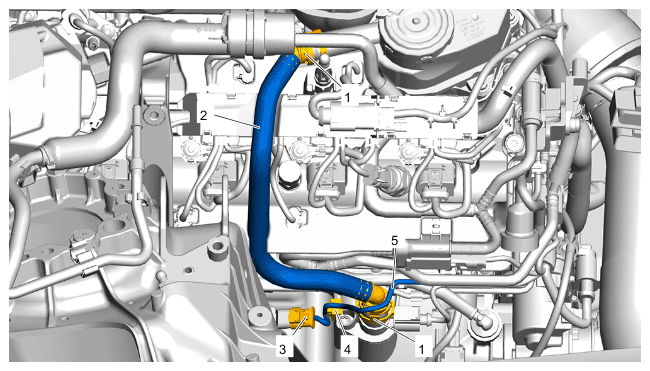

  2. Remove positive crankcase ventilation line -2-  on the right side.
    1. 2.1 Release and disconnect electric plug connection -3-  .
    2. 2.2 Unclip retaining clip -4-  for electric wire harness -5-  .
    3. 2.3 Release quick connectors -1-  and disconnect positive crankcase ventilation line -2-  .
    G15880708Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vent line

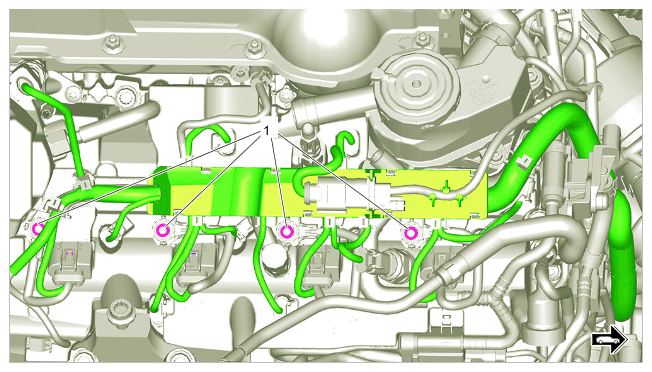

  3. Screw off fastening nuts -1-  .
    G15880709Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable duct for engine wire harness (cylinders 1-4)

  4. Disconnect engine wire harness (cylinders 1-4).

    > WM, 975219 REMOVING AND INSTALLING ENGINE WIRE HARNESS

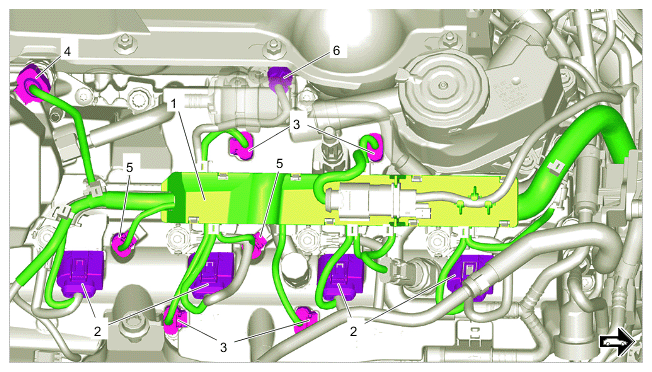

    1. 4.1 Release and disconnect electric plug connections -2 to 5-  .
    2. 4.2 Pull tank vent line off the holder as far as required until the electric plug connection -6-  is accessible.
    3. 4.3 Release and disconnect electric plug connection -6-  .
    4. 4.4 Carefully lift cable duct for engine wire harness -1-  aside to allow access to the tank vent line.
    5. 4.5 Expose tank vent line as far as the tank ventilation sensor.
    G15880710Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections on engine wire harness (cylinders 1-4)

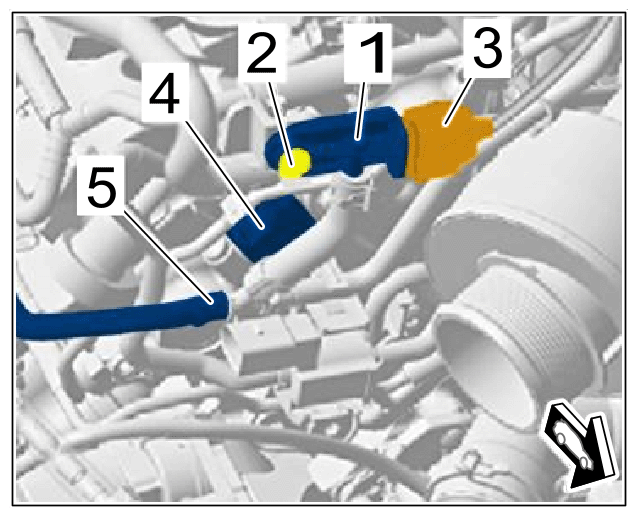

  5. Remove tank ventilation sensor (USA) or dummy (cylinders 1-4) -1-  .
    1. 5.1 Unscrew and remove fastening screw -2-  .
    2. 5.2 Release and disconnect electric plug connection -3-  .
    3. 5.3 Remove tank ventilation sensor (USA) or dummy -1-  together with the vent line -5-  from holder -4-  .
    G15880711Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tank ventilation sensor (cylinders 1-4)

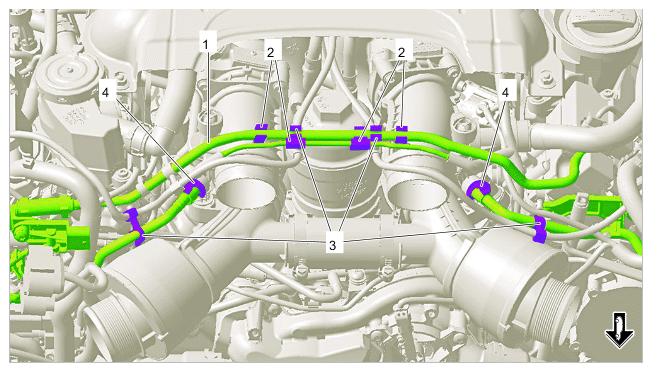

  6. Expose tank vent line.
    1. 6.1 Unclip tank ventilation -1-  from retaining clips -2 and 3-  .
    2. 6.2 Release and disconnect quick connectors -4-  .
    3. 6.3 Close off connections using suitable stoppers.
    G15880712Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tank vent line over intake pipe

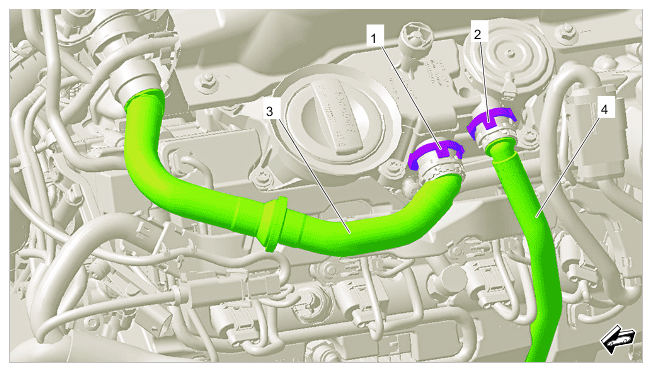

  7. Disconnect positive crankcase ventilation lines.
    1. 7.1 Release and disconnect quick connector -1-  .
    2. 7.2 Move line -3-  aside so that the cable duct is accessible.
    3. 7.3 Release and disconnect quick connector -2-  .
    4. 7.4 Close off connections using suitable stoppers.
    5. 7.5 Move line -4-  aside so that the cable duct is accessible.
    G15880713Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Positive crankcase ventilation lines

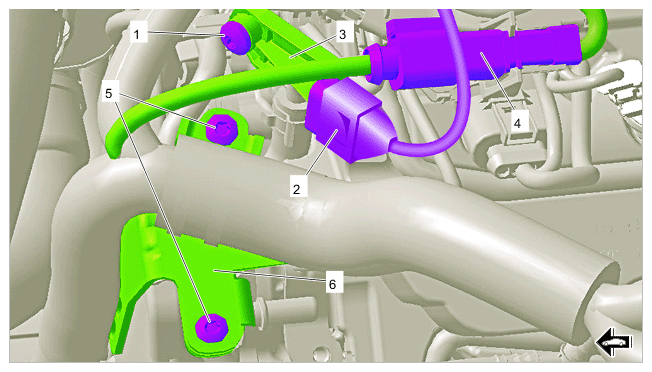

  8. Remove tank ventilation sensor (USA) or dummy (cylinders 5-8) -3-  .
    1. 8.1 Unclip electric plug connection -4-  from the holder and move the line aside.
    2. 8.2 Unscrew fastening screws -5-  .
    3. 8.3 Move holder -6-  with electric wire harness aside.
    4. 8.4 Unscrew and remove fastening screw -1-  .
    5. 8.5 Release and disconnect electric plug connection -2-  .
    6. 8.6 Remove tank ventilation sensor (USA) or dummy -3-  .
    G15880714Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tank ventilation sensor (cylinders 5-8)

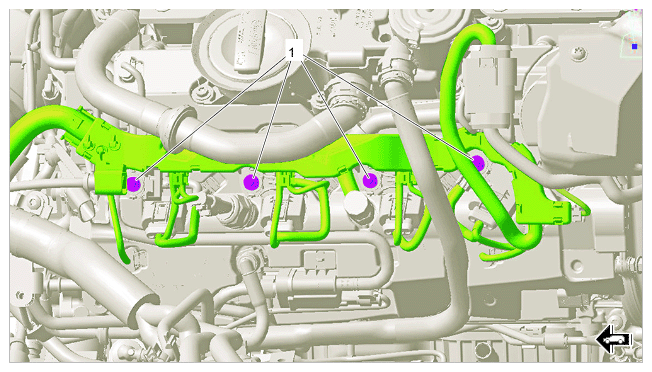

  9. Screw off fastening nuts -1-  .
    G15880715Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable duct for engine wire harness (cylinders 5-8)

  10. Disconnect engine wire harness (cylinders 5-8).

    > WM, 975219 REMOVING AND INSTALLING ENGINE WIRE HARNESS

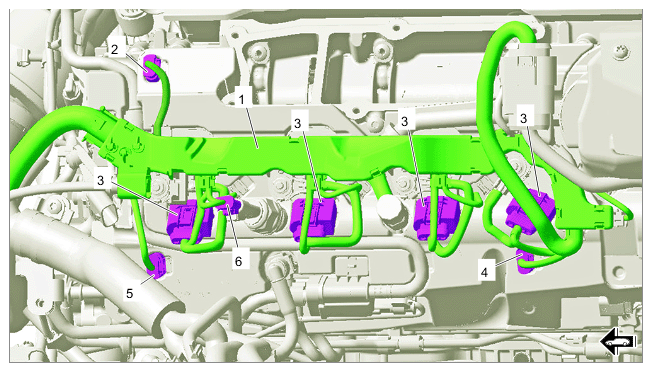

    1. 10.1 Release and disconnect electric plug connections -2 to 6-  .
    2. 10.2 Carefully lift cable duct for engine wire harness -1-  aside to allow access to the tank vent line.
    G15880716Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections on engine wire harness (cylinders 5-8)

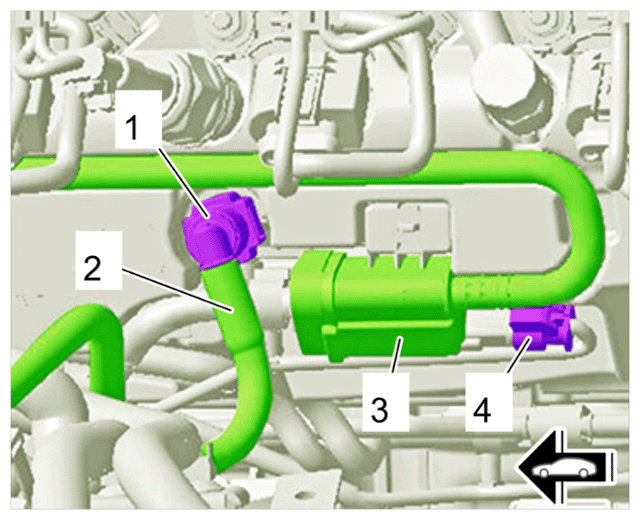

  11. Expose tank vent valve (cylinders 5-8).
    1. 11.1 Release and disconnect quick connector -1-  .
    2. 11.2 Close off connections using suitable stoppers.
    3. 11.3 Move vacuum line -2-  aside.
    4. 11.4 Pull tank vent valve -3-  off the holder so that the electric plug connection -4-  is accessible.
    5. 11.5 Release and disconnect electric plug connection -4-  .
    G15880717Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tank vent valve (cylinders 5-8)

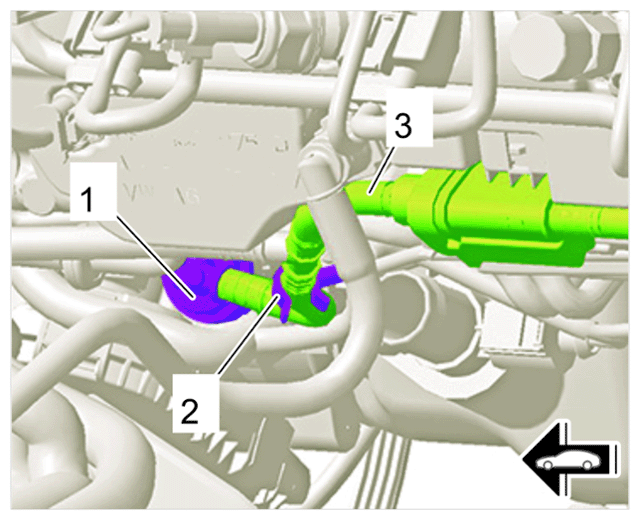

  12. Remove tank vent line.
  1. 12.1 Unclip retaining clip -2-  from tank vent line -3-  .
  2. 12.2 Release and disconnect quick connector -1-  .
  3. 12.3 Close off connections using suitable stoppers.
  4. 12.4 Guide out tank vent line -3-  .
G15880718Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Quick connector on tank vent line (cylinders 5-8)
