Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Wheel to wheel hub	Item 1: Wheel bolts	Tightening torque	160 Nm (118 ftlb.)

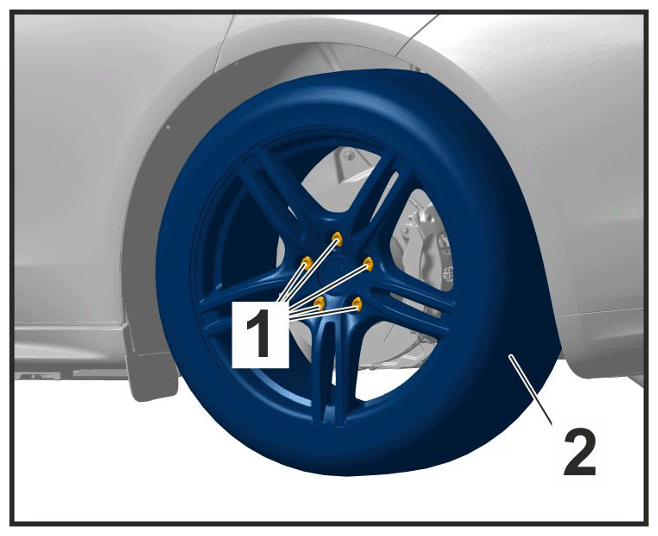

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wheel mounting
Union nut on valve		Tightening torque	4 Nm (3 ftlb.)

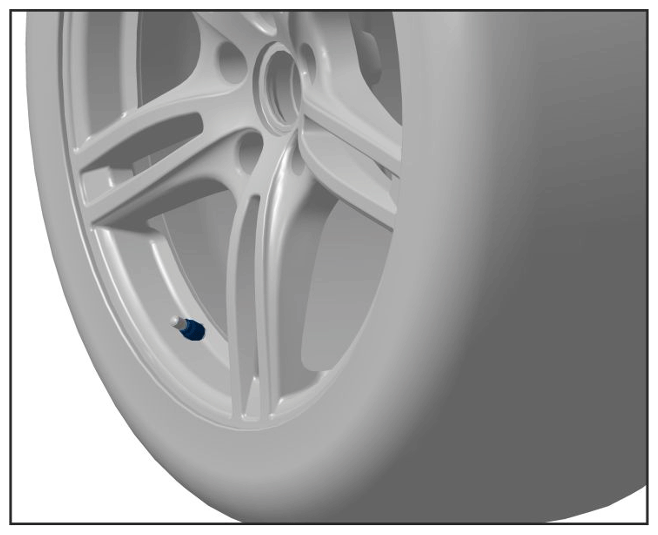

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Union nut on valve
Wheel electronics on rim	Hexagon roundhead bolt, M5x 11 (self-locking) - replace bolt	Tightening torque	4 Nm Nm (3 ftlb.)

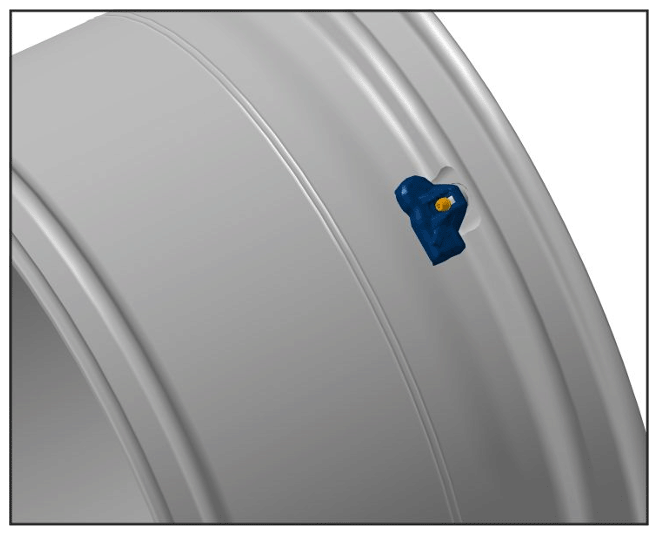

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wheel electronics on rim
