Rear Axle Steering

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance
Servo motor for rear axle steering to rear axle housing Hexagon-head bolt, M12 x 1.5 x 100 (top)/M12 x 1.5 x 75 (bottom); observe tightening sequence!/Always replace screws following removal! Initial tightening 70 Nm (52 ftlb.)
G15862733Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for servo motor for rear axle steering
Servo motor for rear axle steering to rear axle housing Hexagon-head bolt, M12 x 1.5 x 100 (top)/M12 x 1.5 x 75 (bottom); observe tightening sequence!/Always replace screws following removal! Final tightening + 90°

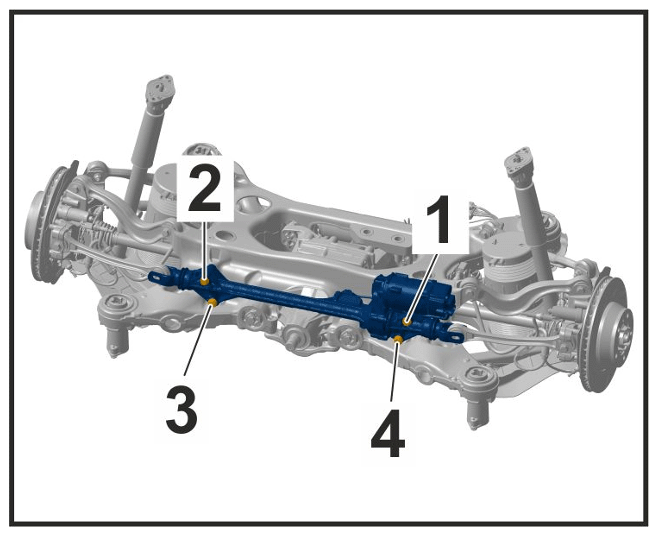

G15862734Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for servo motor for rear axle steering
