Installing Drive Belt For Generator

1. 1.1 Fit drive belt for generator -3-  on the pulleys and align it along the grooves on the pulleys. First release tensioning roller.
2. 1.2 With the belt tensioner slackened -2-  , fit lever with Torx wrench T55 -1-  on the belt tensioner -2-  and pre-tension it in an anticlockwise direction.
3. 1.3 Fit drive belt for generator -3-  on the tensioning roller.
4. 1.4 Carefully allow the belt tensioner -2-  to turn back to its original position, thereby tensioning drive belt for generator -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

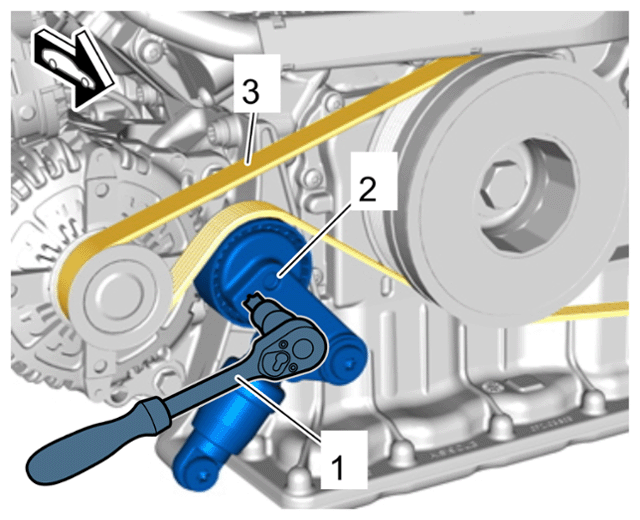

Belt tensioner for generator
