Removing Pressure Sensor

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remove pressure sensor -1-  .
    1. 1.1 Release and unplug electric plug connection -2-  .
    2. 1.2 Unscrew and remove screw -3-  .
    3. 1.3 Pull off pressure sensor -1-  .

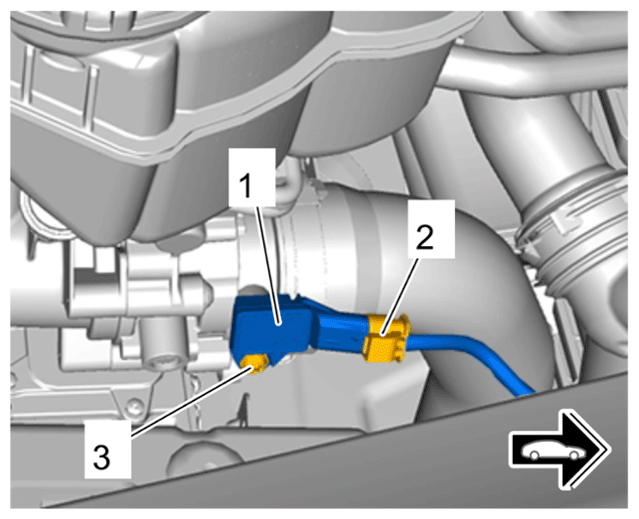

G15880810Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right pressure sensor
