Removing Right Recirculating Air Valve

Information

Use a ball-head hexagon socket (5 mm) with a minimum length of 100 mm for loosening and unscrewing the screws on the right recirculating air valve.

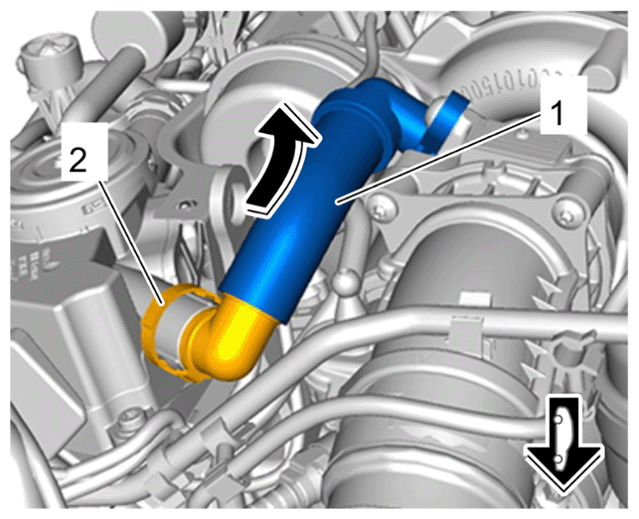

1. Release vent line -1-  on the oil separator -2-  to make space.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Vent line

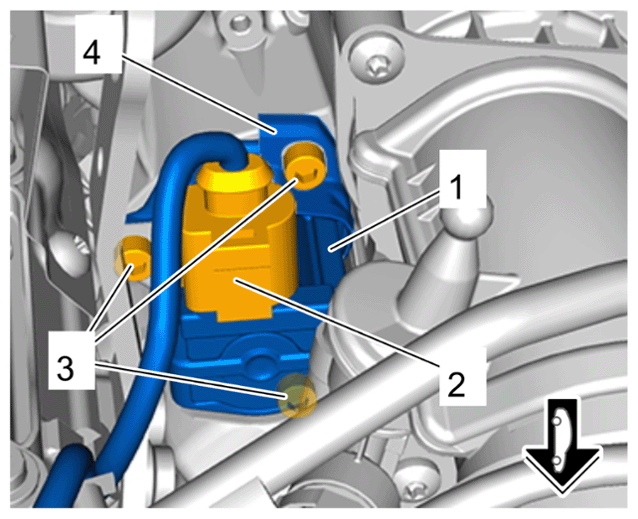

2. Remove right recirculating air valve -1-  .
   1. 2.1 Release and unplug electric plug connection -2-  .
   2. 2.2 Unscrew screws -3-  and remove recirculating air valve -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Recirculating air valve, right
