Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Des... |
Type |
Basic val... |
Toleranc... |
Toleranc... |
| Vacuum pump |
|
Tightening torque |
10 Nm (7.5 ftlb.) |
|
|

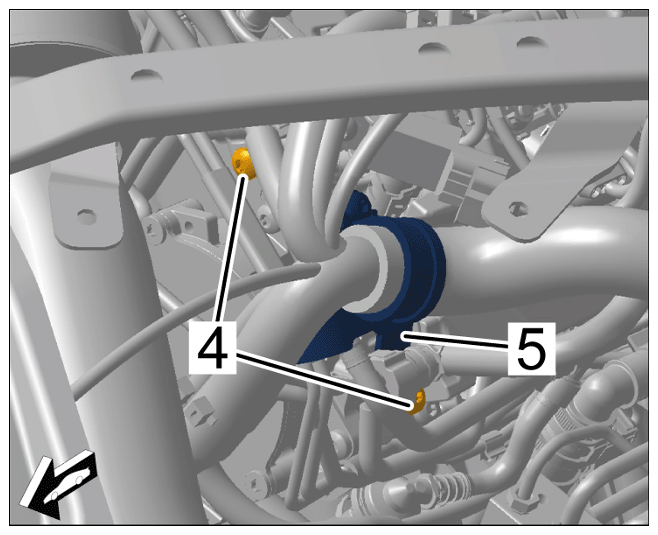

| Vacuum pump holder |
|
Item 4: Internal hexagon roundhead bolt |
8 Nm (5.8 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosening holder |
| Screw-type clamp for pressure hose |
|
Tightening torque |
5.5 Nm (4 ftlb.) |
+/-0.5 Nm (0.3 ftlb.) |
|
| |
|
|
|
|
|
