Removing Anti-Roll Bar Mount
WARNING: This page is about a different variant/trim than selected.
- Only for e-Hybrid vehicles:

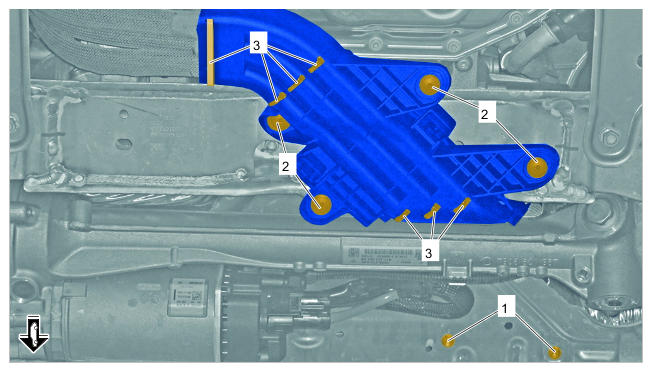

Loosen high-voltage line brackets.
- 1.1 Loosen screws -1-
for high-voltage line brackets on anti-roll-bar mount.
- 1.2 Remove expansion rivets -2-
.
- 1.3 Open tie-wrap -3-
and remove high-voltage line brackets from front-axle carrier.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Holder for high-voltage lines on anti-roll bar mount

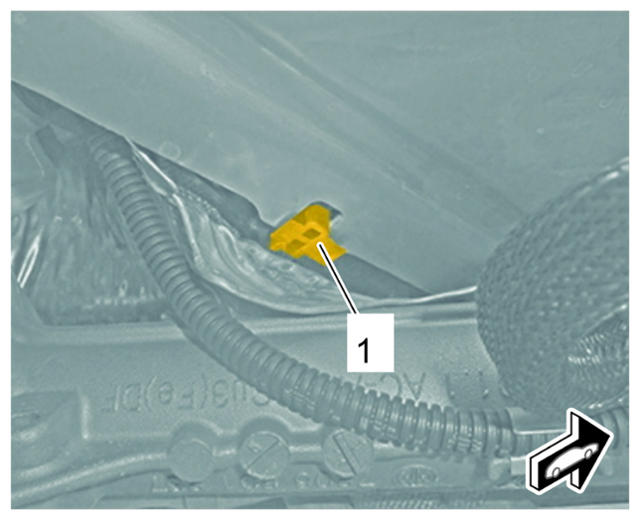

- Only for e-Hybrid vehicles:
Unclip cable holder for high-voltage lines -1-
from anti-roll-bar mount.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Cable holder for high-voltage lines on anti-roll bar mount

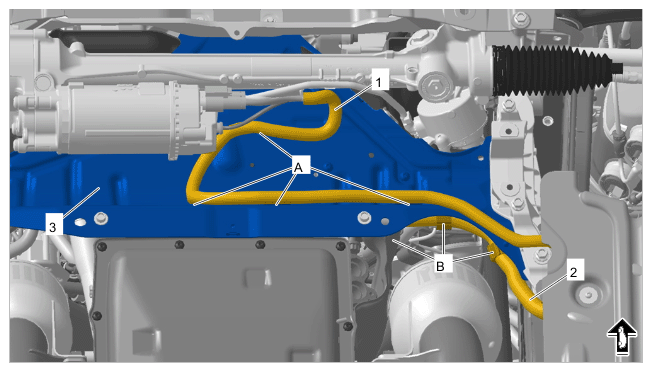

- Only for e-Hybrid vehicles:
Disconnect electric lines for steering -1-
and transmission -2-
at the anti-roll bar mount -3-
.
- 3.1 Unclip electric line for steering -1-
at -items A-
on the anti-roll bar mount -3-
.
- 3.2 Unclip electric line for transmission -2-
at -items B-
on the anti-roll bar mount -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric lines on anti-roll bar mount on e-Hybrid vehicle

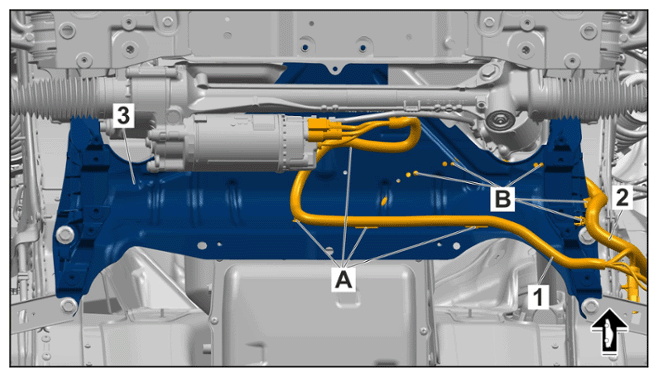

- Not for e-Hybrid vehicles:
Disconnect electric line for steering -1-
and transmission -2-
at the anti-roll bar mount -3-
.
- 4.1 Unclip electric line for steering -1-
at -items A-
on the anti-roll bar mount -3-
.
- 4.2 Unclip electric line for transmission -2-
at -items B-
on the anti-roll bar mount -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric lines on anti-roll bar mount
- Remove strut -1-
on both sides of the vehicle.
- 5.1 Unscrew screws -2 and 3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Strut mounting

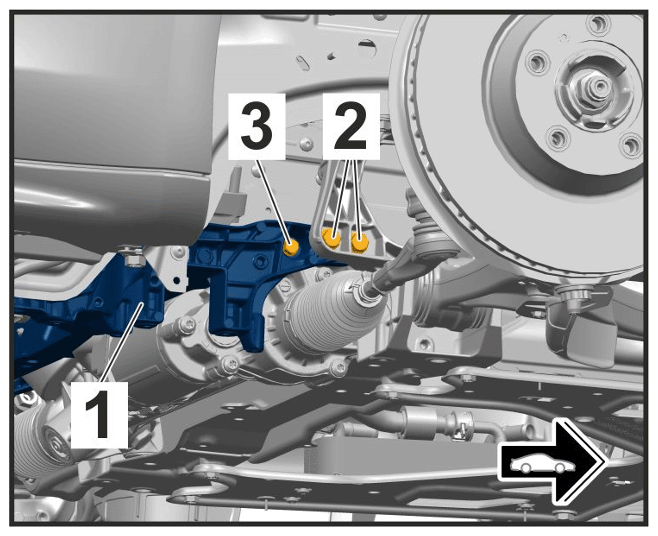

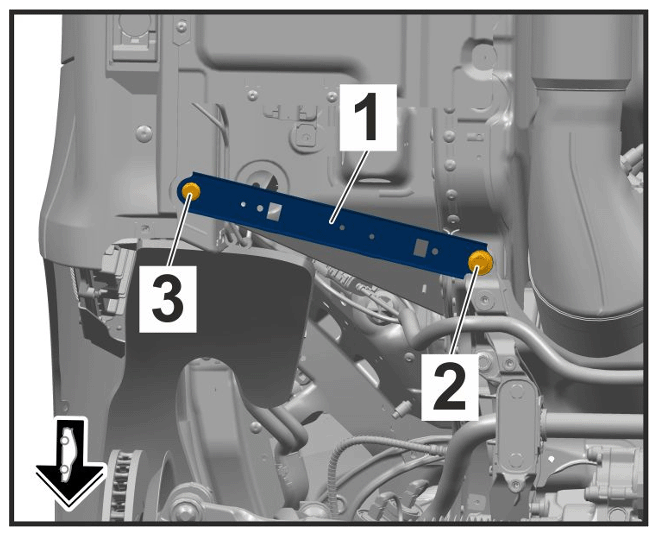

- Loosen anti-roll bar mount -1-
at the sides.
- 6.1 Unscrew screws -2-
on the front-axle carrier on both sides of the vehicle.
- 6.2 Only at the left (RHD vehicles)/only at the right (LHD vehicles):
Unscrew screw -3-
and counter at the nut on the steering gear at the same time.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Anti-roll bar mount at the sides

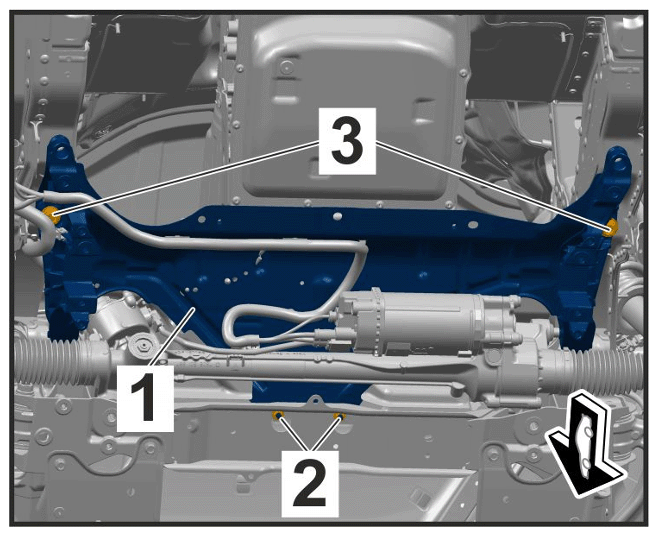

- Loosen anti-roll bar mount -1-
at the front and rear.
- 7.1 Unscrew screws -2-
on the front-axle carrier.
- 7.2 Unscrew screws -3-
on the body.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Anti-roll bar mount at front and rear

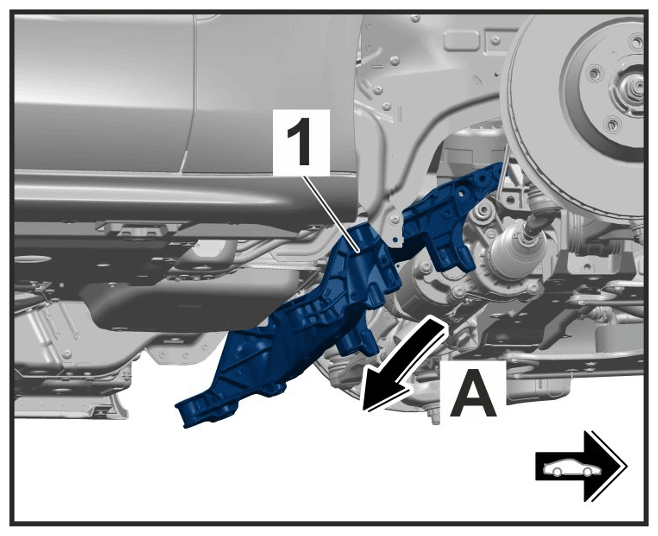

- Carefully guide anti-roll bar mount -1-
down and out -arrow A-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing anti-roll bar mount
