Removing Front Anti-Roll Bar
WARNING: This page is about a different variant/trim than selected.
- Remove wire harness for PDCC -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

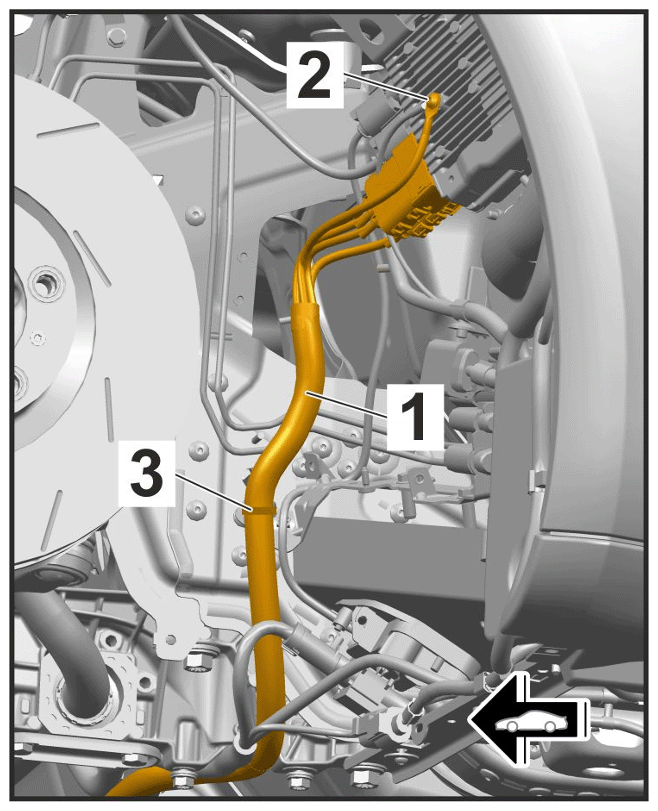

Mounting for PDCC wire harness
- 1.1 Unscrew fastening screw for ground line -2-
.
- 1.2 Loosen bracket -3-
.
- 1.3 Release and disconnect electric plug connections from the PDCC control unit in the sequence -1- to 5-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Sequence for disconnecting the electric plug connections
- Unscrew fastening screws -3-
for the connecting links -1-
on both sides of the vehicle.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Mounting for connecting link for anti-roll bar
- Remove anti-roll bar clamps -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

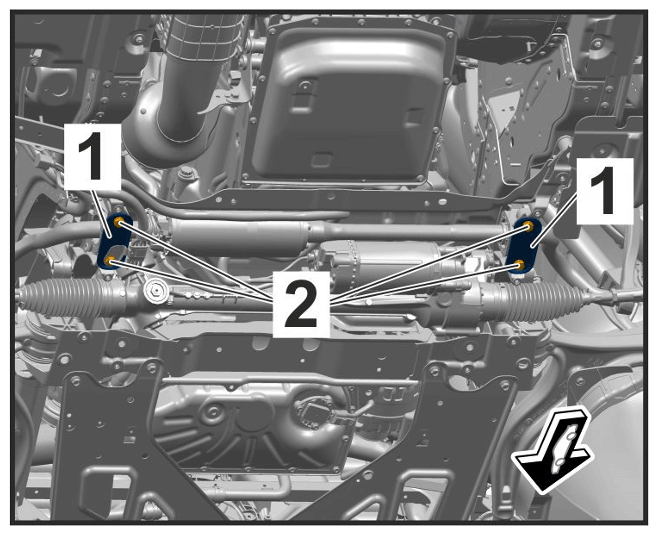

Mounting for anti-roll bar clamps
- 3.1 Unscrew fastening screws -2-
.
