Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Des Type Basic val Tolerance 1 Tolerance 2
Hose clamp (load group 1, on transmission side, large) Tighten using tool V.A.G 1682A Tightening torque 11 Nm (8 ftlb.)
G15861624Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on transmission side, small) Tighten using tool V.A.G 1682A Tightening torque 15.5 Nm (11.5 ftlb.)

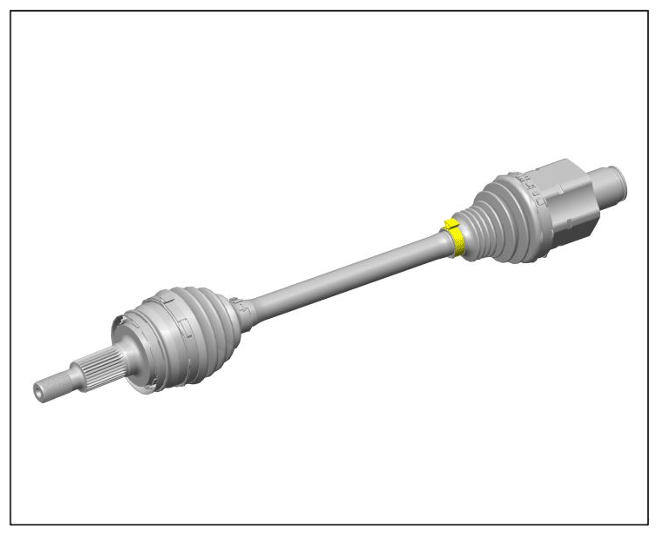

G15861625Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on wheel side, large) Tighten using tool V.A.G 1682A Tightening torque 21 Nm (16 ftlb.)
G15861626Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on wheel side, small) Tighten using tool V.A.G 1682A Tightening torque 15.5 Nm (11.5 ftlb.)
G15861627Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on transmission side, large) Tighten using tool V.A.G 1682A Tightening torque 11 Nm (8 ftlb.)

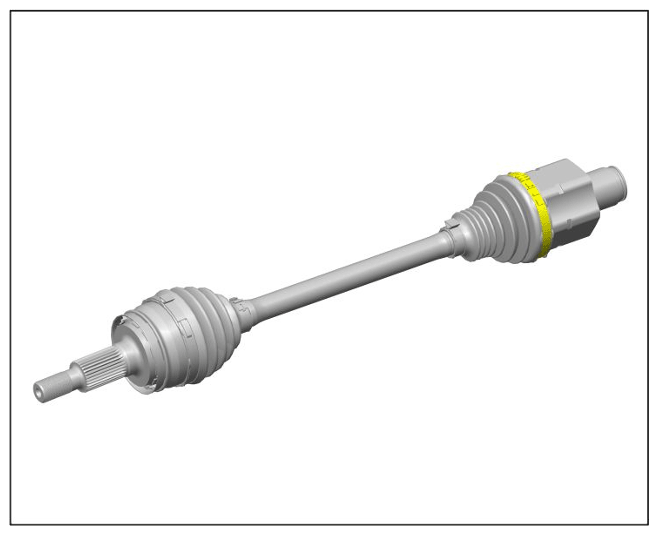

G15861628Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on transmission side, small) Tighten using tool V.A.G 1682A Tightening torque 15.5 Nm (11.5 ftlb.)
G15861629Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on wheel side, large) Tighten using tool V.A.G 1682A Tightening torque 21 Nm (16 ftlb.)
G15861630Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on wheel side, small) Tighten using tool V.A.G 1682A Tightening torque 10 Nm (7.5 ftlb.)
G15861631Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, small) - component can differ from illustration due to the wide range of variants
Quantity of grease on joint at the wheel side Load group 1 (l-no. 0J2/0J3) Weight 90 g + 10g
Quantity of grease on joint at the transmission side Load group 1 (l-no. 0J2/0J3) Weight 99 g + 10g
Quantity of grease on joint at the wheel side Load group 2 (l-no. 0J5/0J8) Weight 127 g + 10g
Quantity of grease on joint at the transmission side Load group 2 (l-no. 0J5/0J8) Weight 119g + 10g
