Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic values	Tolerance 1
Front axle carrier to body front	M12 x 1.5 x 90 thread/always replace bolts following removal.	Initial tightening	70 Nm (51.6 ftlb.)
Front axle carrier to body front	M12 x 1.5 x 90 thread/always replace bolts following removal.	Final tightening	+ 180°
Front axle carrier to rear body	Hexagon-head bolt, M10 x 45	Tightening torque	50 Nm (36.9 ftlb.)
Mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Initial tightening	70 Nm (51.6 ftlb.)
Mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Final tightening	+ 180°
Strut with mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Initial tightening	70 Nm (51.6 ftlb.)
Strut with mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Final tightening	+ 180°
Strut to body	Hexagon-head bolt, M10 x 25/always replace bolts following removal.	Initial tightening	50 Nm (36.9 ftlb.)
Strut to body	Hexagon-head bolt, M10 x 25/always replace bolts following removal.	Final tightening	+ 45°
Heat insulation on longitudinal member	Item 2: Hexagon nut	Tightening torque	2.5 Nm (1.8 ftlb.)

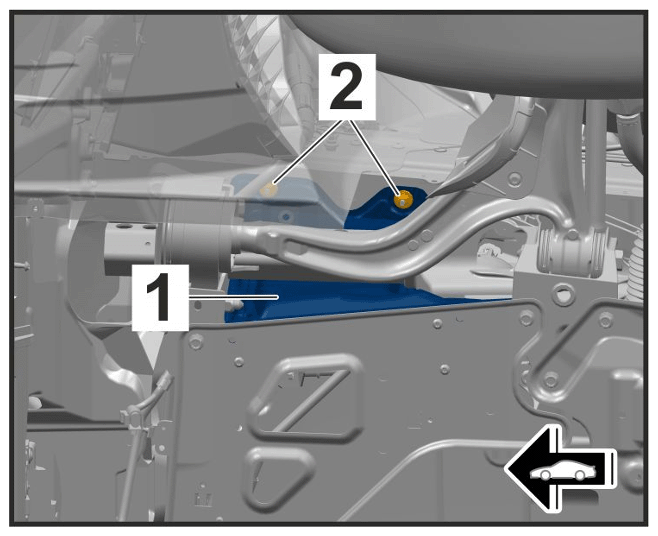

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening heat insulation (diesel engines)
Steering column to steering column Centre (universal joint)	Hexagon roundhead bolt, M8 x 30/always replace bolt following removal!	Final tightening torque angle	+ 90°
Steering column Centre to power-steering gear (universal joint)	Hexagon roundhead bolt, M8 x 30/always replace bolt following removal!	Initial tightening	20 Nm (15 ftlb.)
Ground line to front PDCC (EAWS) control unit	Item 1: Internal hexagon roundhead bolt, M5	Tightening torque	5.6 Nm (4 ftlb.)

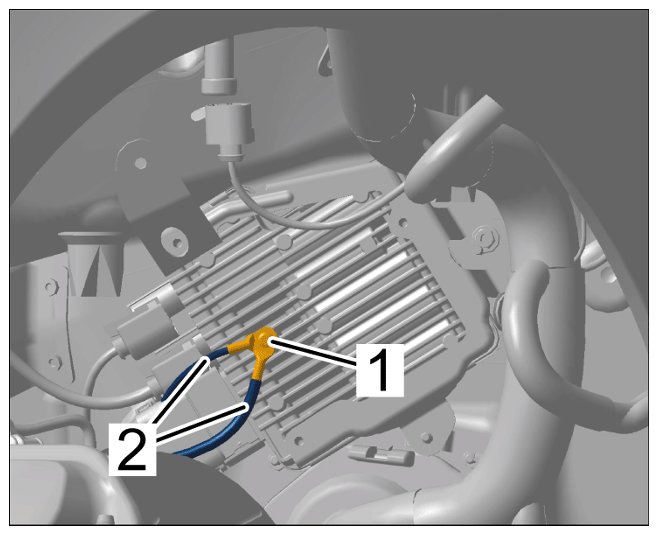

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Disconnecting ground lines
Screws securing engine mount to bracket	M12 x 1.5 x 60/replace	Initial tightening	70 Nm (52 ftlb.)
Screws securing engine mount to bracket		Final tightening	+ 90°
Fastening screws securing engine mount to bracket	M10 x 45	Tightening torque	55 Nm (41 ftlb.)
Fastening screw securing engine mount to front axle	M12 x 60 x 1.5	Initial tightening	70 Nm (52 ftlb.)
Fastening screw securing engine mount to front axle	M12 x 60 x 1.5	Final tightening	+ 90°
Screw-type clamp for pressure hose		Tightening torque	5.5 Nm (4 ftlb.)	+/- 0.5 Nm (0.3 ftlb.)
