Installing Strut (Dome Strut)

1. Install strut (dome strut) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

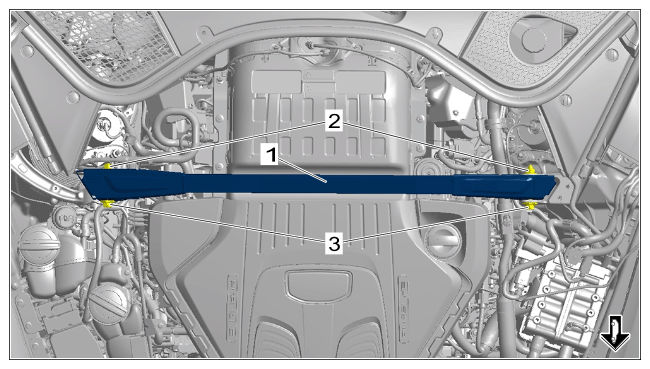

   Strut (dome strut)

   1. 1.1 Position strut (dome strut) -1-  .
   2. 1.2 Insert new screws -3-  .
   3. 1.3 Fit and tighten new nuts -2-  holding them against the screws -3-  .

      > Initial tightening 50 Nm (37 ftlb.)

      > Final tightening + 90°

2. Install side struts -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

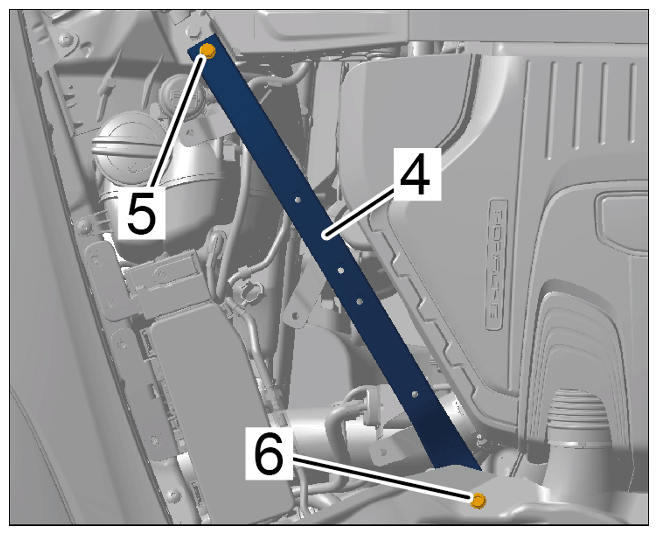

   Mounting for side strut

   1. 2.1 Tighten new screws -5-  . >Initial tightening 20 Nm (15 ftlb.)  > Final tightening + 90°
   2. 2.2 Tighten -6-  screws. >Tightening torque 20 Nm (15 ftlb.)
3. Clip in -1-  sensor -3-  and hoses -2-  to holder -Arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

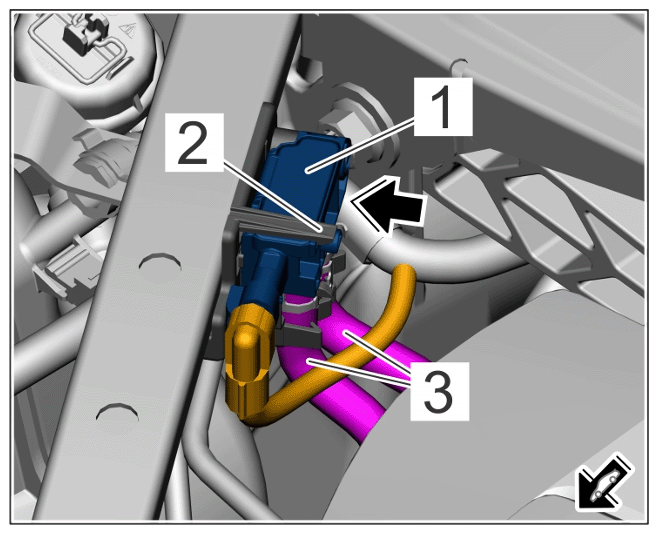

Sensor on side strut
