Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance
A-strut to cowl panel	Hexagonhead bolt, M10	Tightening torque	40 Nm (30 ftlb.)
A-strut to cross panel	Internal hexagon roundhead bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)
A-strut to body	Hexagonhead bolt, M8 x 1.25 x 35/always replace bolts following removal	Initial tightening	20 Nm (15 ftlb.)
A-strut to body	Hexagonhead bolt, M8 x 1.25 x 35/always replace bolts following removal	Final tightening	90°
Spring strut to body	Item 4: Hexagon nut, M10/always replace nuts following removal!	Initial tightening	40 Nm (30 ftlb.)

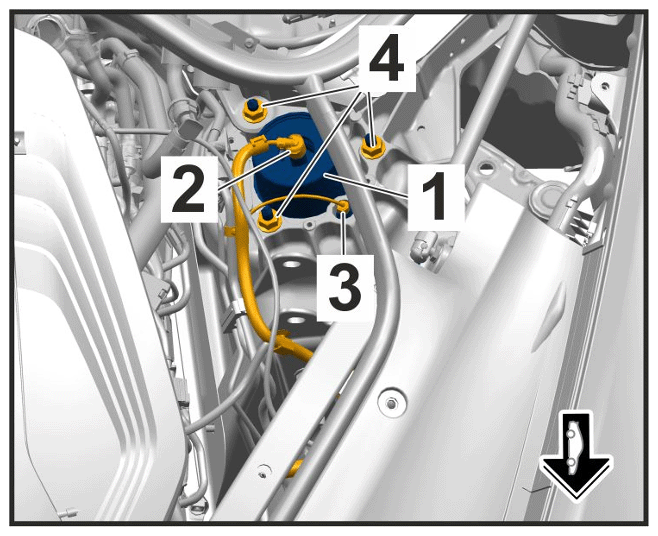

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air-spring strut, top
Spring strut to body	Item 4: Hexagon nut, M10/always replace nuts following removal!	Final tightening	+ 45°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air-spring strut, top
Screw securing upper part of plenum panel at the centre to Astrut	Item 1	Tightening torque	8 Nm (6 ftlb.)	+/- 15 %

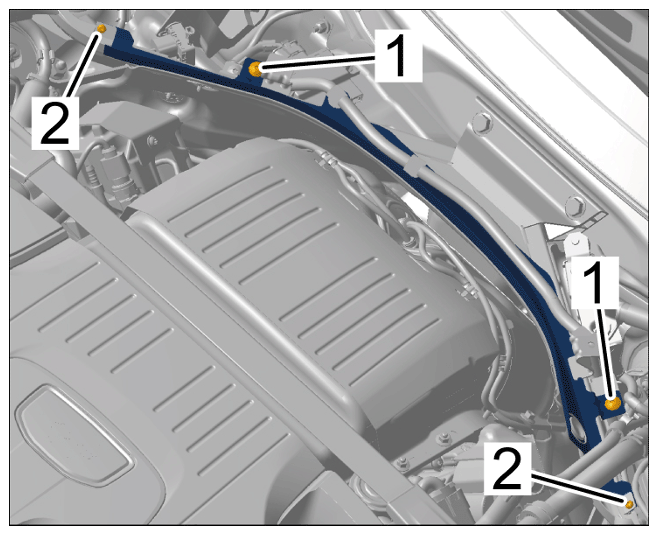

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for A-strut
Screw securing upper part of plenum panel at the side to centre plenum panel	Item 2	Tightening torque	4 Nm (3 ftlb.)	+/- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for A-strut
Screw securing upper part of plenum panel at the side to spring strut mount	Item 7	Tightening torque	8 Nm (6 ftlb.)	+/- 15 %

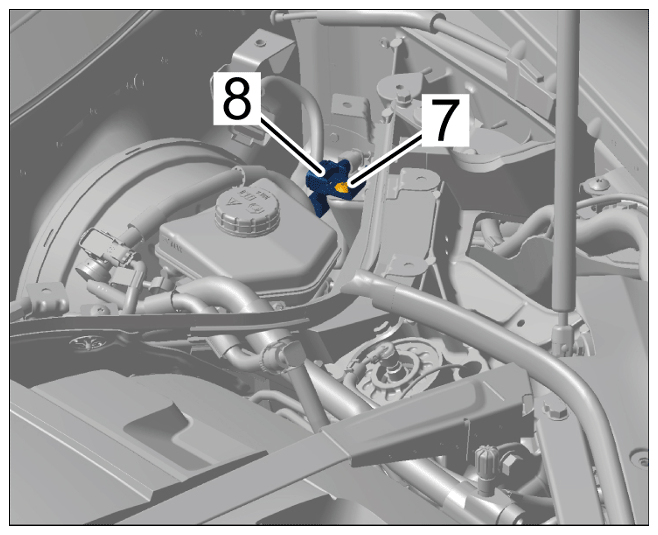

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing side plenum panel to spring strut mount
