Installing Front Anti-Roll Bar

WARNING: This page is about a different variant/trim than selected.

Position anti-roll bar in installation position.
Information

Align anti-roll-bar mount -1- as shown -Illustration- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

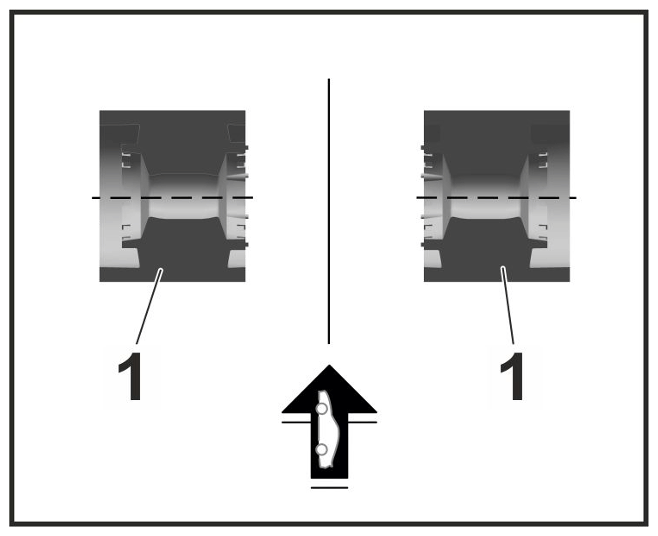

Aligning anti-roll-bar mount
Install anti-roll bar clamps -1- with anti-roll bar mounts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

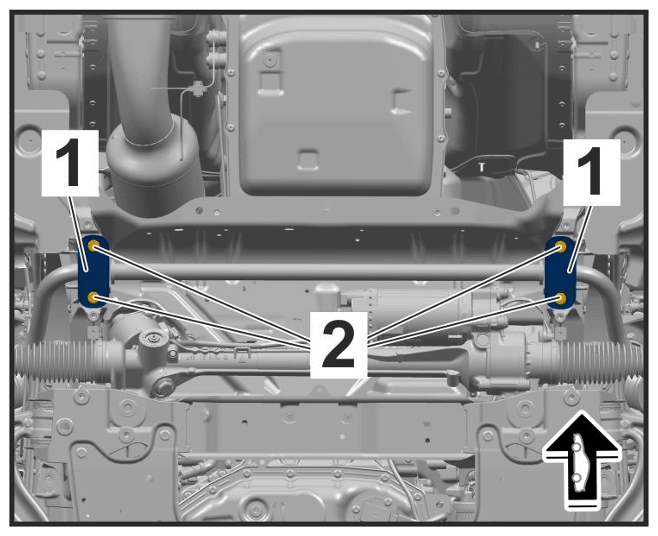

Mounting for anti-roll bar clamps
1. 2.1 Screw in fastening screws -2- (do not tighten!).
Install threaded joint -3- (do not tighten!).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

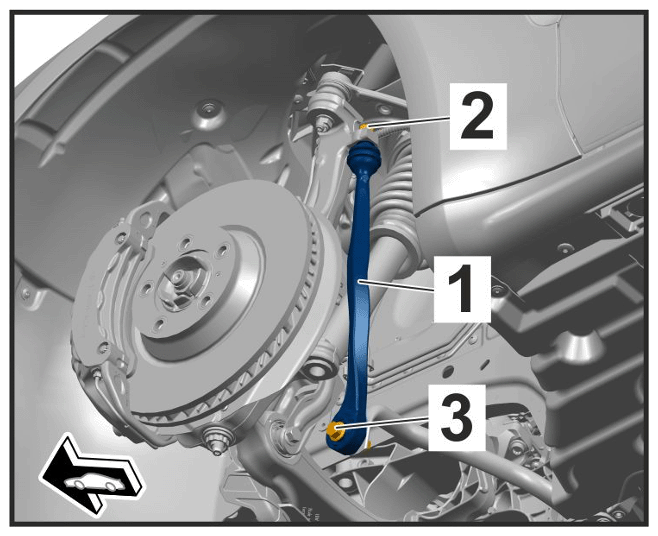

Mounting for connecting link for anti-roll bar

Tighten threaded joints in zero position.

WARNING: Wheel bearing housing raised incorrectly

Risk of crushing
Risk of damage to components
→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

Threaded joints must only be tightened in zero position to prevent warping in the bearings.

4.1 Lift the wheel bearing housing as far as required using lifting equipment (e.g. >VAS 6931 - Transmission and Engine Jack ) until the lower trailing arm is horizontal. >Zero position (shown on rear axle as an example)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Zero position (shown on rear axle as an example)

4.2 Tighten fastening screws -2- . >Initial tightening 50 Nm (37 ftlb.) > Final tightening + 30°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for anti-roll bar clamps

4.3 Tighten threaded joint -3- . >Initial tightening 70 Nm (52 ftlb.) > Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for connecting link for anti-roll bar
