Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance Tolerance
Mounting plate for wheel bearing to wheel bearing housing Item 2: Hexagonhead bolt, M8 x 35/always replace bolts following removal! Initial tightening 20 Nm (15 ftlb.)
G15859042Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting plate on wheel bearing housing

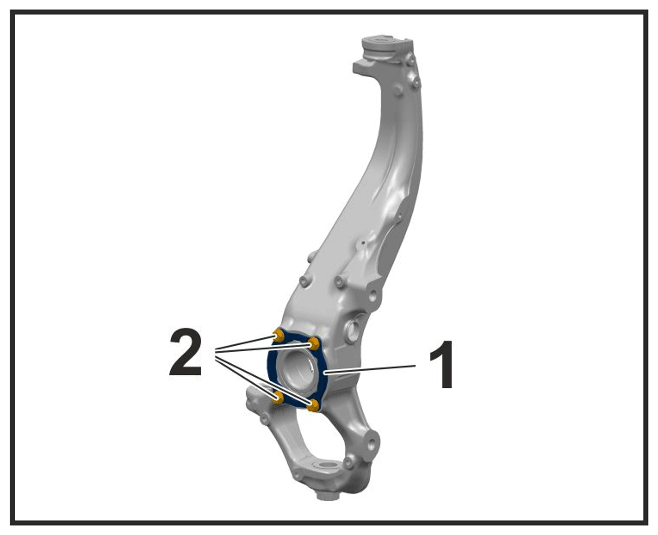

Mounting plate for wheel bearing to wheel bearing housing Item 2: Hexagonhead bolt, M8 x 35/always replace bolts following removal! Final tightening + 90°
G15859043Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting plate on wheel bearing housing
Heating wheel bearing housing Before pressing in wheel bearing Temperature 80°C
