Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance Tolerance
Hose clamp (load group 1, on transmission side, large) Tighten using tool V.A.G 1682A Tightening torque 11 Nm (8 ftlb.)

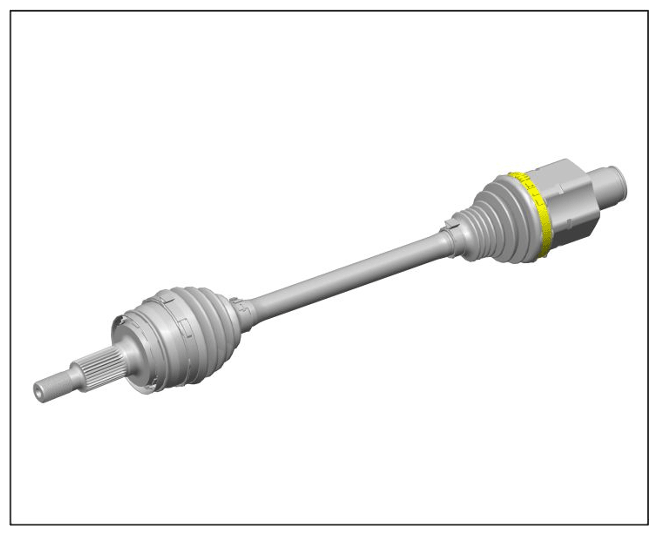

G15858964Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on transmission side, small) Tighten using tool V.A.G 1682A Tightening torque 15.5 Nm (11.5 ftlb.)
G15858965Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on wheel side, large) Tighten using tool V.A.G 1682A Tightening torque 21 Nm (16 ftlb.)
G15858966Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on wheel side, small) Tighten using tool V.A.G 1682A Tightening torque 15.5 Nm (11.5 ftlb.)
G15858967Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on transmission side, large) Tighten using tool V.A.G 1682A Tightening torque 11 Nm (8 ftlb.)
G15858968Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on transmission side, small) Tighten using tool V.A.G 1682A Tightening torque 15.5 Nm (11.5 ftlb.)

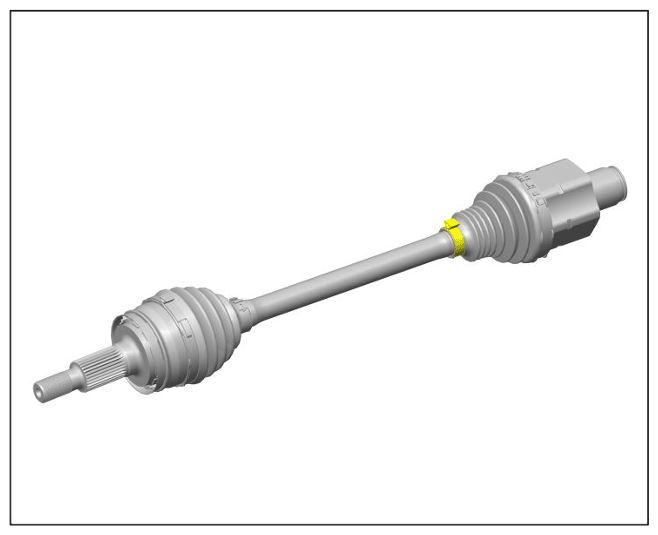

G15858969Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on transmission side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on wheel side, large) Tighten using tool V.A.G 1682A Tightening torque 21 Nm (16 ftlb.)
G15858970Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on wheel side, small) Tighten using tool V.A.G 1682A Tightening torque 10 Nm (7.5 ftlb.)
G15858971Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamp (on wheel side, small) - component can differ from illustration due to the wide range of variants
Quantity of grease on joint at the wheel side Load group 1 (I-no. 0J2/0J3) Weight 90 g + 10 g
Quantity of grease on joint at the transmission side Load group 1 (I-no. 0J2/0J3) Weight 99 g + 10 g
Quantity of grease on joint at the wheel side Load group 2 (I-no. 0J5/0J8) Weight 127 g + 10 g
Quantity of grease on joint at the transmission side Load group 2 (I-no. 0J5/0J8) Weight 119 g + 10 g
