Replacing Lower Trailing Arm

Information

Deformation of the trailing arm can be checked using a printable template.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

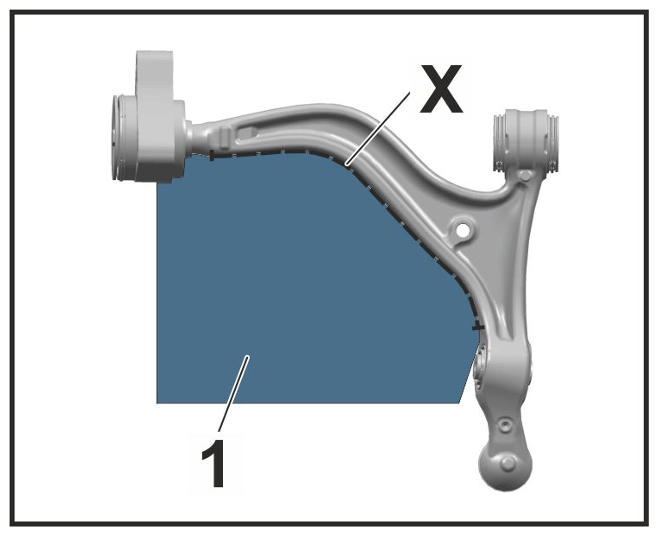

Template for checking deformation

• The template can be found in the PIWIS information system under Workservice information - 4017 Lower trailing arm template.
• Print the template, check printout based on the control dimension, copy the template to a piece of cardboard and cut it out in accordance with specifications.
• If the contour of the trailing arm in the measuring area -X- deviates from the contour of the template -1- , the trailing arm must be replaced.

1. Convert control arm spoiler -1-  to suit the new trailing arm.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

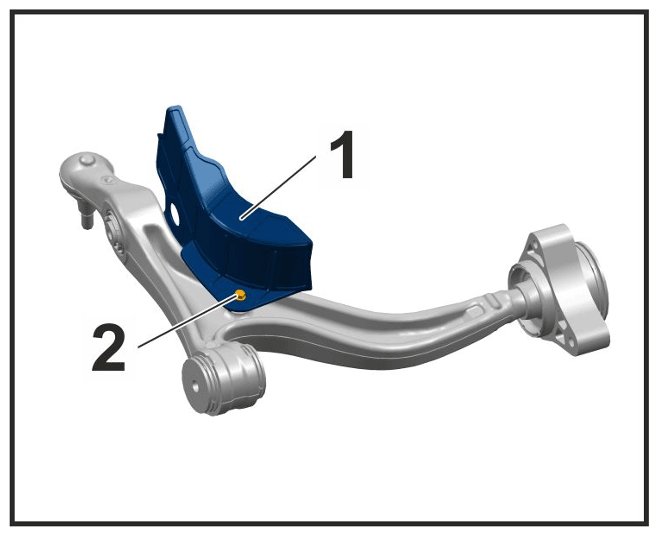

   Control arm spoiler mounting

   1. 1.1 Remove threaded joint -2-  and install it for the new trailing arm. >Tightening torque 8 Nm (6 ftlb.)
